Multi-Ribbed Belt - 10 Ribs, 1.85-inch Top Width, 0.216-inch Thickness

Condition: New
Brand: Gates
MPN: 795L10
MPN Xref:795L10

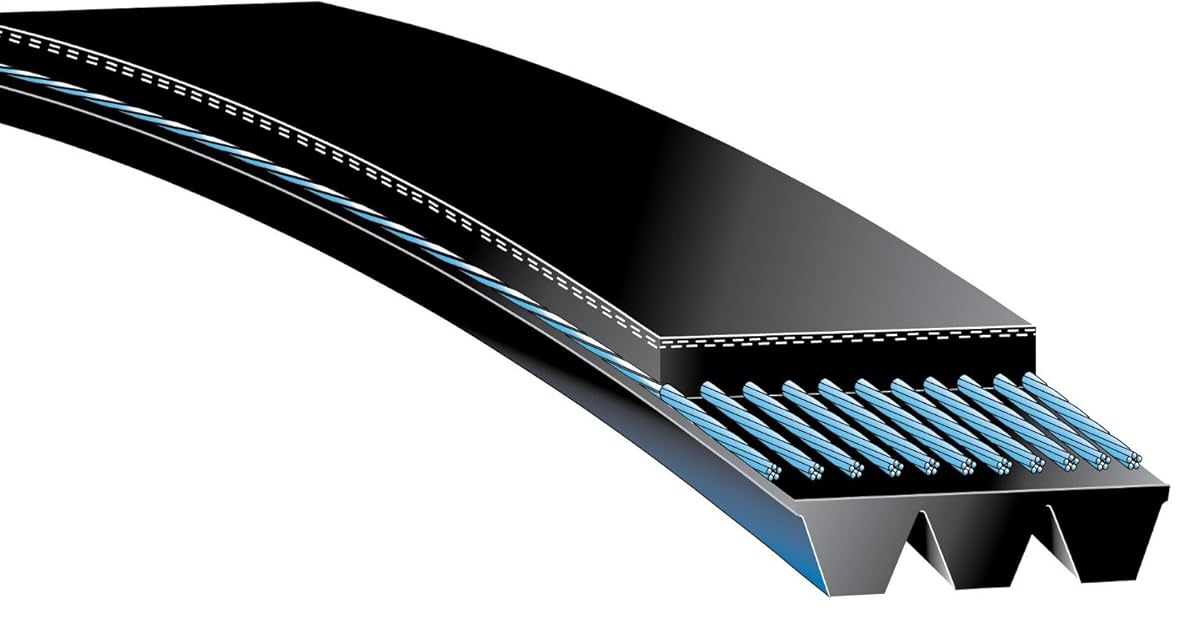

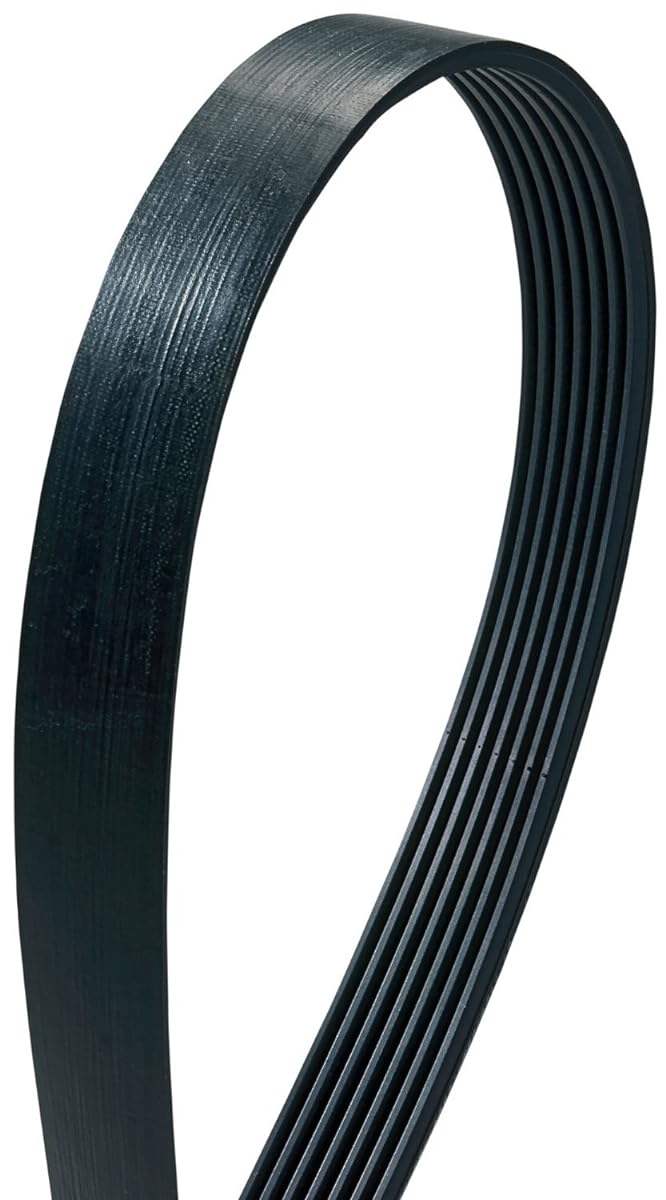

This multi-ribbed belt is made of polychloroprene material and is designed for efficient power transmission. It has a top width of 1.85 inches and a thickness of 0.216 inches (5mm). With a maximum of 105 ribs, it provides reliable performance and durability. The belt has an effective length of 79.59 inches and an outside circumference of 80.42 inches. It features a groove angle of 41 degrees and is suitable for a temperature range of -34 to 82°F. The belt is constructed with a polyester core cord for added strength.

Section	PL
Effective length (in)	79.59
Outside circumference (in)	80.42
Angle	41
Max no of ribs	105
Thickness	0.216
Number of ribs	10
Top width (in)	1.85
Top Width	48 mm
Outside Length	2042 mm
V-Belt Section	PL
Item	Belt
Number of Ribs	10
Groove Angle	41 Degrees
Material	Polychloroprene
Construction	Multi Ribbed Belt
Temp. Range	-34 to 82?F
Core Cord	Polyester
