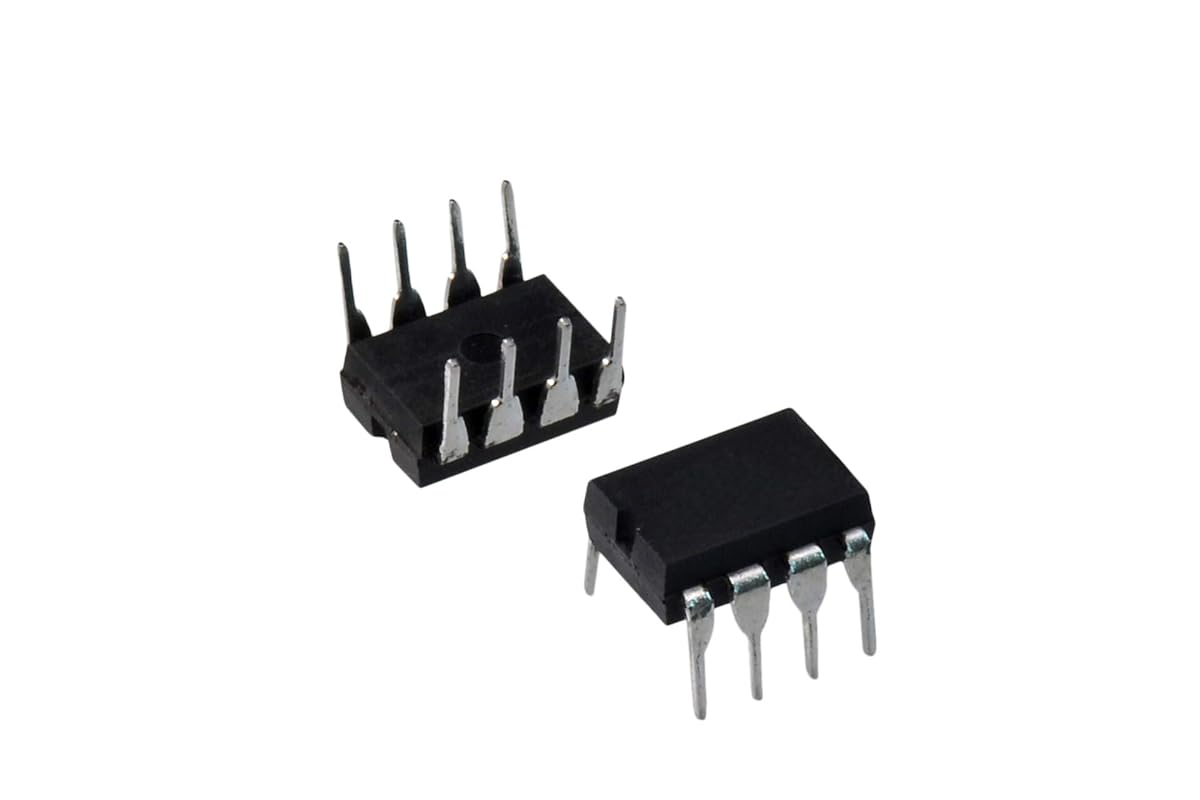

CMOS 2 Circuit 8DIP Integrated Circuit
CMOS 2 Circuit 8DIP Integrated Circuit
Regular price
$0.56 USD
Regular price
Sale price
$0.56 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Condition: New
Brand: Texas Instruments
MPN: TLC27M2CP
MPN Xref:TLC27M2CP
IC CMOS 2 CIRCUIT 8DIP, Slew Rate: 0.43V/?s, Operating Temp: 0...70?C, Voltage Supply Range: ? 1.5...8V DC/
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Texas Instruments
MPN: TLC27M2CP
MPN Xref:TLC27M2CP
IC CMOS 2 CIRCUIT 8DIP, Slew Rate: 0.43V/?s, Operating Temp: 0...70?C, Voltage Supply Range: ? 1.5...8V DC/
| Type of integrated circuit | operational amplifier |
| Bandwidth | 400kHz |
| Mounting | THT |
| Number of channels | 2 |
| Case | DIP8 |
| Slew rate | 0.43V/?s |
| Operating temperature | 0...70?C |
| Voltage supply range | ? 1.5...8V DC/ |
| Manufacturer Product Number | TLC27M2CP |
| Description | IC CMOS 2 CIRCUIT 8DIP |
| Manufacturer Standard Lead Time | 6 Weeks |
| Detailed Description | CMOS Amplifier 2 Circuit 8-PDIP |
| Category | Integrated Circuits (ICs) |
| Series | TLC27M2 |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 0.43 V/us |
| Gain Bandwidth Product | 635 kHz |
| Current - Input Bias | 0.7 pA |
| Voltage - Input Offset | 1.1 mV |
| Current - Supply | 285?A (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | 0?C ~ 70?C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | TLC27M2 |
| Package/Case | DIP-8 |
| Product Categories | Op Amps |
| RoHs Status | Green |
| Marking Code | TLC27M2CP |
| In-stock | 0 |
| Mounting Style | Through Hole |
| Shutdown | No |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Minimum Operating Temperature | 0 C |
| Factory Pack Quantity | 50 |
| Supply Current | 0.6 mA |
| Technology | LinCMOS |
| Voltage Gain dB | 104.61 dB |
| Type | SemiConductor |
| I(io) Max. (A) | 0.1p- |
| V(io) Max. (V) | 10m |
| PD Max. (W) | 725m |
| Inp Bias Curr. Max. (A) | 0.7p- |
| Unity Gain BW (Hz) | 635k- |
| Com Mode Inp Range (VICR) | 9.2- |
| Temp Coef. of VIO | 2.1u- |
| Oper. Temp (?C) Min | 0 |
| Oper. Temp (?C) Max. | 70 |
| Pinout Equivalence Number | 8-582 |
| No. of Pins | 8 |
| Surface Mounted Yes/No | YES |
