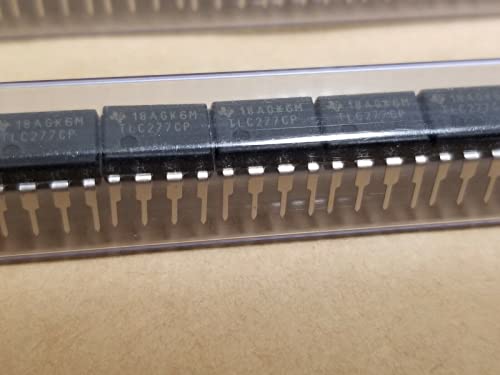

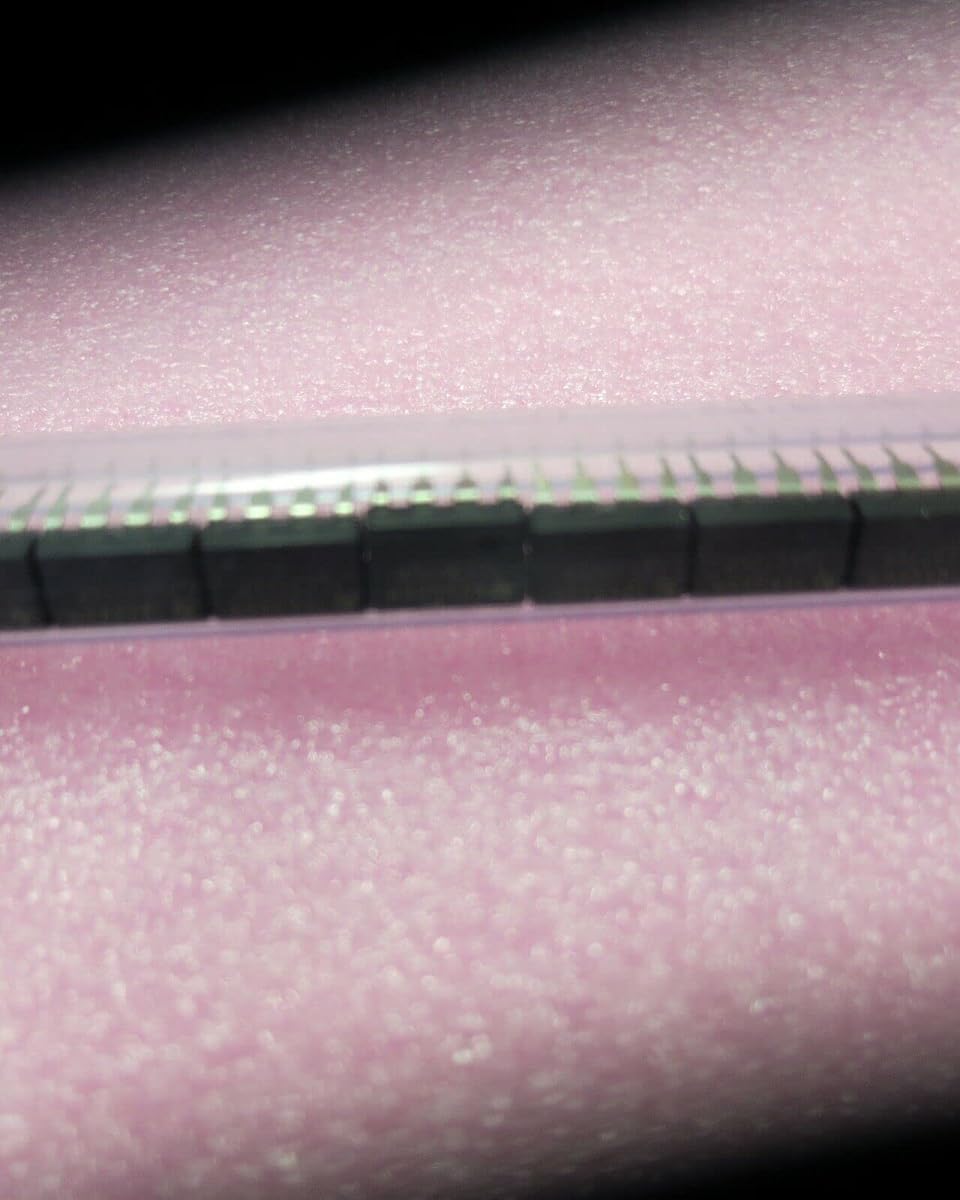

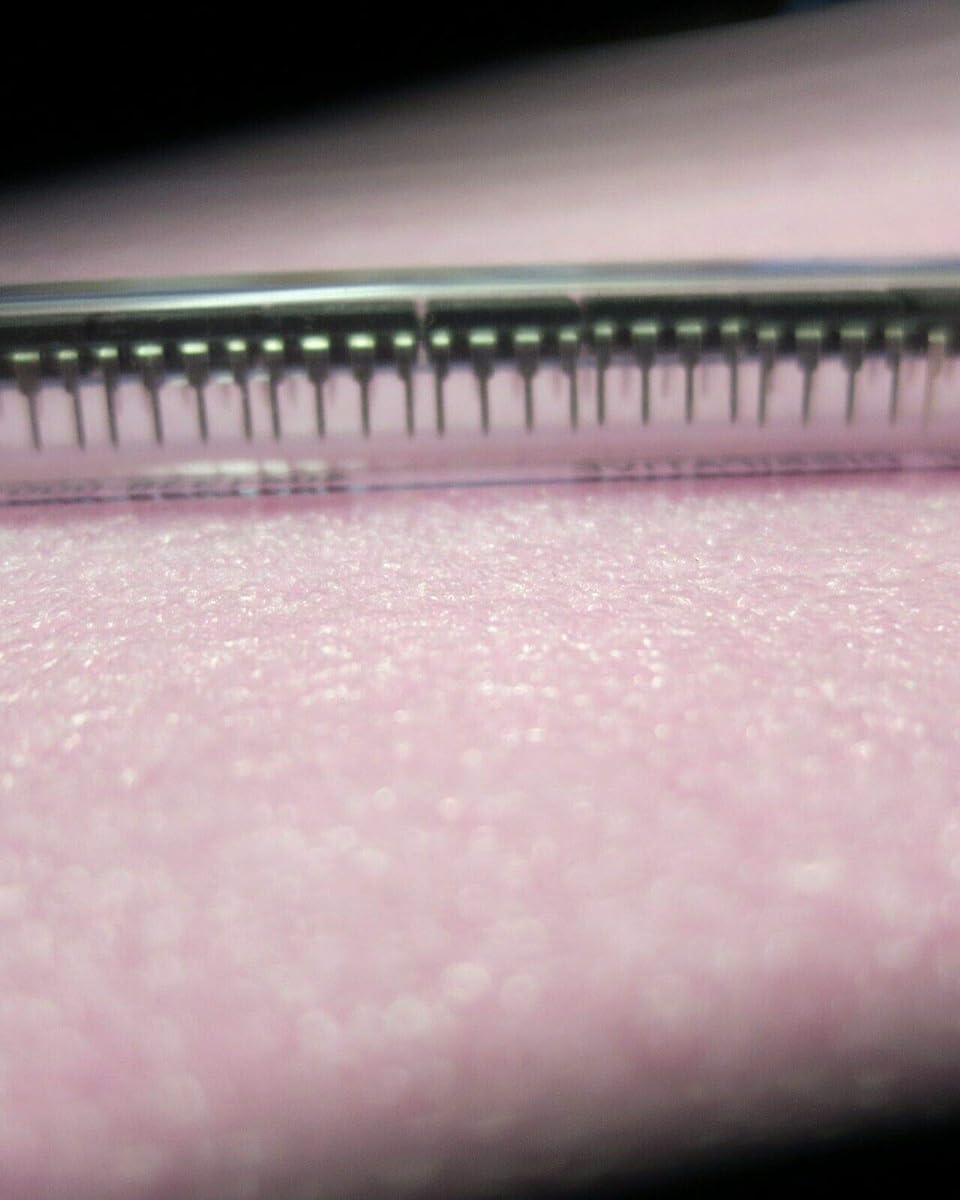

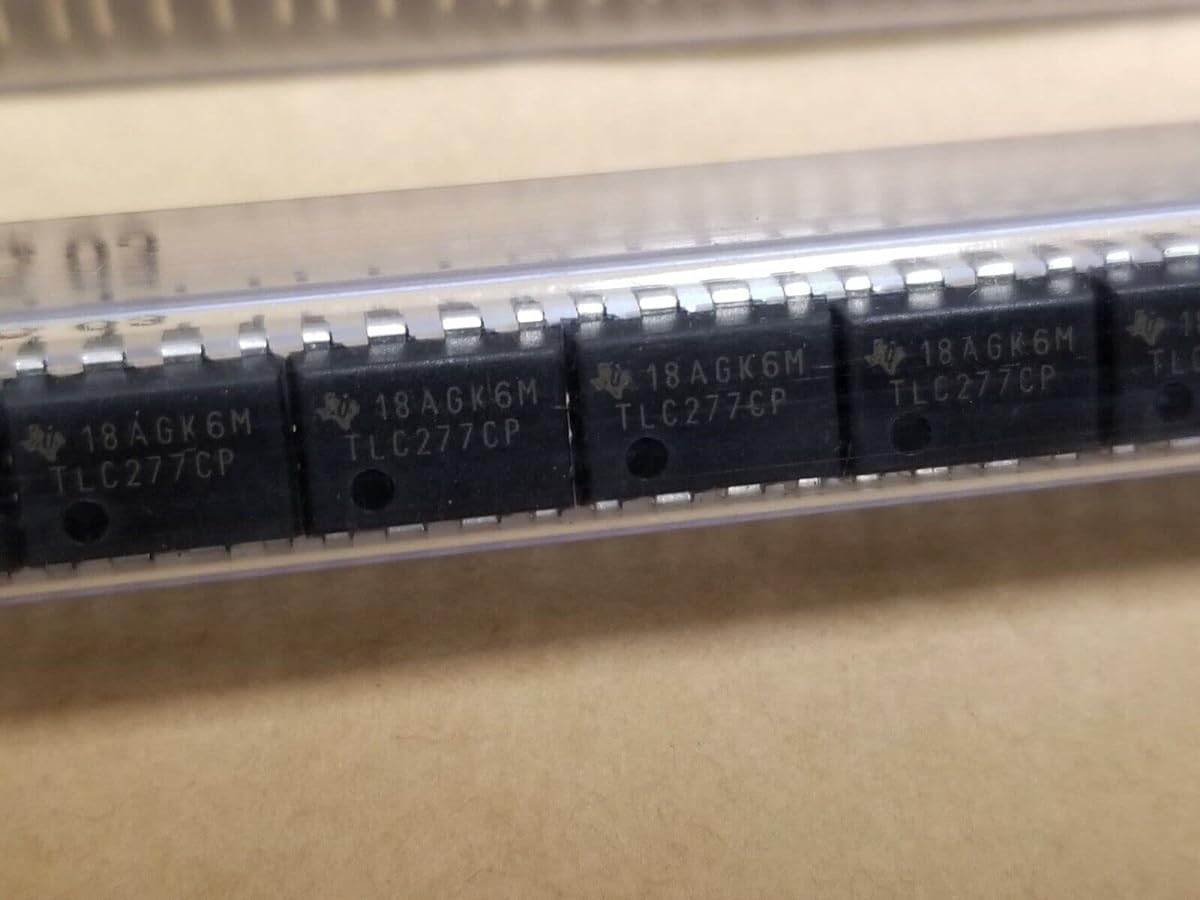

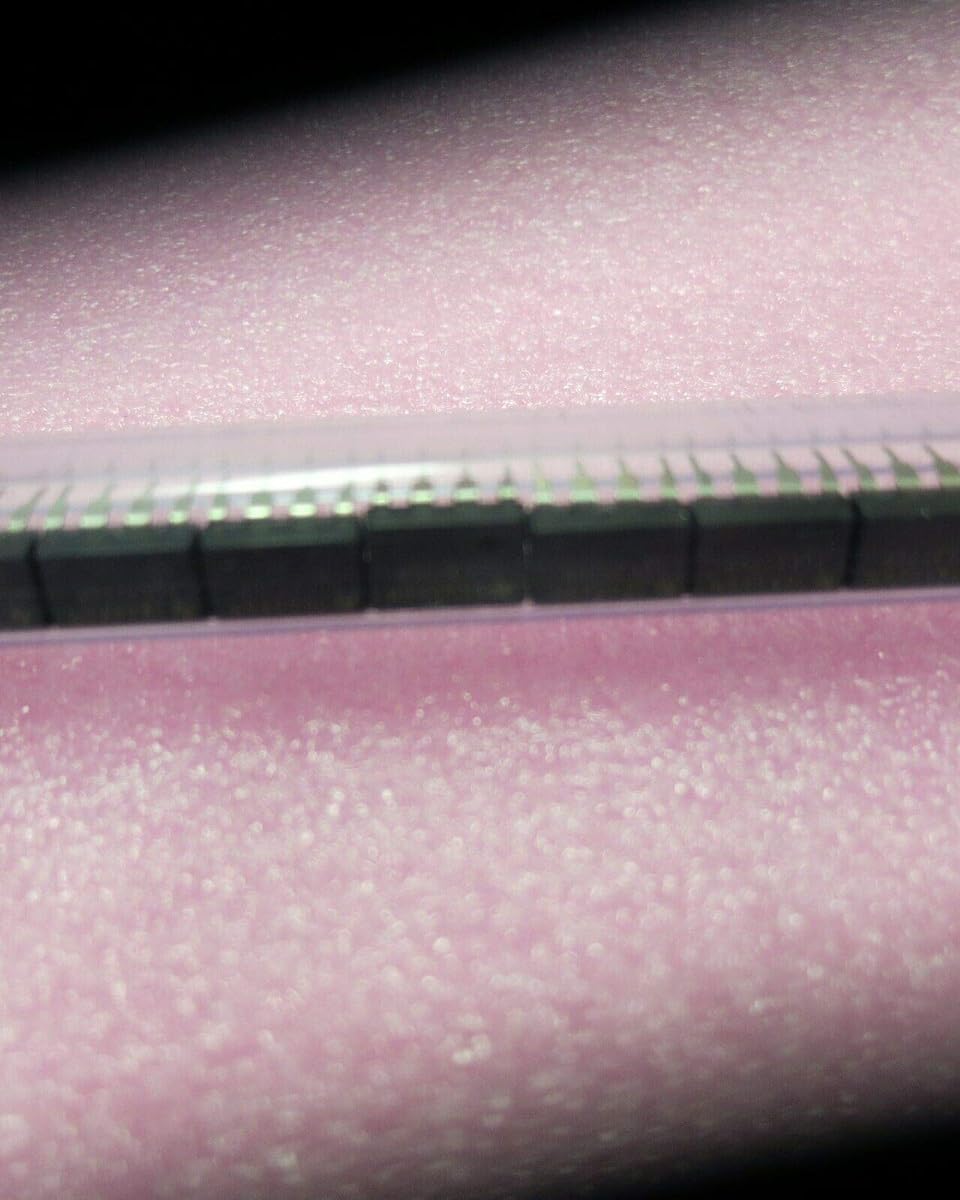

Integrated Circuit TLC277 - Low Offset Voltage Amplifier
Integrated Circuit TLC277 - Low Offset Voltage Amplifier
Regular price
$1.26 USD
Regular price
Sale price
$1.26 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 7 left
Couldn't load pickup availability
Condition: New
Brand: Texas Instruments
MPN: TLC277CP
MPN Xref:TLC277CP, 35K4977, 296-1828-5-ND, 428464, 8454191, 595-TLC277CP
This is a description of the integrated circuit TLC277. It is a low offset voltage amplifier with CMOS technology. It has 2 circuits and is in a 8-DIP package.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Texas Instruments
MPN: TLC277CP
MPN Xref:TLC277CP, 35K4977, 296-1828-5-ND, 428464, 8454191, 595-TLC277CP
This is a description of the integrated circuit TLC277. It is a low offset voltage amplifier with CMOS technology. It has 2 circuits and is in a 8-DIP package.
| device package type | 8 pin dip |
| package | TUBE |
| item per pack | 1 |
| Type | Integrated Circuit |
| EAN | 5052406767686 |
| Case | DIP8 |
| R(in) (?) | 10T |
| I(io) Max. (A) | 300p |
| V(io) Max. (V) | 1.9m |
| PD Max. (W) | 1.0 |
| Inp Bias Curr. Max. (A) | 600p |
| Unity Gain BW (Hz) | 2.3M- |
| Com Mode Inp Range (VICR) | 9.0- |
| Temp Coef. of VIO | 2.2u- |
| Oper. Temp (?C) Min | 0 |
| Oper. Temp (?C) Max. | 70 |
| Pinout Equivalence Number | 8-582 |
| No. of Pins | 8 |
| Surface Mounted Yes/No | NO |
| Type of integrated circuit | operational amplifier |
| Bandwidth | 2MHz |
| Mounting | THT |
| Number of channels | 2 |
| Slew rate | 3.6V/?s |
| Operating temperature | -55...125?C |
| Input offset voltage | 10mV |
| Voltage supply range | ? 1.5...8V DC/ |
| Category | Integrated Circuits (ICs) |
| Series | LinCMOS? |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 5.3V/?s |
| Gain Bandwidth Product | 1.7 MHz |
| Current - Input Bias | 0.7 pA |
| Voltage - Input Offset | 1.1 mV |
| Current - Supply | 1.9mA (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | 0?C ~ 70?C (TA) |
| Mounting Type | Through Hole |
| Package / Case | PDIP-8 |
| Supplier Device Package | 8-PDIP |
| Base Product Number | TLC277 |
| Manufacturer Product Number | TLC277CP |
| Description | IC CMOS 2 CIRCUIT 8DIP |
| Manufacturer Standard Lead Time | 6 Weeks |
| Detailed Description | CMOS Amplifier 2 Circuit 8-PDIP |
| Package/Case | DIP-8 |
| Product Categories | Op Amps |
| RoHs Status | Lead free / RoHS Compliant |
| Marking Code | TLC277CP |
| In-stock | 0 |
| Mounting Style | Through Hole |
| Shutdown | No |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Minimum Operating Temperature | 0 C |
| Factory Pack Quantity | 50 |
| Supply Current | 4 mA |
| Technology | LinCMOS |
| Voltage Gain dB | 87.23 dB |
| device function | voltage amplifier |
