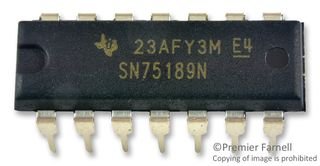

14-Pin DIP Line Receiver for RS232 Interface IC
14-Pin DIP Line Receiver for RS232 Interface IC
Regular price
$0.18 USD
Regular price
Sale price
$0.18 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 10 left
Couldn't load pickup availability
Condition: New
Brand: Texas Instruments
MPN: SN75189N
MPN Xref:SN75189N, 526587, 2382428, 16364590, 17379878, TI01-0002769, 1103034, 08F8140, 645821

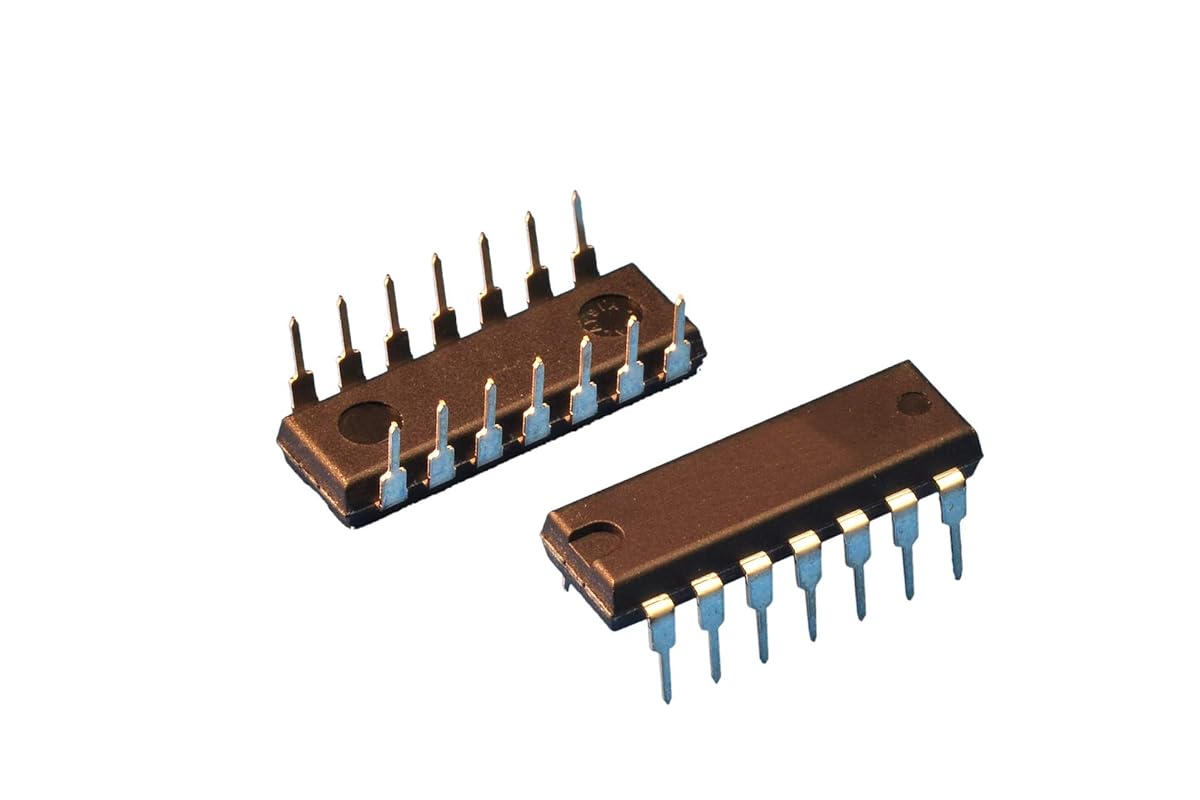

This is a 14-pin DIP integrated circuit line receiver designed for RS232 interface.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Texas Instruments
MPN: SN75189N
MPN Xref:SN75189N, 526587, 2382428, 16364590, 17379878, TI01-0002769, 1103034, 08F8140, 645821
This is a 14-pin DIP integrated circuit line receiver designed for RS232 interface.
| Item Number | SN75189N |
| Manufacturer Part Number | SN75189N |
| Net Weight | 0.0624 lbs |
| Gross Weight | 0.005 lbs |
| Type of integrated circuit | interface |
| Kind of integrated circuit | line receiver |
| Interface | RS232 |
| Mounting | THT |
| Case | DIP14 |
| Number of receivers | 4 |
| Operating temperature | 0...70?C |
| DC supply current | 20mA |
| device package type | dip |
| package | TUBE |
| item per pack | 1 |
| device function | - |
| Weight (lbs) | (0.0025) |
| Manufacturer Product Number | SN75189N |
| Description | IC RECEIVER 0/4 14DIP |
| Detailed Description | 0/4 Receiver RS232 14-PDIP |
| Category | Integrated Circuits (ICs) |
| Series | - |
| Package | Tube |
| Product Status | Last Time Buy |
| Type | Receiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 0/4 |
| Duplex | - |
| Data Rate | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0?C ~ 70?C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
| Base Product Number | SN75189 |
| Package/Case | PDIP-14 |
| Product Categories | RS-232 Interface IC |
| RoHs Status | Rohs |
| Marking Code | SN75189N |
| In-stock | 0 |
| Packaging | Tube |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 C |
| Number of Receivers | 1, 4 |
| Factory Pack Quantity | 25 |
| EAN | 5052406556808 |
| Ckts Per Dev. | 4 |
| Inp Thrshld Hi (V) | 1.0 |
| Inp Thrshld Lo (V) | 1.25 |
| VOL (loaded) Max. | 0.45 |
| VOH Min. | 2.6 |
| VOL Max. | 0.45 |
| PD Max. (W) | 130m |
| tPD Max. (S) | 85n |
| Nom. Neg Supp | 0.0 |
| Nom. Pos. Supp | 5.0 |
| Tech. | TTL |
| Oper. Temp (?C) Min | 0 |
| Oper. Temp (?C) Max. | 70 |
| @Iol (A) | 10m |
| Pinout Equivalence Number | 14-120 |
| Surface Mounted Yes/No | NO |
| Length | 19.3mm |
| Typical Single Supply Voltage | 5 V |
| Power Supply Type | Single |
| Package Type | PDIP |
| Width | 6.35mm |
| Height | 4.57mm |
| Pin Count | 14 |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Interface Standards | EIA/TIA-232-F, RS-232, V.28 |
| Number of Receivers per Line | 1 |
| Receiver Signal Type | Receiver Signal Type |
| Stock | Stock |
| Function | Receiver |
| Supply Current | 26 mA |
| Mounting Style | Through Hole |
| Manufacturer Part No. | SN75189N |
| Alternate Part No. | 595-SN75189N |
| Product Category | RS-232 Interface IC |
| Unit Weight | 1 g |
| Operating Supply Voltage | 5 V |
| Number of Drivers | 0 Driver |
| Operating Temperature Range | 0 C to + 70 C |
