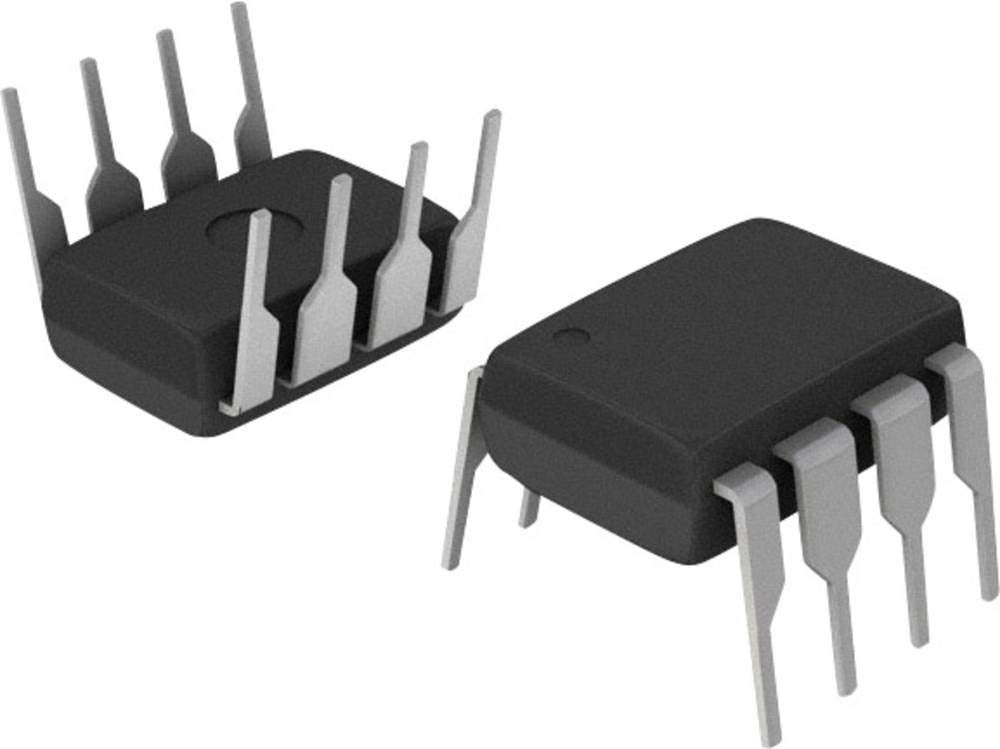

SN75176BP IC Transceiver Half 1/1 8-DIP
SN75176BP IC Transceiver Half 1/1 8-DIP
Regular price
$0.16 USD
Regular price
Sale price
$0.16 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
Condition: New
Brand: TEXAS INSTRUMENTS
MPN: SN75176BP
MPN Xref:SN75176BP
IC TRANSCEIVER HALF 1/1 8-DIP. 1/1 Transceiver Half RS422, RS485 8-PDIP. Operating Temperature: 0°C ~ 70°C
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: TEXAS INSTRUMENTS
MPN: SN75176BP
MPN Xref:SN75176BP
IC TRANSCEIVER HALF 1/1 8-DIP. 1/1 Transceiver Half RS422, RS485 8-PDIP. Operating Temperature: 0°C ~ 70°C
| Weight (lbs) | (0.004) |
| Manufacturer | Texas Inst. |
| Manufacturer Product Number | SN75176BP |
| Description | IC TRANSCEIVER HALF 1/1 8DIP |
| Manufacturer Standard Lead Time | 6 Weeks |
| Detailed Description | 1/1 Transceiver Half RS422, RS485 8-PDIP |
| Category | Integrated Circuits (ICs) |
| Series | SN75176B |
| Package | Tube |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 50 mV |
| Data Rate | 10 Mb/s |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0?C ~ 70?C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | 75176 |
| Gross Weight | 0.001 lbs |
| Package/Case | DIP-8 |
| Product Categories | RS-485 Interface IC |
| RoHs Status | Lead free / RoHS Compliant |
| Marking Code | SN75176BP |
| In-stock | 0 |
| Packaging | Tube |
| Function | Transceiver |
| Maximum Operating Temperature | + 70 C |
| Minimum Operating Temperature | 0 C |
| Number of Drivers | 1 |
| Number of Receivers | 1 Receiver |
| Shutdown | Yes |
| Factory Pack Quantity | 50 |
| EAN | 5052406868727 |
| Case | DIP8 |
| Inp Thrshld Hi (V) | 2.0 |
| Inp Thrshld Lo (V) | 0.8 |
| Mode I/O D or S | Differenti |
| tPD Max. (S) | 65n |
| Nom. Neg Supp | 0.0 |
| Nom. Pos. Supp | 5.0 |
| Tech. | TTL |
| Oper. Temp (?C) Min | 0 |
| Oper. Temp (?C) Max. | 70 |
| @IOL (A) | 60m |
| VOL Max. (Drvr) | 6.0 |
| VOL Max. (Rcvr) | .45 |
| VOH Min (Rcvr) | 2.7 |
| Pinout Equivalence Number | 8-46 |
| No. of Pins | 8 |
| Surface Mounted Yes/No | NO |
| Mounting Style | Through Hole |
| Supply Current | 70 mA |
| Operating Temperature Range | 0 C to + 70 C |
| Unit Weight | 440.400 mg |
| Product Category | RS-485 Interface IC |
| Operating Supply Voltage | 5 V |
| Alternate Part No. | 595-SN75176BP |
| Manufacturer Part No. | SN75176BP |
| device package type | 8 pin dip |
| package | 50 PER TUBE |
| item per pack | 1 |
| Type of integrated circuit | interface |
| Kind of integrated circuit | transceiver |
| Data transfer rate | 10Mbps |
| Mounting | THT |
| Number of receivers | 1 |
| Number of transmitters | 1 |
| Operating temperature | 0...70?C |
| DC supply current | 70mA |
| Integrated circuit features | differential |
| Kind of package | tube |
