16 Pin DIP Line Receiver - SN75175N
16 Pin DIP Line Receiver - SN75175N
Regular price
$0.80 USD
Regular price
Sale price
$0.80 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Condition: New
Brand: TI
MPN: SN75175N
MPN Xref:SN75175N

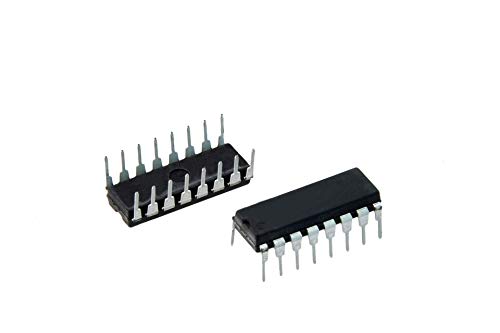

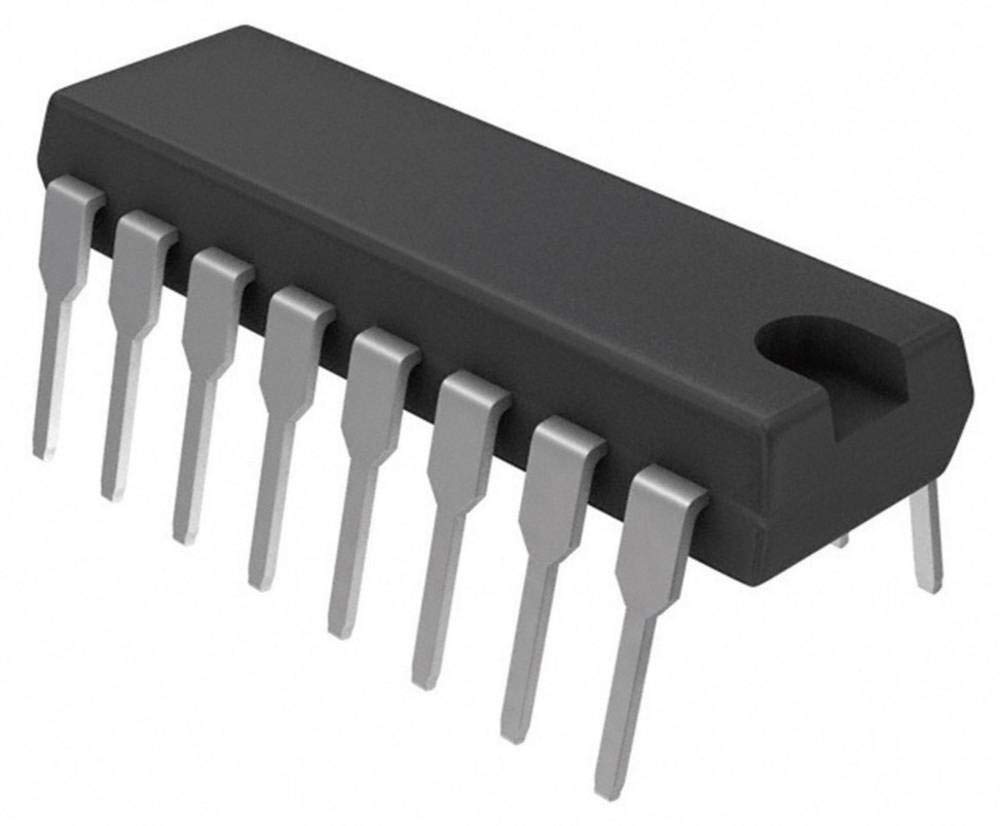

This is a 16 pin dip package integrated circuit from TEXAS INSTRUMENTS. It is a line receiver with a data transfer rate of 10Mbps. The package type is tube, and there is 1 item per pack.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: TI
MPN: SN75175N
MPN Xref:SN75175N
This is a 16 pin dip package integrated circuit from TEXAS INSTRUMENTS. It is a line receiver with a data transfer rate of 10Mbps. The package type is tube, and there is 1 item per pack.
| device package type | 16 pin dip |
| package | tube |
| item per pack | 1 |
| Item Number | SN75175N |
| Manufacturer Part Number | SN75175N |
| Manufacturer | TEXAS INSTRUMENTS |
| Family Series | Texas Instruments |
| Net Weight | 0.005 lbs |
| Gross Weight | 0.005 lbs |
| Type of integrated circuit | interface |
| Kind of integrated circuit | line receiver |
| Data transfer rate | 10Mbps |
| Case | DIP16 |
| Number of receivers | 4 |
| DC supply current | 50mA |
| Package/Case | DIP-16 |
| Product Categories | RS-422/RS-485 Interface IC |
| RoHs Status | Lead free / RoHS Compliant |
| Marking Code | SN75175N |
| In-stock | 0 |
| Package / Case | DIP-16 |
| Packaging | Tube |
| Number of Receivers | 4 |
| EAN | 5052406695149 |
| Type | Receiver |
| Ckts Per Dev. | 4 |
| Inp Thrshld Hi (V) | 0.2 |
| Inp Thrshld Lo (V) | -.20 |
| VOL (loaded) Max. | 0.5 |
| VOH Min. | 2.7 |
| VOL Max. | 0.5 |
| PD Max. (W) | 1.1 |
| tPD Max. (S) | 35n |
| Nom. Neg Supp | 0.0 |
| Nom. Pos. Supp | 5.0 |
| Tech. | TTL |
| Oper. Temp (?C) Min | 0 |
| Oper. Temp (?C) Max. | 70 |
| @Iol (A) | 16m |
| Pinout Equivalence Number | 16-764 |
| Surface Mounted Yes/No | NO |
| Category | Integrated Circuits (ICs) |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Protocol | RS422, RS423, RS485 |
| Number of Drivers/Receivers | 0/4 |
| Duplex | - |
| Receiver Hysteresis | 50 mV |
| Data Rate | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Supplier Device Package | 16-PDIP |
| Base Product Number | 75175 |
