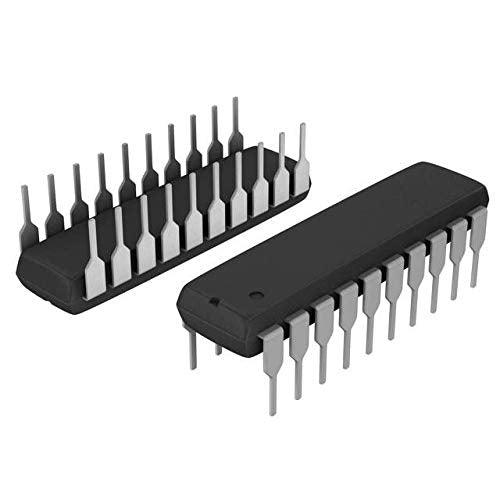

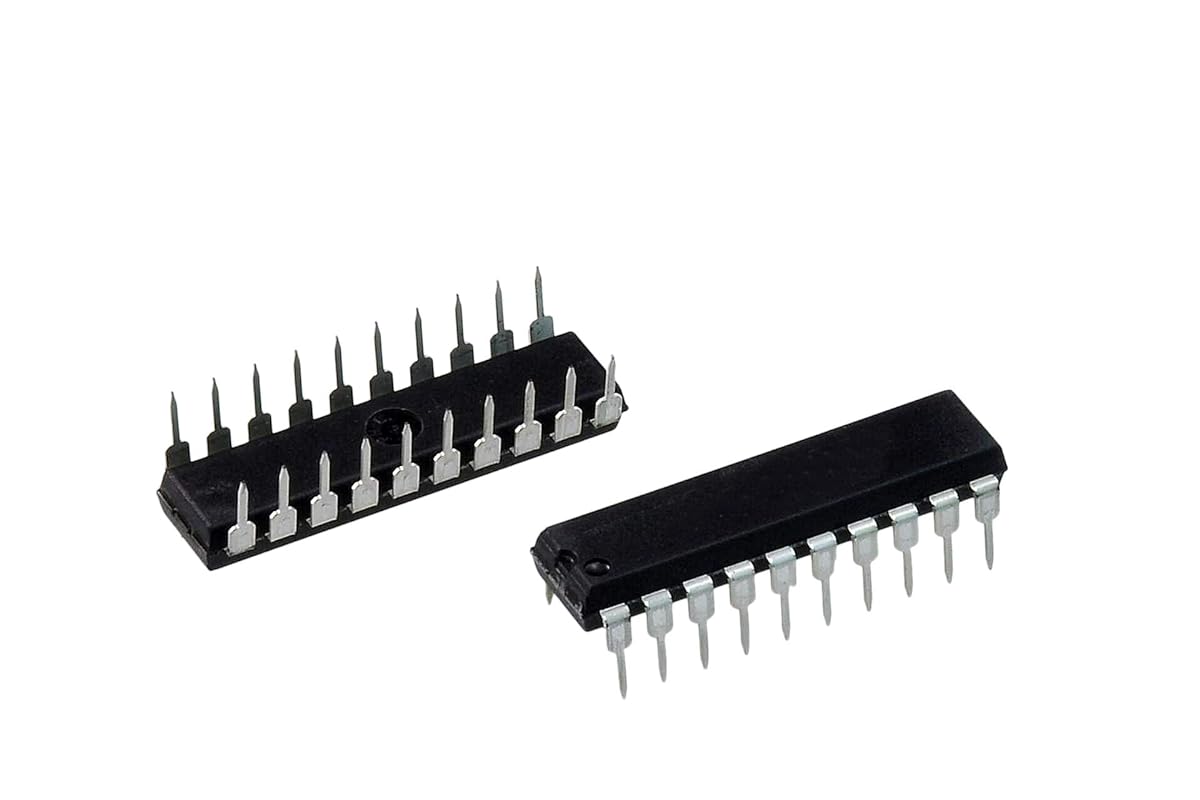

IC BUFFER INVERT 5.5V 20DIP
IC BUFFER INVERT 5.5V 20DIP
Regular price
$0.09 USD
Regular price
Sale price
$0.09 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
Condition: New
Brand: Texas Instruments
MPN: SN74HCT540N
MPN Xref:SN74HCT540N, 595-SN74HCT540N, 9592040, 296-8419-5-ND, 527148, 60K6813, 250915
IC BUFFER INVERT 5.5V 20DIP
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Texas Instruments
MPN: SN74HCT540N
MPN Xref:SN74HCT540N, 595-SN74HCT540N, 9592040, 296-8419-5-ND, 527148, 60K6813, 250915
IC BUFFER INVERT 5.5V 20DIP
| Category | Integrated Circuits (ICs) |
| Series | 74HCT |
| Package | Tube |
| Part Status | Active |
| Logic Type | CMOS |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40?C ~ 85?C (TA) |
| Mounting Type | Through Hole |
| Package / Case | PDIP-20 |
| Supplier Device Package | 20-PDIP |
| Base Product Number | 74HCT540 |
| Manufacturer Product Number | SN74HCT540N |
| Description | IC BUFFER INVERT 5.5V 20DIP |
| Manufacturer Standard Lead Time | 6 Weeks |
| Detailed Description | Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-PDIP |
| Product Status | Active |
| Package/Case | PDIP-20 |
| Product Categories | Inverters |
| RoHs Status | Rohs |
| Marking Code | SN74HCT540N |
| In-stock | 0 |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | Through Hole |
| Packaging | Tube |
| High Level Output Current | - 6 mA |
| Logic Family | HCT |
| Low Level Output Current | 6 mA |
| Minimum Operating Temperature | - 40 C |
| Number of Channels per Chip | 8 |
| Propagation Delay Time | 30 ns at 4.5 V, 27 ns at 5.5 V |
| Factory Pack Quantity | 20 |
| Maximum High Level Output Current | -6mA |
| Length | 24.33mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Propagation Delay Time @ Maximum CL | 30 ns @ 4.5 V |
| Propagation Delay Test Condition | 150pF |
| Polarity | Inverting |
| Package Type | PDIP |
| Width | 6.35mm |
| Height | Height |
| Logic Function | Logic Function |
| Maximum Operating Supply Voltage | Maximum Operating Supply Voltage |
| Pin Count | Pin Count |
| Dimensions | Dimensions |
| Maximum Low Level Output Current | Maximum Low Level Output Current |
| Stock | Stock |
| Type of integrated circuit | digital |
| Kind of integrated circuit | buffer, |
| Number of channels | 8 |
| Mounting | THT |
| Case | DIP20 |
| Kind of output | 3-state |
| Family | HCT |
