2-Channel Digital Buffer Integrated Circuit

Condition: New
Brand: TEXAS INSTRUMENTS
MPN: SN74HC240N
MPN Xref:SN74HC240N

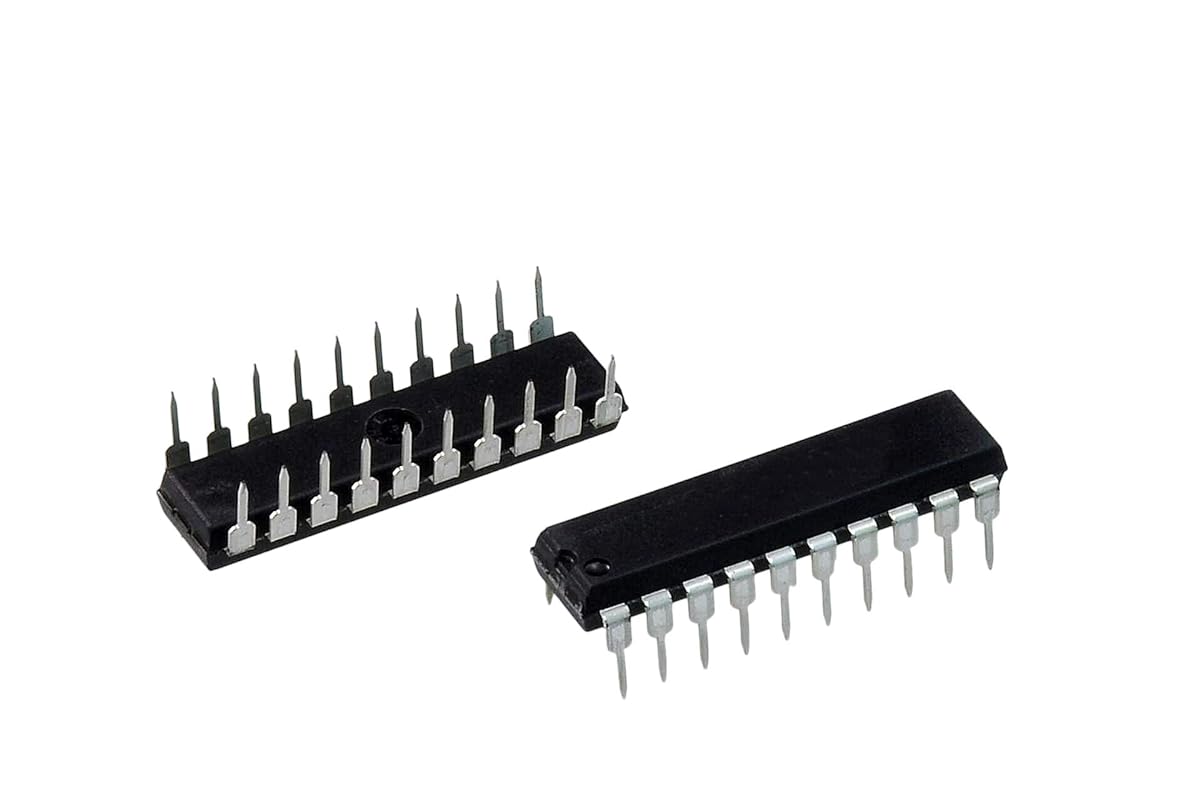

This is a 2-channel digital buffer integrated circuit with CMOS technology. It is a 20-pin DIP package, operating at a temperature range of -40 to 85°C. The output is 3-state and it comes in a tube packaging format. It belongs to the HC family, with a quiescent current of 80µA.

Type of integrated circuit	digital
Kind of integrated circuit	buffer,
Number of channels	2
Technology	CMOS
Mounting	THT
Case	DIP20
Operating temperature	-40...85?C
Kind of output	3-state
Kind of package	tube
Family	HC
Quiescent current	80?A
device function	-
device package type	20 pin dip
package	tube
item per pack	1
Package/Case	PDIP-20
Product Categories	Inverters
RoHs Status	Rohs
Marking Code	SN74HC240N
In-stock	0
Maximum Operating Temperature	+ 85 C
Mounting Style	Through Hole
Package / Case	PDIP-20
Packaging	Tube
High Level Output Current	- 7.8 mA
Logic Family	HC
Logic Type	CMOS
Low Level Output Current	7.8 mA
Minimum Operating Temperature	- 40 C
Number of Channels per Chip	8
Output Type	3-State
Propagation Delay Time	150 ns at 2 V, 30 ns at 4.5 V, 26 ns at 6 V
Factory Pack Quantity	20
Category	Integrated Circuits (ICs)
