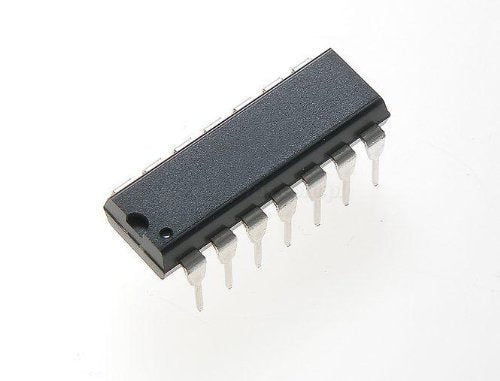

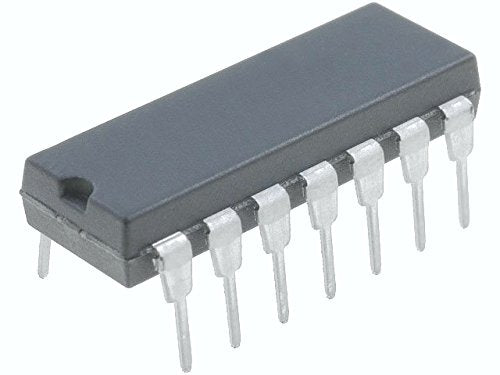

General Purpose Amplifier IC
General Purpose Amplifier IC
Regular price
$0.06 USD
Regular price
Sale price
$0.06 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Condition: New
Brand: TEXAS INSTRUMENTS
MPN: LM324AN
MPN Xref:LM324AN
IC OPAMP GP 4 CIRCUIT 14DIP
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: TEXAS INSTRUMENTS
MPN: LM324AN
MPN Xref:LM324AN
IC OPAMP GP 4 CIRCUIT 14DIP
| Category | Integrated Circuits (ICs) |
| Series | LinCMOS? |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | High Gain Amplifier |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 0.5 V/us |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 45 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 1.5mA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | 0?C ~ 70?C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | PDIP-14 |
| Supplier Device Package | 14-PDIP |
| Base Product Number | LM324 |
| Manufacturer Product Number | LM324AN |
| Description | IC OPAMP GP 4 CIRCUIT 14DIP |
| Manufacturer Standard Lead Time | 6 Weeks |
| Detailed Description | General Purpose Amplifier 4 Circuit 14-PDIP |
| Package/Case | PDIP-14 |
| Product Categories | Op Amps |
| RoHs Status | Lead free / RoHS Compliant |
| Marking Code | LM324AN |
| In-stock | 0 |
| Mounting Style | Through Hole |
| Shutdown | No |
| Output Current | 30 mA |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Maximum Dual Supply Voltage | +/- 16 V |
| Minimum Dual Supply Voltage | +/- 1.5 V |
| Minimum Operating Temperature | 0 C |
| Factory Pack Quantity | 25 |
| Supply Current | 3 mA |
| Technology | Bipolar |
| Voltage Gain dB | 100 dB |
| Case | DIP14 |
| EAN | 5052406539542 |
| Type | Integrated Circuit Op-Amp |
| I(io) Max. (A) | 75n |
| V(io) Max. (V) | 5.0m |
| PD Max. (W) | 736m |
| Inp Bias Curr. Max. (A) | 200n |
| Unity Gain BW (Hz) | 1.0M |
| Com Mode Inp Range (VICR) | 5.0 |
| Temp Coef. of VIO | 9.2u |
| Oper. Temp (?C) Min | 0 |
| Oper. Temp (?C) Max. | 70 |
| Pinout Equivalence Number | 14-195 |
| Surface Mounted Yes/No | NO |
| device function | - |
| device package type | 14 pin dip |
| package | 25 PER TUBE |
| item per pack | 1 |
| Type of integrated circuit | operational amplifier |
| Bandwidth | 1.2MHz |
| Mounting | THT |
| Number of channels | 4 |
| Voltage supply range | ? 1.5...16V DC/ |
