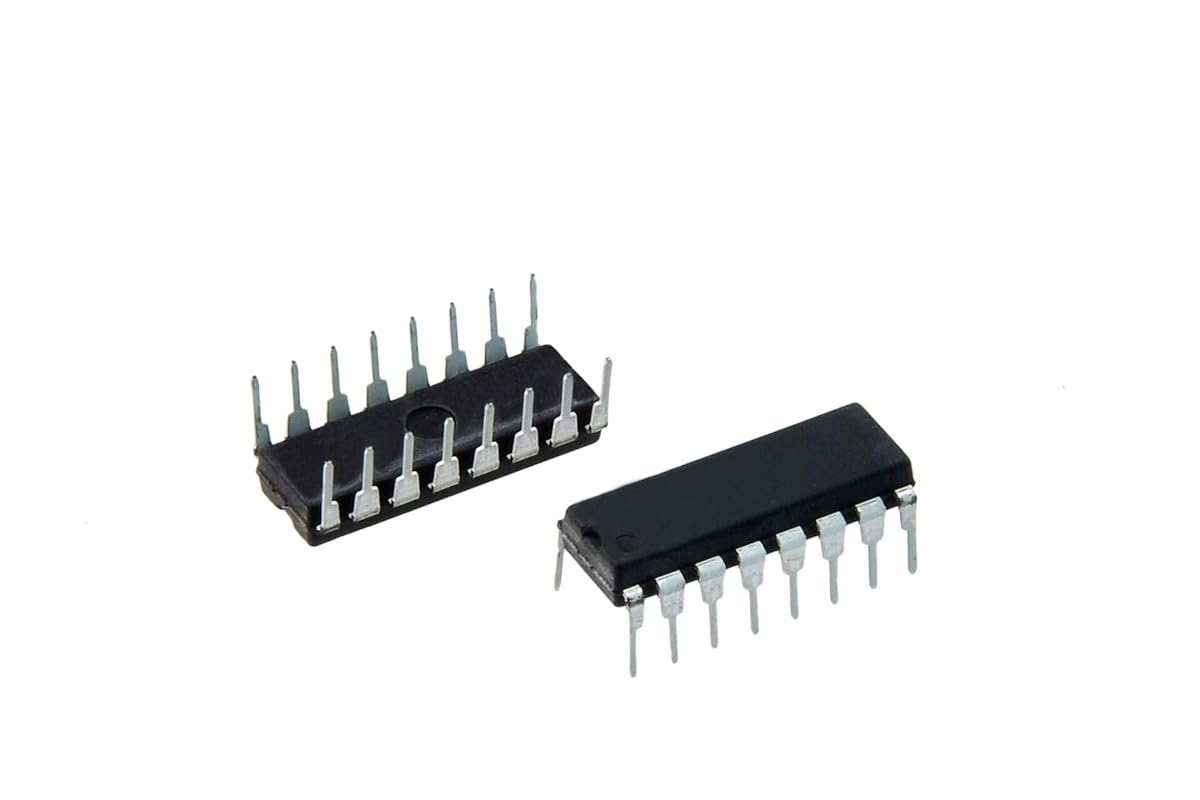

This product is a CMOS buffer and line driver with a supply voltage range of 2 V to 6 V. It has 6 channels and comes in a PDIP-16 package.
Maximum Operating Temperature
+125 ?C
Propagation Delay Time
85 ns at 2 V, 17 ns at 4.5 V, 14 ns at 6 V
Output Type
CMOS
Logic Family
HC
Minimum Operating Temperature
-55 ?C
Manufacturer Part No.
CD74HC4050E
Logic Type
CMOS
Series
CD74HC4050
Unit Weight
1 g
Low Level Output Current
5.2 mA
Number of Channels per Chip
5
Supply Voltage - Min
2 V
Supply Current
0.02 mA
Number of Output Lines
6
Package/Case
PDIP-16
High Level Output Current
- 5.2 mA
Supply Voltage - Max
6 V
Polarity
Non-Inverting
Mounting Style
Through Hole
Packaging
Tube
Product Category
Buffers & Line Drivers
Number of Input Lines
6
Alternate Part No.
595-CD74HC4050E
Logic Function
Buffer, Converter
Input Type
Single Ended
Mounting Type
Through Hole
Package Type
PDIP
Pin Count
16
Maximum High Level Output Current
-5.2mA
Maximum Low Level Output Current
5.2mA
Maximum Propagation Delay Time @ Maximum CL
14 ns @ 6 V, 17 ns @ 4.5 V, 85 ns @ 2 V
Dimensions
19.3 x 6.35 x 4.57mm
Height
4.57mm
Width
6.35mm
Minimum Operating Supply Voltage
2 V
Length
19.3mm
Maximum Operating Supply Voltage
6 V
Propagation Delay Test Condition
50pF
Type of integrated circuit
digital
Kind of integrated circuit
buffer,
Number of channels
6
Mounting
THT
Case
DIP16
Family
HC
Product Categories
Buffers & Line Drivers
RoHs Status
Rohs
Marking Code
CD74HC4050E
In-stock
0
Package / Case
PDIP-16
Factory Pack Quantity
25
