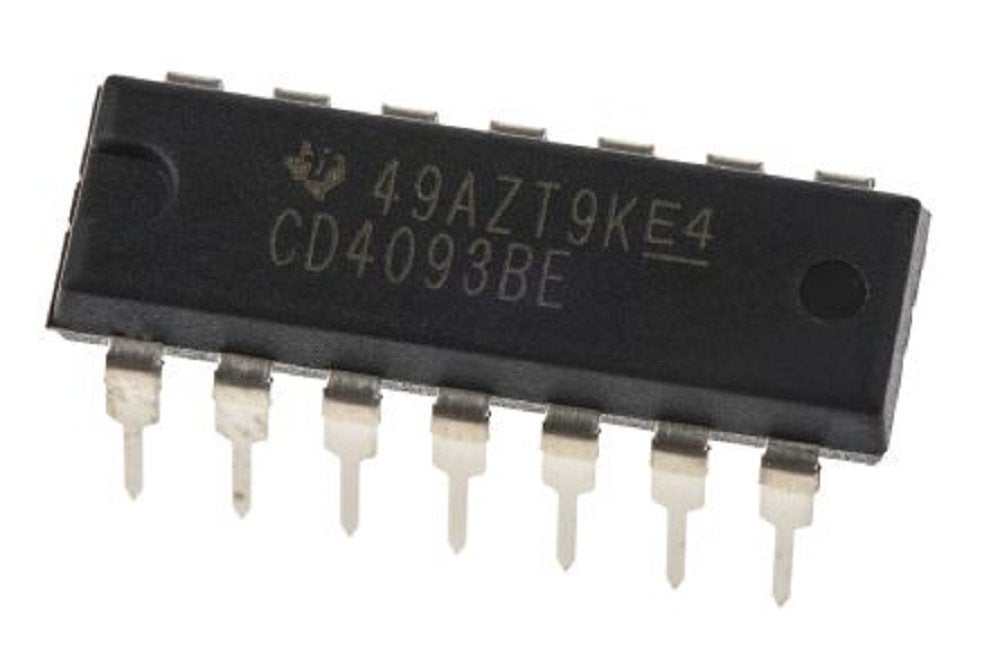

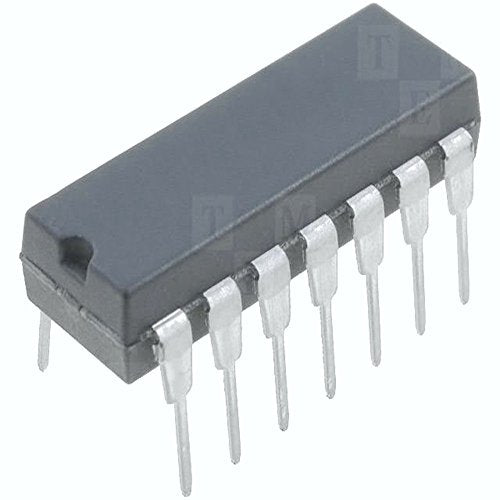

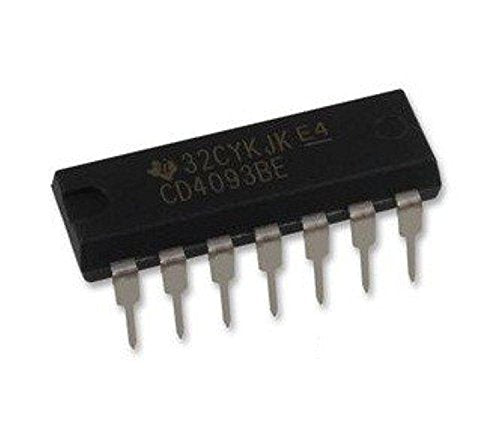

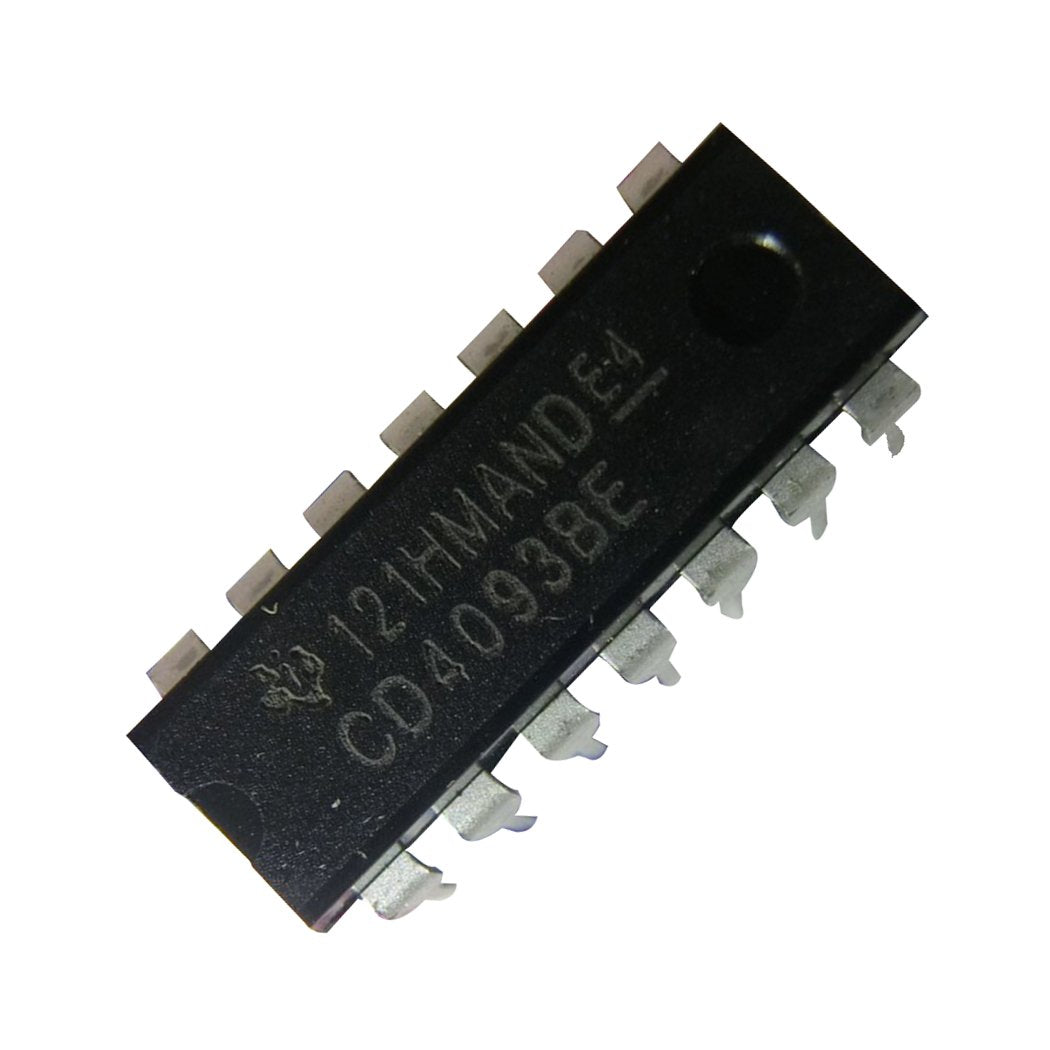

CD4093BE IC GATE NAND 4CH 2-INP 14DIP

Condition: New
Brand: Texas Instruments
MPN: CD4093BE
MPN Xref:CD4093BE, 527867, 60K5137, WI-426B-44, 2143785, 296-2068-5-ND, 72003, 1106117, 29321

IC GATE NAND 4CH 2-INP 14DIP - NAND Gate IC 4 Channel Schmitt Trigger 14-PDIP. Integrated Circuit, Digital, NAND Gate, Quad, 2 Inputs, CMOS, THT, DIP14.

Type of integrated circuit	digital
Kind of gate	NAND
Number of channels	quad,
Number of inputs	2
Technology	CMOS
Mounting	THT
Case	DIP14
Family	CD4000
Manufacturer Product Number	CD4093BE
Description	IC GATE NAND 4CH 2-INP 14DIP
Manufacturer Standard Lead Time	12 Weeks
Detailed Description	NAND Gate IC 4 Channel Schmitt Trigger 14-PDIP
Category	Integrated Circuits (ICs)
Series	4000B
Package	Tube
Product Status	Active
Logic Type	NAND Gate
Number of Circuits	4
Number of Inputs	2
Features	Schmitt Trigger
Voltage - Supply	3V ~ 18V
Current - Quiescent (Max)	4 ?A
Current - Output High, Low	3.4mA, 3.4mA
Input Logic Level - Low	0.9V ~ 4V
Input Logic Level - High	3.6V ~ 10.8V
Max Propagation Delay @ V, Max CL	130ns @ 15V, 50pF
Operating Temperature	-55?C ~ 125?C
Mounting Type	Through Hole
Supplier Device Package	14-PDIP
Package / Case	14-DIP (0.300", 7.62mm)
Base Product Number	CD4093
Package/Case	PDIP-14
Product Categories	Logic Gates
RoHs Status	Lead free / RoHS Compliant
Marking Code	CD4093BE
In-stock	0
Low Level Output Current	4.2 mA
Propagation Delay Time	380 ns
Supply Voltage Max	18 V
Supply Voltage Min	3 V
Maximum Operating Temperature	+ 125 C
Mounting Style	Through Hole
Packaging	Tube
Minimum Operating Temperature	-55 °C
Number of Input Lines	2
Number of Output Lines	1
Factory Pack Quantity	25
EAN	5052406764272
Type	Integrated Circuit
Maximum High Level Output Current	-3.4 (Minimum)mA
Number Of Elements	4
Number of Inputs per Gate	2
Length	19.69mm
Schmitt Trigger Input	Yes
Minimum Operating Supply Voltage	3 V
Maximum Propagation Delay Time @ Maximum CL	380 ns @ 50 pF
Propagation Delay Test Condition	50pF
Package Type	PDIP
Input Type	Schmitt Trigger
Width	6.6mm
Height	Height
Logic Function	Logic Function
Maximum Operating Supply Voltage	Maximum Operating Supply Voltage
Pin Count	Pin Count
Dimensions	Dimensions
Maximum Low Level Output Current	Maximum Low Level Output Current
Stock	Stock
Base Part Number	4093
Lead Free Status / RoHS Status	RoHS Compliant
Logic Level - High	3.6V ~ 10.8V
Logic Level - Low	0.9V ~ 4V
Manufacturer Part Number	CD4093BE
Standard Package	25
Alternate Parts
