Condition: New
Brand: TI
MPN: CD4046BE
MPN Xref:CD4046BE, 06F2487, 1106104, 34951, 817951, 595-CD4046BE, TI01-0007064, 17347347, 666878

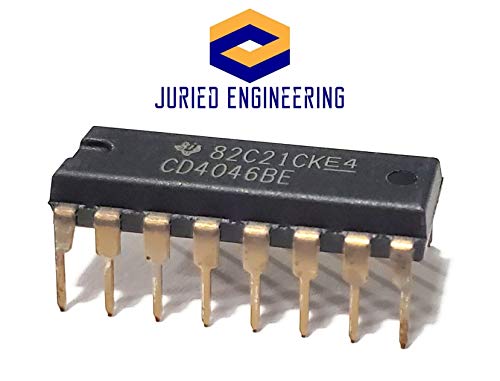

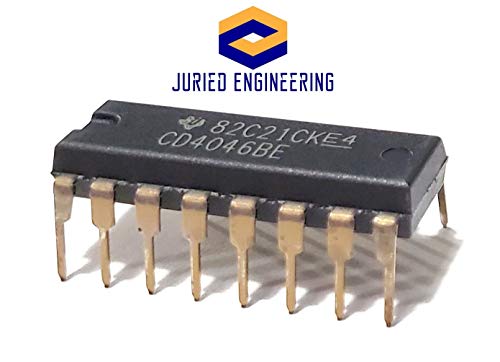

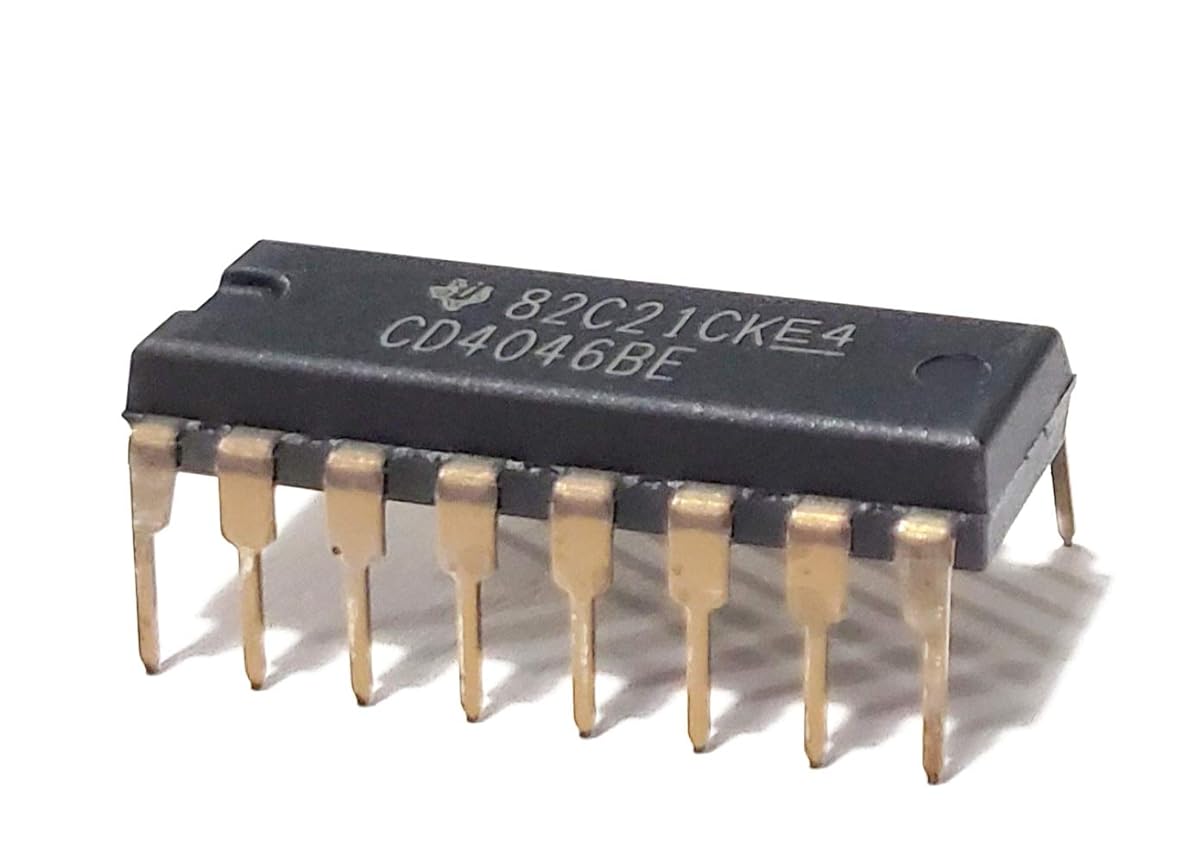

This integrated circuit is a phase-locked loop (PLL) with CMOS technology. It has a maximum frequency of 2.4MHz and voltage supply range of 3V to 18V. The package is DIP16.
Manufacturer
Texas Inst.
Type of integrated circuit
digital
Kind of integrated circuit
phase-locked loop
Technology
CMOS
Case
DIP16
Family
CD4000
Weight (lbs)
(0.0025)
Item Number
CD4046BE
Manufacturer Part Number
CD4046BE
Family Series
Texas Instruments Miscellaneous
Net Weight
0.005 lbs
Gross Weight
0.005 lbs
Manufacturer Product Number
CD4046BE
Category
Integrated Circuits (ICs)
Mfr
Texas Instruments
Series
-
Package
Tube
DigiKey Programmable
Not Verified
Type
Phase Lock Loop (PLL)
PLL
Yes
Input
CMOS
Output
CMOS
Number of Circuits
1
Frequency - Max
2.4MHz
Voltage - Supply
3V ~ 18V
Package / Case
PDIP-16
Supplier Device Package
16-PDIP
Base Product Number
CD4046
Package/Case
PDIP-16
Product Categories
Phase Locked Loops
RoHs Status
Lead free / RoHS Compliant
Marking Code
CD4046BE
In-stock
0
Packaging
Tube
EAN
5052406538828
f(VCO) Max. (Hz)
800k-
Oper. Temp (?C) Min
-55
Oper. Temp (?C) Max.
125
Pinout Equivalence Number
16-129
Surface Mounted Yes/No
NO
