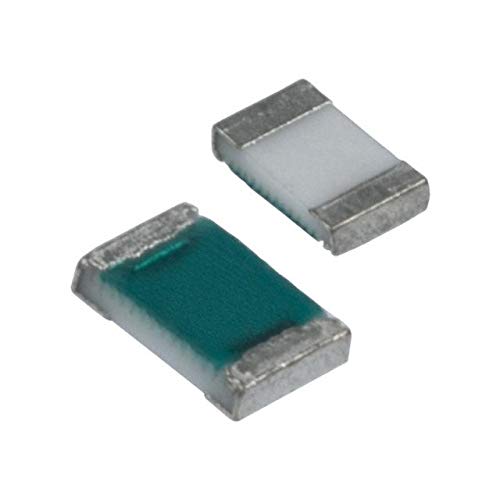

Thin Film Resistor RL1220S-R22-F 220 mOhms 0805

Thin Film Resistor RL1220S-R22-F 220 mOhms 0805

Regular price $0.15 USD
Regular price Sale price $0.15 USD
Sale Sold out
Shipping calculated at checkout.

306 in stock

Condition: New
MPN: RL1220S-R22-F
MPN Xref:RL1220S-R22-F, RL12S.22FTR-ND, 28K1618, RL12S.22FDKR-ND, 754-RL1220S-R22-F, 9376399, RL12S.22FCT-ND

This is a thin film resistor with a resistance of 220 mOhms and a power rating of 0.333W. It has a tolerance of ?1% and is designed for current sensing applications. The resistor is 0805 in size and has a temperature coefficient of 0/ +200ppm/?C. It can operate in a temperature range of -55?C to 125?C.
Category Resistors
Series RL
Package Tape & Reel (TR)
Part Status Active
Tolerance ?1%
Power (Watts) 0.333W, 1/3W
Composition Thin Film
Features Current Sense
Temperature Coefficient 0/ +200ppm/?C
Operating Temperature -55?C ~ 125?C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.020"" (0.50mm)
Failure Rate -
Number of Terminations 2
Resistance 220 mOhms
Manufacturer Product Number RL1220S-R22-F
Description RES 0.22 OHM 1% 1/3W 0805
Manufacturer Standard Lead Time 42 Weeks
Detailed Description 220 mOhms ?1% 0.333W, 1/3W Chip Resistor 0805 (2012 Metric) Current Sense Thin Film
Product Status Active
