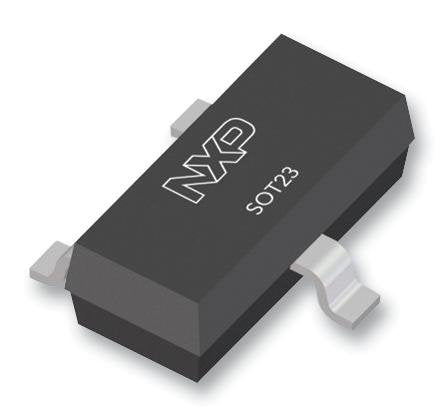

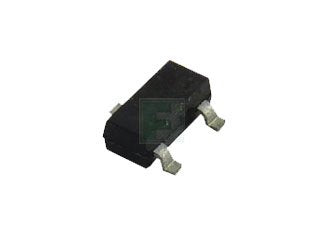

NPN Bipolar Transistor - 140V, 0.3A

NPN Bipolar Transistor - 140V, 0.3A

Regular price $0.10 USD
Regular price Sale price $0.10 USD
Sale Sold out
Shipping calculated at checkout.

50 in stock

Condition: New
Brand: NEXPERIA
MPN: PMBT5550,215
MPN Xref:PMBT5550,215, 771-PMBT5550215, 568-6492-1-ND, PMBT5550.215, 568-6492-2-ND, 70R7640, 93X4620, 2439346, PMBT5550215

This NPN bipolar transistor has a collector-emitter voltage of 140V and a collector current of 0.3A. It is a surface mount transistor with a power dissipation of 0.25W. It has a current gain of 250 and a frequency of 300MHz. It is commonly used in the automotive industry.
Category Discrete Semiconductor Products
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
Part Status Active
Transistor Type NPN
Vce Saturation (Max) @ Ib, Ic 250mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 10mA, 5V
Frequency - Transition 300MHz
Operating Temperature 150?C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Current - Collector (Ic) (Max) 300 mA
Voltage - Collector Emitter Breakdown (Max) 140 V
Power - Max 250 mW
Base Product Number PMBT5550
Product Status Active
Type of transistor NPN
Polarisation bipolar
Collector-emitter voltage 140V
Collector current 0.3A
Power dissipation 0.25W
Case SOT23,
Current gain 250
Mounting SMD
Kind of package reel,
Frequency 300MHz
Application automotive industry
