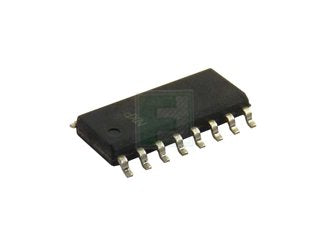

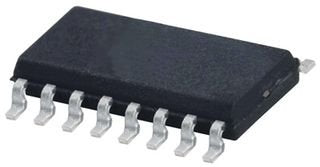

Serial to Parallel Shift Register IC - 74HC595D
Serial to Parallel Shift Register IC - 74HC595D
Regular price
$0.06 USD
Regular price
Sale price
$0.06 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 8 left
Couldn't load pickup availability
Condition: New
Brand: NEXPERIA
MPN: 74HC595D,112
MPN Xref:74HC595D,112, 71R2679, 74HC595D112, 74HC595D.112, 118-74HC595D-112, 771-74HC595D, 74HC595D 112, 70012196, 568-3968-5-ND
This integrated circuit (IC) is a serial to parallel shift register with a tri-state output type. It has a maximum supply voltage of 6V and operates at 5V. The IC is from NXP Semiconductors and belongs to the 74HC series. It has 1 input line and 9 output lines, and is packaged in a SOT-109 package. The propagation delay time is 175 ns, 35 ns, and 30 ns. The IC is CMOS-based and can function as a counter shift register. It is suitable for applications in integrated circuits (ICs).
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: NEXPERIA
MPN: 74HC595D,112
MPN Xref:74HC595D,112, 71R2679, 74HC595D112, 74HC595D.112, 118-74HC595D-112, 771-74HC595D, 74HC595D 112, 70012196, 568-3968-5-ND
This integrated circuit (IC) is a serial to parallel shift register with a tri-state output type. It has a maximum supply voltage of 6V and operates at 5V. The IC is from NXP Semiconductors and belongs to the 74HC series. It has 1 input line and 9 output lines, and is packaged in a SOT-109 package. The propagation delay time is 175 ns, 35 ns, and 30 ns. The IC is CMOS-based and can function as a counter shift register. It is suitable for applications in integrated circuits (ICs).
| Category | Integrated Circuits (ICs) |
| Series | 74HC |
| Package | Tube |
| Product Status | Obsolete |
| Logic Type | CMOS |
| Output Type | 3-State |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function | Serial to Parallel, Serial |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40?C ~ 125?C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | 74HC595 |
| Supply Voltage - Max | 6 V |
| Brand | NXP Semiconductors |
| Operating Supply Voltage | 5 V |
| Logic Family | HC |
| Packaging | Tube |
| Package/Case | SOT-109 |
| Propagation Delay Time | 175 ns, 35 ns, 30 ns |
| Number of Input Lines | 1 |
| Number of Circuits | 1 |
| Manufacturer | NXP |
| Product Category | Counter Shift Registers |
| Minimum Operating Temperature | - 40 C |
| Number of Output Lines | 9 |
| Supply Voltage - Min | 2 V |
| Alternate Part No. | 771-74HC595D |
| Maximum Operating Temperature | + 125 C |
| Part # Aliases | 74HC595D |
| Mounting Style | SMD/SMT |
| Manufacturer Part No. | 74HC595D,112 |
| Counting Sequence | Serial to Serial/Parallel |
