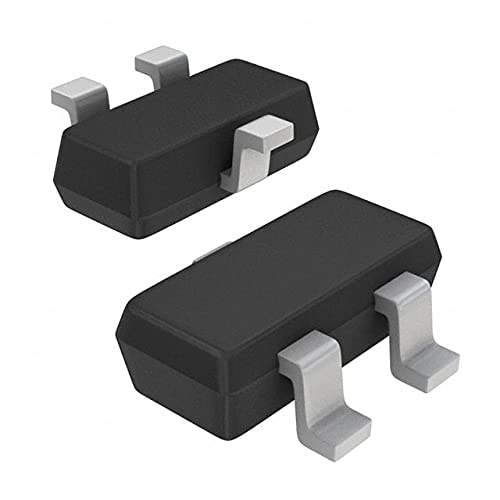

NXP MOSFET Discrete Semiconductor Product TO-236AB SOT23
NXP MOSFET Discrete Semiconductor Product TO-236AB SOT23
Regular price
$0.02 USD
Regular price
Sale price
$0.02 USD
Unit price
/
per
Shipping calculated at checkout.
285 in stock
Couldn't load pickup availability
Condition: New
Brand: NEXPERIA
MPN: 2N7002K,215
MPN Xref:2N7002K,215, 2N7002K,216, 568-4984-6-ND, 568-4984-2-ND, 118-2N7002K-215, 75R4882, 568-4984-1-ND, 1758065, 7258344
This NXP MOSFET is a discrete semiconductor product packaged in Tape & Reel (TR) and TO-236AB (SOT23) packages. It is an N-Channel MOSFET with a maximum drain source voltage of 60V and a maximum continuous drain current of 340mA.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: NEXPERIA
MPN: 2N7002K,215
MPN Xref:2N7002K,215, 2N7002K,216, 568-4984-6-ND, 568-4984-2-ND, 118-2N7002K-215, 75R4882, 568-4984-1-ND, 1758065, 7258344
This NXP MOSFET is a discrete semiconductor product packaged in Tape & Reel (TR) and TO-236AB (SOT23) packages. It is an N-Channel MOSFET with a maximum drain source voltage of 60V and a maximum continuous drain current of 340mA.
| Category | Discrete Semiconductor Products |
| Mfr | NXP USA Inc. |
| Series | TrenchMOS? |
| Package | Obsolete |
| Part Status | N-Channel |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 4.5V, 10V |
| Drive Voltage (Max Rds On, Min Rds On) | 3.9Ohm @ 500mA, 10V |
| Rds On (Max) @ Id, Vgs | 2V @ 1mA |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Vgs (Max) | - |
| FET Feature | - |
| Power Dissipation (Max) | 830mW (Ta) |
| Operating Temperature | -65?C ~ 150?C (TJ) |
| Mounting Type | TO-236AB (SOT23) |
| Supplier Device Package | TO-236-3, SC-59, SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Drain to Source Voltage (Vdss) | 40 pF @ 10 V |
| Product Status | Obsolete |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
| Base Product Number | 2N70 |
| Maximum Operating Temperature | +150 °C |
| Number of Elements per Chip | 1 |
| Length | 3mm |
| Brand | NXP |
| Maximum Continuous Drain Current | 340 mA |
| Package Type | TO-236AB |
| Maximum Power Dissipation | 830 mW |
| Minimum Operating Temperature | -65 °C |
| Width | 1.4mm |
| Height | 1mm |
| Maximum Drain Source Resistance | 3.9 ? |
| Maximum Drain Source Voltage | 60 V |
| Pin Count | 3 |
| Channel Mode | Enhancement |
| Channel Type | Channel Type |
| Maximum Gate Source Voltage | Maximum Gate Source Voltage |
| Stock | Stock |
