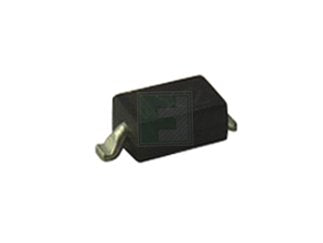

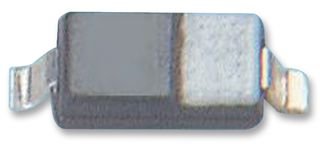

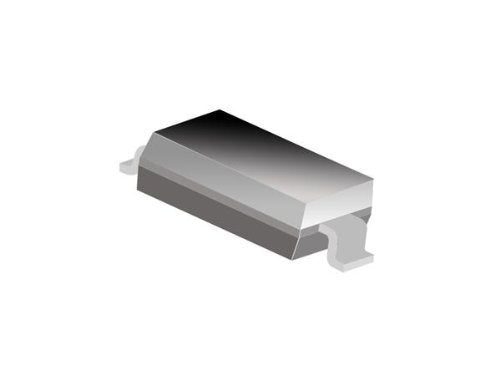

1N4148WX-TP Diode
1N4148WX-TP Diode
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Unit price
/
per
Shipping calculated at checkout.
110 in stock
Couldn't load pickup availability
Condition: New
Brand: MICRO COMMERCIAL COMPONENTS
MPN: 1N4148WX-TP
MPN Xref:1N4148WX-TP, 1N4148WXTPMSDKR-ND, 70055520, 1N4148WX-TP**MULT1, 833-1N4148WX-TP, 2363502, 69R6665, 1N4148WXTPMSCT-ND, B00DEDC8XM
DIODE GEN PURP 75V 150MA SOD323
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: MICRO COMMERCIAL COMPONENTS
MPN: 1N4148WX-TP
MPN Xref:1N4148WX-TP, 1N4148WXTPMSDKR-ND, 70055520, 1N4148WX-TP**MULT1, 833-1N4148WX-TP, 2363502, 69R6665, 1N4148WXTPMSCT-ND, B00DEDC8XM
DIODE GEN PURP 75V 150MA SOD323
| Category | Discrete Semiconductor Products |
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 5 ?A @ 75 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55?C ~ 150?C |
| Base Product Number | 1N4148 |
| Manufacturer | Micro Commercial Co |
| Manufacturer Product Number | 1N4148WX-TP |
| Description | DIODE GEN PURP 75V 150MA SOD323 |
| Detailed Description | Diode 75 V 150mA Surface Mount SOD-323 |
| Technology | Standard |
| Part Status | Active |
| Package/Case | SOD-323 |
| Product Categories | Diodes (General Purpose, Power, Switching) |
| RoHs Status | Rohs |
| In-stock | 15620 |
| Configuration | Single |
| Recovery Time | 4 ns |
| Forward Voltage Drop | 1 V |
| Maximum Reverse Leakage Current | 5 uA |
| Operating Temperature Range | - 55 C to + 150 C |
| Mounting Style | SMD/SMT |
| Packaging | Reel |
| Maximum Operating Temperature | + 150 C |
| Minimum Operating Temperature | - 55 C |
| Factory Pack Quantity | 3000 |
| Max Surge Current | 2 A |
| Forward Continuous Current | 0.3 A |
| Manufacturer Part No. | 1N4148WX-TP |
| Peak Reverse Voltage | 75 V |
| Product Category | Diodes - General Purpose, Power, Switching |
| Product | Switching Diodes |
| Alternate Part No. | 833-1N4148WX-TP |
| Type of diode | switching |
| Mounting | SMD |
| Max. off-state voltage | 100V |
| Load current | 0.15A |
| Max. load current | 0.3A |
| Reverse recovery time | 4ns |
| Semiconductor structure | single diode |
| Features of semiconductor devices | fast switching |
| Capacitance | 4pF |
| Case | SOD323 |
| Max. forward voltage | 1.25V |
| Max. forward impulse current | 1A |
| Power dissipation | 0.2W |
| Kind of package | reel, |
