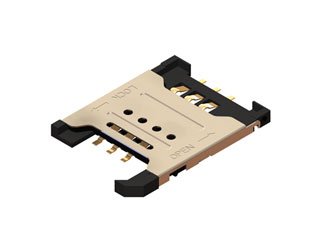

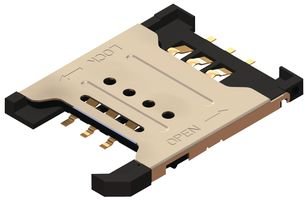

Mini SIM Card Connector with Hinged Cover
Mini SIM Card Connector with Hinged Cover
Regular price
$0.14 USD
Regular price
Sale price
$0.14 USD
Unit price
/
per
303 in stock
Condition: New
Brand: GLOBAL CONNECTOR TECHNOLOGY
MPN: SIM5051-6-0-18-00-A
MPN Xref:SIM5051-6-0-18-00-A, 99R5289, 2414129, 94T2308, 2443096, 2443097, 2114162
This product is a Mini SIM card connector with hinged cover, suitable for cards. It is RoHS compliant and has a flammability rating of UL94V-0. The connector is designed for SMT mounting and has a contact plating of gold flash. It can handle a current rating of 1A and has a minimum insulation resistance of 1000MΩ. The connector is available in Tape & Reel packaging and has a maximum number of cycles of 5000. The operating temperature range is -40°C to 85°C.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: GLOBAL CONNECTOR TECHNOLOGY
MPN: SIM5051-6-0-18-00-A
MPN Xref:SIM5051-6-0-18-00-A, 99R5289, 2414129, 94T2308, 2443096, 2443097, 2114162
This product is a Mini SIM card connector with hinged cover, suitable for cards. It is RoHS compliant and has a flammability rating of UL94V-0. The connector is designed for SMT mounting and has a contact plating of gold flash. It can handle a current rating of 1A and has a minimum insulation resistance of 1000MΩ. The connector is available in Tape & Reel packaging and has a maximum number of cycles of 5000. The operating temperature range is -40°C to 85°C.
Packing | Tape & Reel (TR)/Cut Tape (CT)/Tray/Tube |
RoHs Status | Lead free/RoHS Compliant |
Package/Case | |
Type of connector | for cards |
Kind of card | Mini SIM |
Connector variant | with hinged cover |
Electrical mounting | SMT |
Contact plating | gold flash |
Number of pins | 6 |
Operating temperature | -40...85?C |
Flammability rating | UL94V-0 |
Height | 1.85mm |
Contact material | phosphor bronze |
Kind of package | reel |
Current rating | 1A |
Min. insulation resistance | 1000M? |
Enclosure material | thermoplastic |
Max number of cycles | 5000 |
Design | on/off switch |
