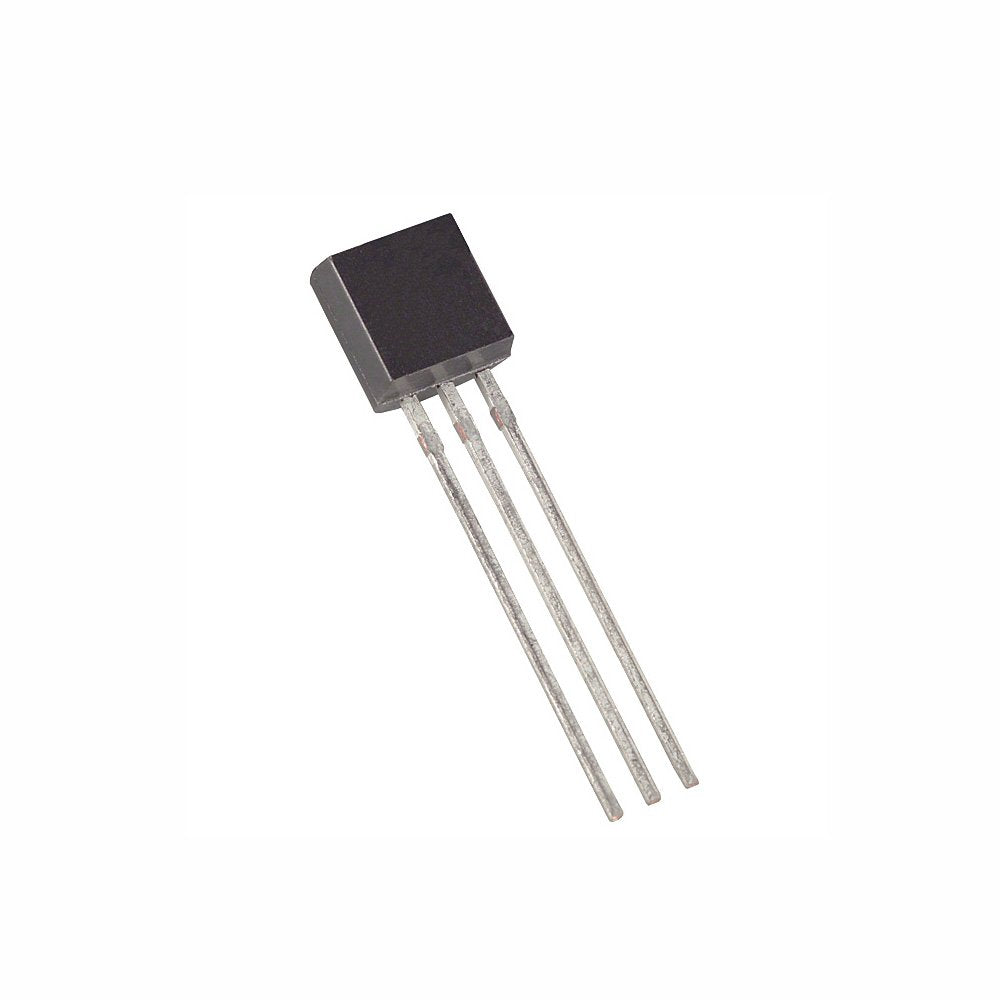

Transistor Silicon NPN - 45V, 0.1A, 500mW

Transistor Silicon NPN - 45V, 0.1A, 500mW

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

140 in stock

Condition: New
Brand: DIOTEC SEMICONDUCTOR
MPN: BC547C
MPN Xref:BC547C, BC547COS-ND, 101290, 17101461, TDSTD7655, 17231695, DIOT-0000875, BC547C-DIO, BC547CFS-ND

This transistor is a NPN bipolar transistor with a collector-emitter voltage of 45V and a collector current of 0.1A. It has a power dissipation of 500mW and is housed in a TO92 case. The current gain is 400 and it can be mounted through-hole (THT). The transistor is in an Ammo Pack package and has an EAN number of 5052406911430.
Case TO92
EAN 5052406911430
Type Transistor Silicon NPN
Manufacturer Diotec
Vbr CBO 50
Vbr CEO 45
Max. PD (W) 500m
C(ob) (F) 2.5p
Derate (Amb) (W/?C) 4.0m
hfe 600
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 15n
Polarity NPN
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 5.0
Oper. Temp (?C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 ?C
Collector Capacitance (Cc) 4.5 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 420
Type of transistor NPN
Polarisation bipolar
Collector-emitter voltage 45V
Collector current 0.1A
Power dissipation 500mW
Current gain 400
Mounting THT
Kind of package Ammo Pack
