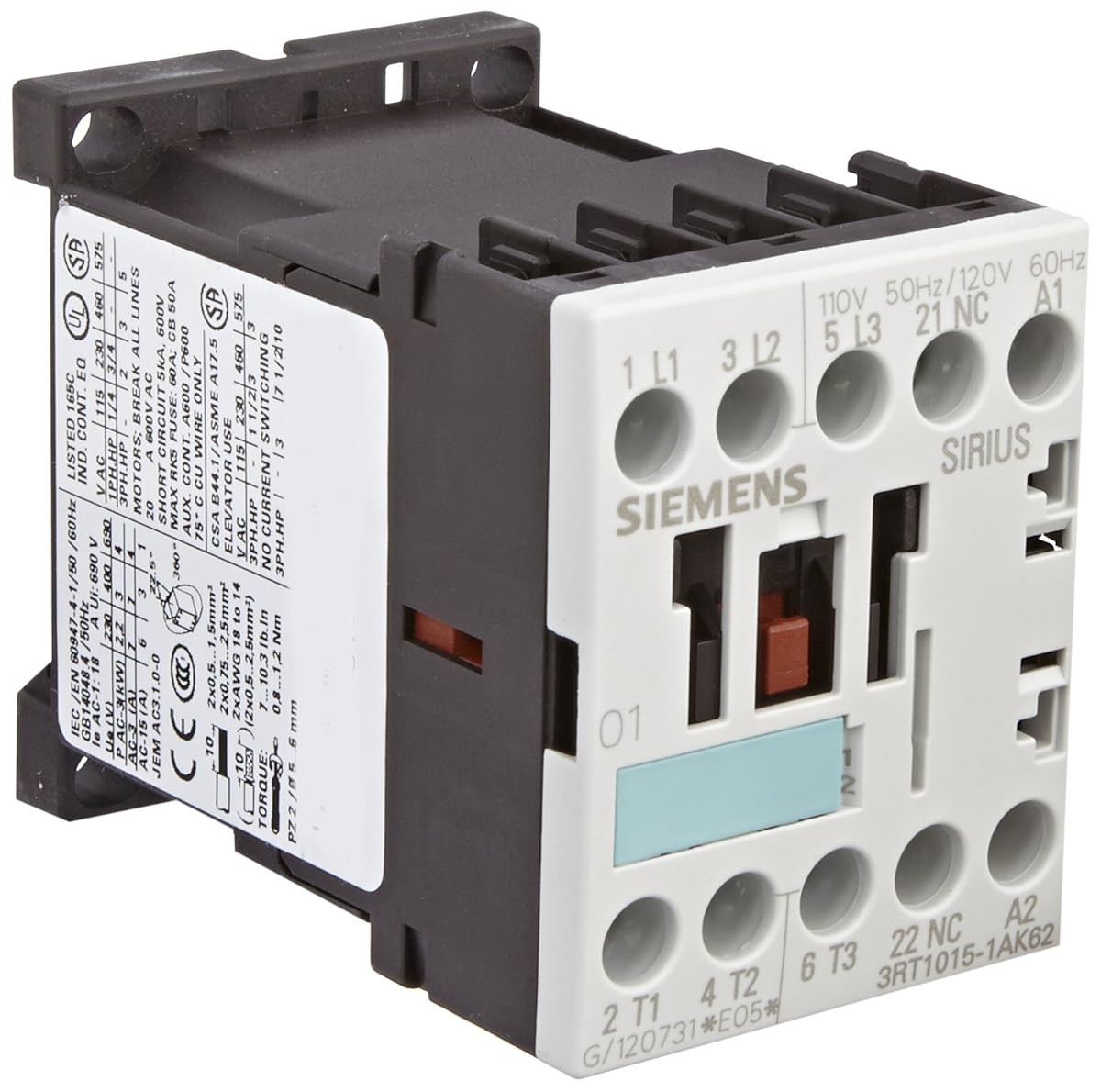

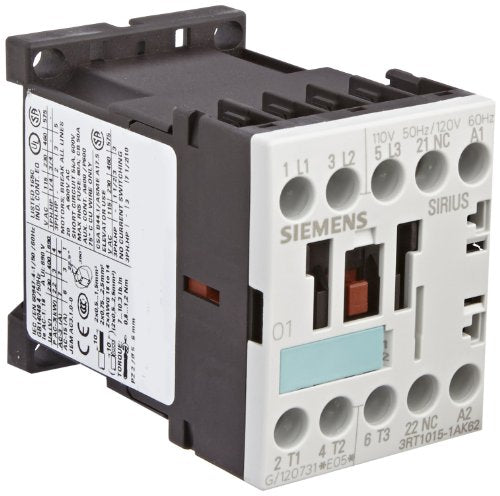

3RT Series Contact 3 Poles 7A 110-120VAC DIN Rail Mounted Screw Terminal

Condition: New
Brand: Siemens
MPN: 3RT10151AK62
MPN Xref:3RT10151AK62

This contactor is a part of the 3RT series and has a coil voltage of 110-120VAC. It has a contact current rating of 7 A and a control voltage of 110-120 VAC. It is DIN rail mounted and has screw terminals for termination.

Gross Weight	0 lbs
Item Number:	3RT10151AK62
Item Category:
Replaced By	3RT2015-1AK62
Part Number	3RT10151AK62
Poles (Open)	3
Amps	7
HP @ 230V (3ph)	2
HP @ 460V (3ph)	3
Coil Voltage	110-120VAC
N/C Contacts	1
Contact Current Rating	7 A
Control Voltage	110-120 VAC
Current Rating	18 A
Mounting Type	DIN Rail Mounted
Number of Poles	3
Primary Type	Contactor
Series	3RT Series
Size	S00
Standards	IEC ; UL ; CSA
Terminal Type	Screw Terminal
Termination	Screw
Type	Contactor
UPC Code	4011209348127
