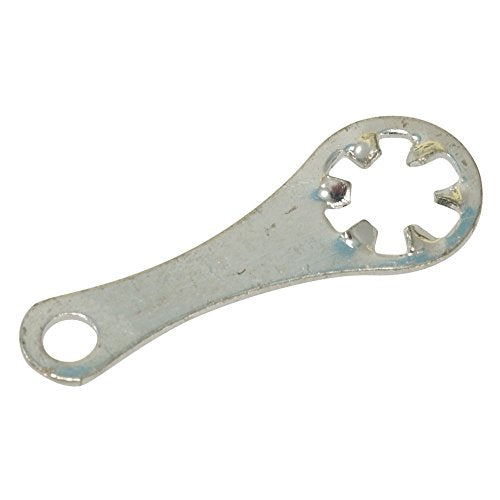

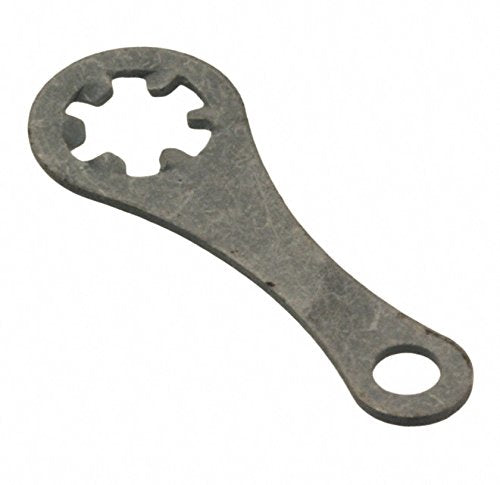

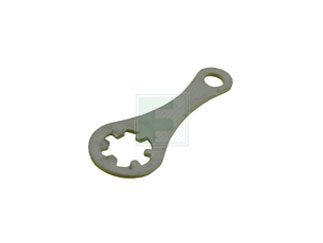

Brass Solder Lug Ring for Electrical Soldering and Screw Mounting

Condition: New
Brand: Keystone Electronics
MPN: 904
MPN Xref:904, GR0031433, KEY904, 904K-ND, 70460612, 190, G9316212, 12F326, G5869954

This solder lug ring is perfect for electrical soldering and mechanical screw mounting. Made of brass with a tinned finish, it has an overall length of 22.2mm. The ring inside diameter is 3.66mm and it has a thickness of 0.45mm. The hole for screw is M3,5 and it is designed for 6 stud size. Available in bulk packaging.

Manufacturer	KEYSTONE
Type of tip	solder lug ring
Thickness	0.45mm
Hole for screw	M3,5
Ring inside diameter	3.66mm
Electrical mounting	soldering
Mechanical mounting	screw
Contact material	brass
Contact plating	tinned
Overall length	22.2mm
Spatial orientation	straight
Category	Connectors, Interconnects
Series	-
Part Status	Active
Terminal Type	Long Stem, Shaped
Style	Lockwasher, Internal Tooth
Stud/Tab Size	6 Stud
Hole Diameter	0.093" (2.36mm)
Mounting Type	Flat
Length - Overall	0.875" (22.23mm)
Contact Material	Brass
Contact Finish	Tin
Package	Bulk
Finish Plating	Tin Plate
Hole Size	#6 (.140)
Material	Brass
Special Features	Lockwasher
