Isolated Module - 36V to 72V Input, 5V Output, 1A Max - Power Supplies

Condition: New
Brand: MEAN WELL
MPN: SCW05C-05
MPN Xref:SCW05C-05, 709-SCW05C-05

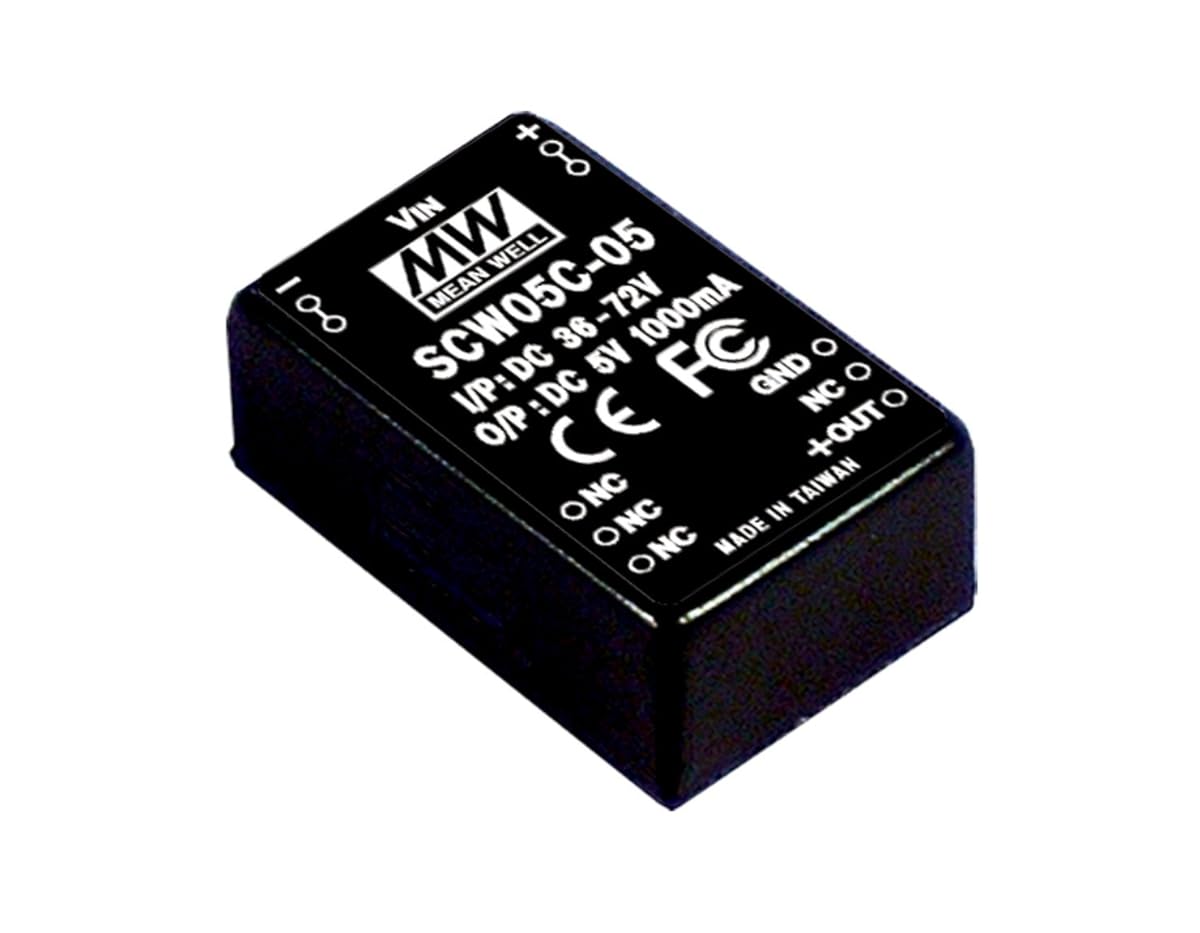

This isolated module is designed to convert input voltage from 36V to 72V to a 5V DC output. It has a maximum output current of 1A and is suitable for ITE (Commercial) applications. The module has a through-hole mounting type and is packaged in a 24-DIP module with 8 leads.

Type of converter	DC/DC
Power	5W
Input voltage	36...72V
Output voltage	5V DC
Output current	1000mA
Case	DIP
Body dimensions	31.8x20.3x12.2mm
Weight	15g
Efficiency	77%
Operating temperature	-40...71?C
Switching frequency	50kHz
Protection	anti-overload OPP,
Insulation voltage	1000V DC
Manufacturer series	SCW05
Number of outputs	1
Category	Power Supplies - Board Mount
Series	SCW05 (5W)
Package	Tube
Part Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	72V
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	1A
Power (Watts)	5 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features
Operating Temperature	-40?C ~ 71?C (With Derating)
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package	-
No. of Output	Single
DC Input Range	36~72V
Output	5V
Approx. Wattage	5W
Mechanical Form	Module
Warranty	2 Years Warranty
