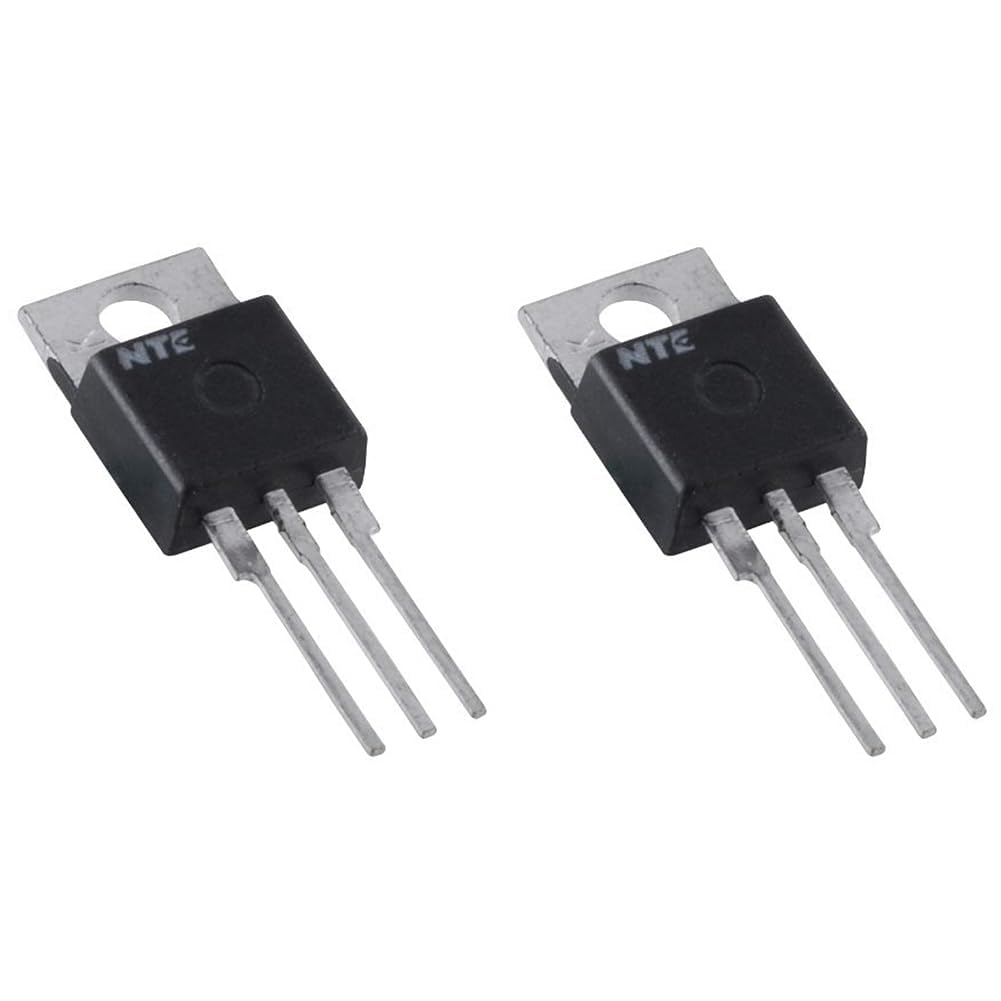

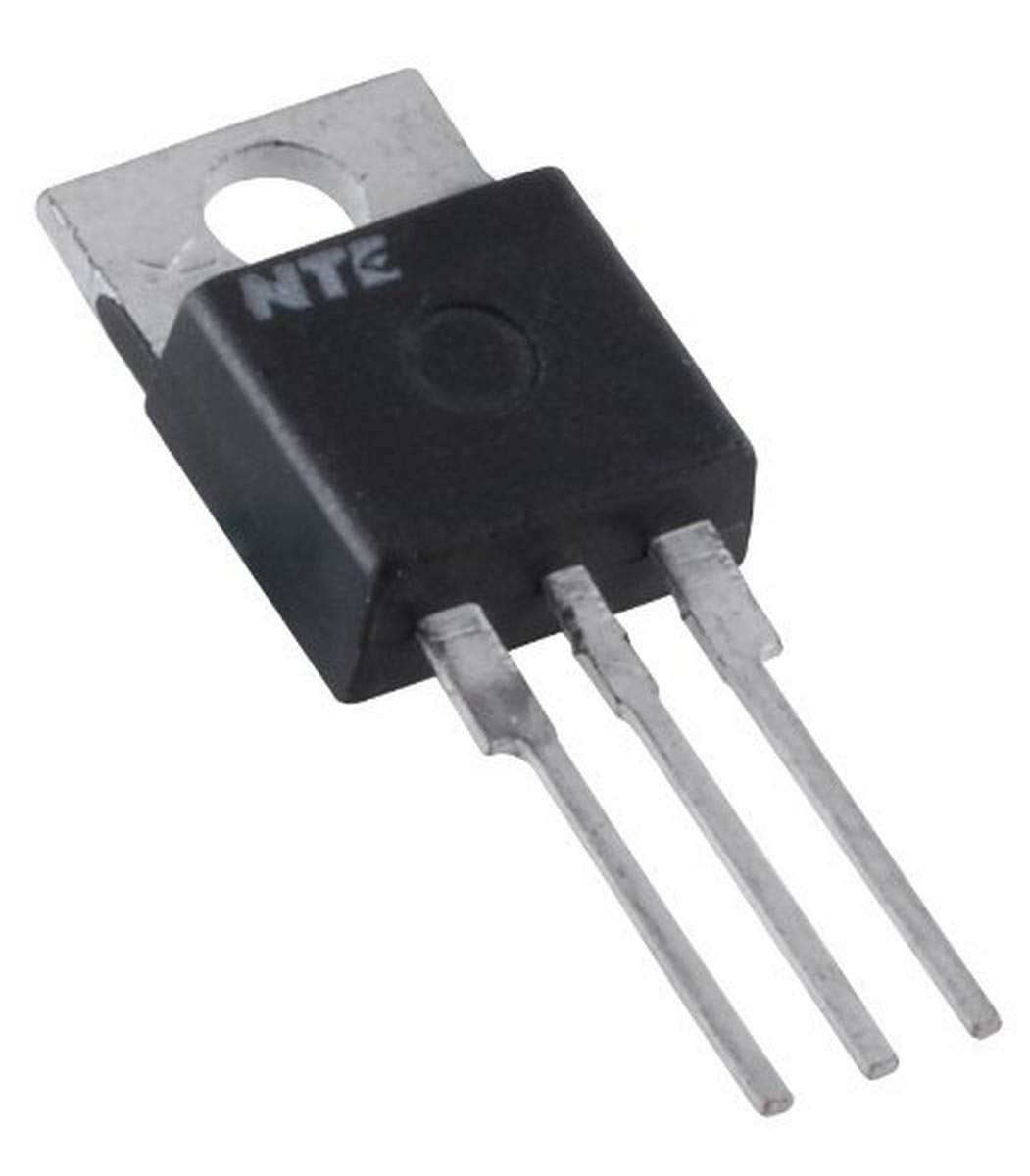

NTE2987 N-MOSFET Transistor 100V 14A

Condition: New
Brand: NTE ELECTRONICS
MPN: NTE2987
MPN Xref:NTE2987

This MOSFET transistor has a drain-source voltage of 100V and a drain current of 14A. It has a power dissipation of 105W and is in a TO-220 case.

In Stock	No
Manufacturer Part Number	NTE2987
Item Number	NTE2987
Gross Weight	0.017 lbs
Net Weight	0 lbs
Part Number	NTE2987
Product Type	Transistors & Modules
California Residents
Type of transistor	N-MOSFET
Polarisation	unipolar
Drain-source voltage	100V
Drain current	14A
Pulsed drain current	80A
Power dissipation	105W
Case	TO220
Gate-source voltage	?15V
On-state resistance	0.12?
Mounting	THT
Kind of channel	enhanced
Category	Discrete Semiconductor Products
Series	-
Package	Bag
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25?C	20A
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	120mOhm @ 10A, 5V
Vgs(th) (Max) @ Id	2.5V @ 250?A
Vgs (Max)	?15V
FET Feature	Logic Level Gate, 4V Drive
Power Dissipation (Max)	105W (Tc)
Operating Temperature	175?C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
Drain to Source Voltage (Vdss)	100V
Input Capacitance (Ciss) (Max) @ Vds	1500nC @ 25V
