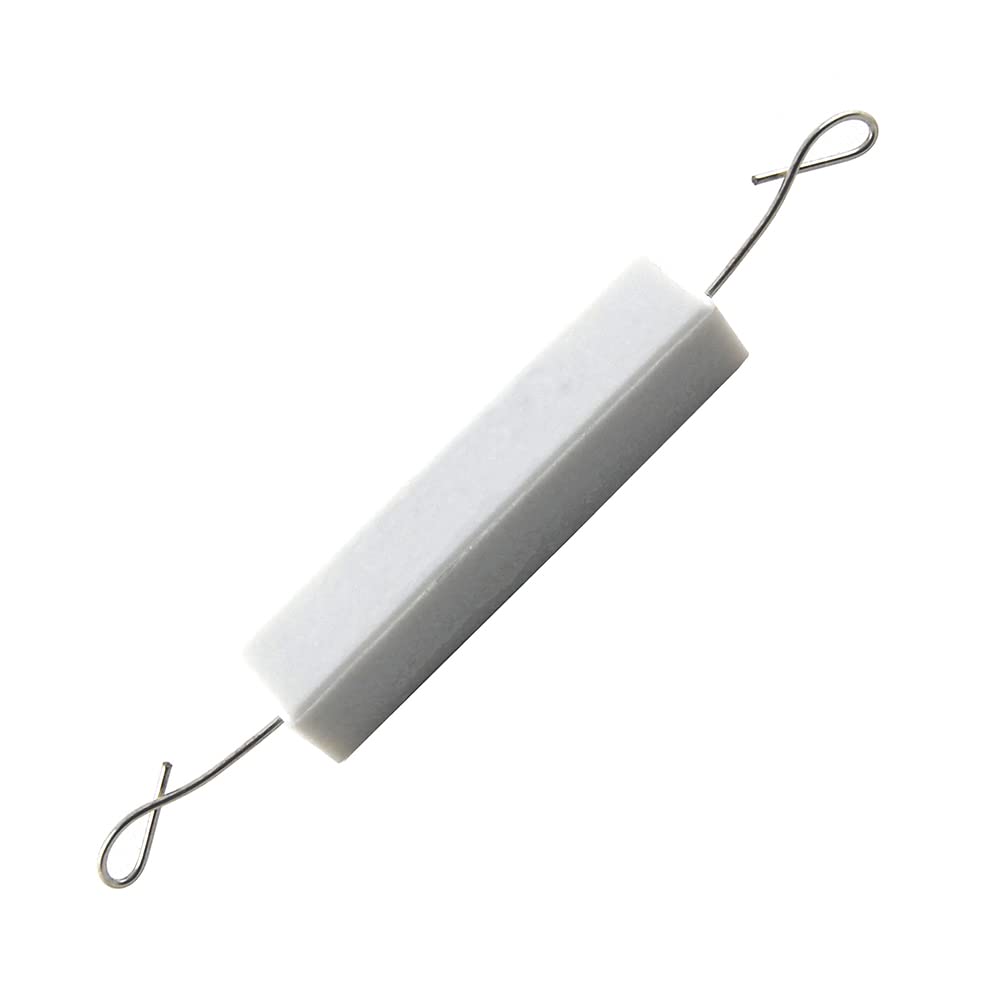

10W118 Resistor - 180 Ohms, 10W, 5% Tolerance
10W118 Resistor - 180 Ohms, 10W, 5% Tolerance
Regular price
$0.19 USD
Regular price
Sale price
$0.19 USD
Unit price
/
per
Shipping calculated at checkout.
47 in stock
Couldn't load pickup availability
Condition: New
Brand: NTE Electronics
MPN: 10W118
MPN Xref:10W118, 12209, GR0009284, T350A, T350-A, G4009022
This resistor is a wirewound, ceramic film resistor with a resistance of 180 ohms, a power rating of 10W, and a tolerance of 5%. It has an axial lead package type and a maximum AC voltage of 550V. It is suitable for use in a variety of applications.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: NTE Electronics
MPN: 10W118
MPN Xref:10W118, 12209, GR0009284, T350A, T350-A, G4009022
This resistor is a wirewound, ceramic film resistor with a resistance of 180 ohms, a power rating of 10W, and a tolerance of 5%. It has an axial lead package type and a maximum AC voltage of 550V. It is suitable for use in a variety of applications.
Manufacturer Part Number | 10W118 |
Item Number | 10W118 |
Product Series | Cermet Film |
Resistance | 180 Ohms |
Wattage | 10 W |
Composition | Wirewound |
Package Type | Axial Lead |
Terminal Type | Axial Leads |
Max AC Voltage | 550 |
Temperature (F) | -67 to 311 Degrees F |
Tolerance % | 5 % |
Temp Coefficient (ppm/C) | 300 |
Lead Length | 1.5 |
Lead Diameter | 0.036 |
Net Weight | 0 lbs |
Gross Weight | 0 lbs |
Part Number | 10W118 |
Product Type | Resistors |
California Residents | |
Manufacturer Product Number | 10W118 |
Description | RES 180 OHM 5% 10W AXIAL |
Detailed Description | 180 Ohms ?5% 10W Through Hole Resistor Axial Wirewound |
Category | Resistors |
Series | - |
Package | Bag |
Product Status | Active |
Tolerance | ?5% |
Power (Watts) | 10W |
Features | - |
Temperature Coefficient | ?300ppm/?C |
Operating Temperature | -55?C ~ 155?C |
Package / Case | Axial |
Supplier Device Package | Axial |
Size / Dimension | 0.380" Square x 1.890" L (9.65mm x 48.00mm) |
Height - Seated (Max) | - |
Number of Terminations | 2 |
Failure Rate | - |
Height | 0.38 Inches |
Width | 1.88 Inches |
Depth | 0.38 Inches |
