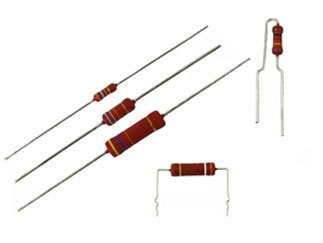

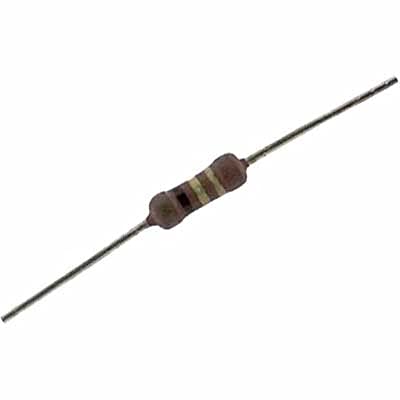

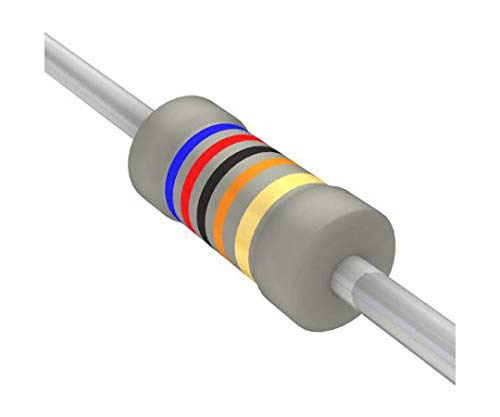

Metal Film Resistor - 10 kOhms 1W ±5% Automotive AEC-Q200

Condition: New
Brand: VISHAY
MPN: PR01000101002JR500
MPN Xref:PR01000101002JR500, 70121815, PPC10KW-1TR-ND, 594-5073NW10K00J, 4831068, 1771544, 91C4006, 25R4231, PPC10KW-1CT-ND

This metal film resistor is suitable for automotive applications and has a power rating of 1W. It has a resistance value of 10 kOhms with a tolerance of ±5%. The resistor is lead-free and RoHS compliant, with an operating temperature range of -55°C to 155°C.

Manufacturer Product Number	PR01000101002JR500
Description	RES 10K OHM 1W 5% AXIAL
Manufacturer Standard Lead Time	10 Weeks
Detailed Description	10 kOhms ?5% 1W Through Hole Resistor Axial Automotive AEC-Q200, Flame Retardant Coating, Safety Metal Film
Category	Resistors
Series	PR01 Series
Package	Tape & Reel (TR)
Product Status	Active
Resistance	10 kOhms
Tolerance	0.05 %
Power (Watts)	1W
Composition	Metal Film
Features	Automotive AEC-Q200, Flame Retardant Coating, Safety
Temperature Coefficient	250 PPM / K
Operating Temperature	-55?C ~ 155?C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
Alternate Mfr Part Number	PR01000101002JR500
Dimensions	2.5 Dia. x 8.5 L ; Maximum mm
Element Material	Metal Film
Lead Diameter	0.58 mm
Package Type	Ceramic Housed
Packaging	Cut Tape
Power Rating	1 W
Resistance Range	1 to 99 Kiloohms
Resistance Temperature Coefficient	+/- 250 ppm/K (Max.)
Termination	Axial Leads
Test Condition Power Rating	@ +70°C
Voltage Rating	350 V
Part Status	Active
Case Diameter	2.5 mm
Termination Style	Axial
Case Length	6.5 mm
Manufacturer Part No.	PR01000101002JR500
Type	High power in small packages
Alternate Part No.	594-5073NW10K00J
Operating Temperature Range	- 55 C to + 175 C
Product Category	Metal Film Resistors - Through Hole
Categories	Resistors
Composition	Metal Film
Failure Rate	-
Features	Automotive AEC-Q200, Flame Retardant Coating, Safety
Height - Seated (Max)	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Manufacturer Part Number	PR01000101002JR500
Manufacturer Standard Lead Time	18 Weeks
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Operating Temperature	-55?C ~ 155?C
Package / Case	Axial
Packaging	Reel
Power (Watts)	1W
Resistance	10 kOhms
Series	PR01
Size / Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Standard Package	5,000
Supplier Device Package	Axial
Temperature Coefficient	?250ppm/?C
Tolerance	?5%
