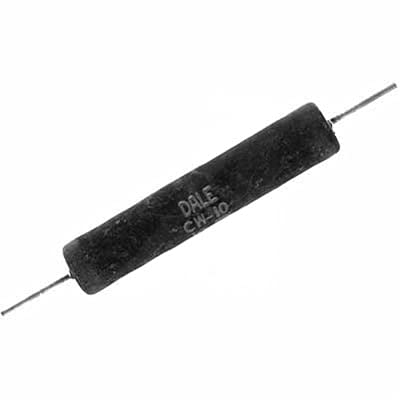

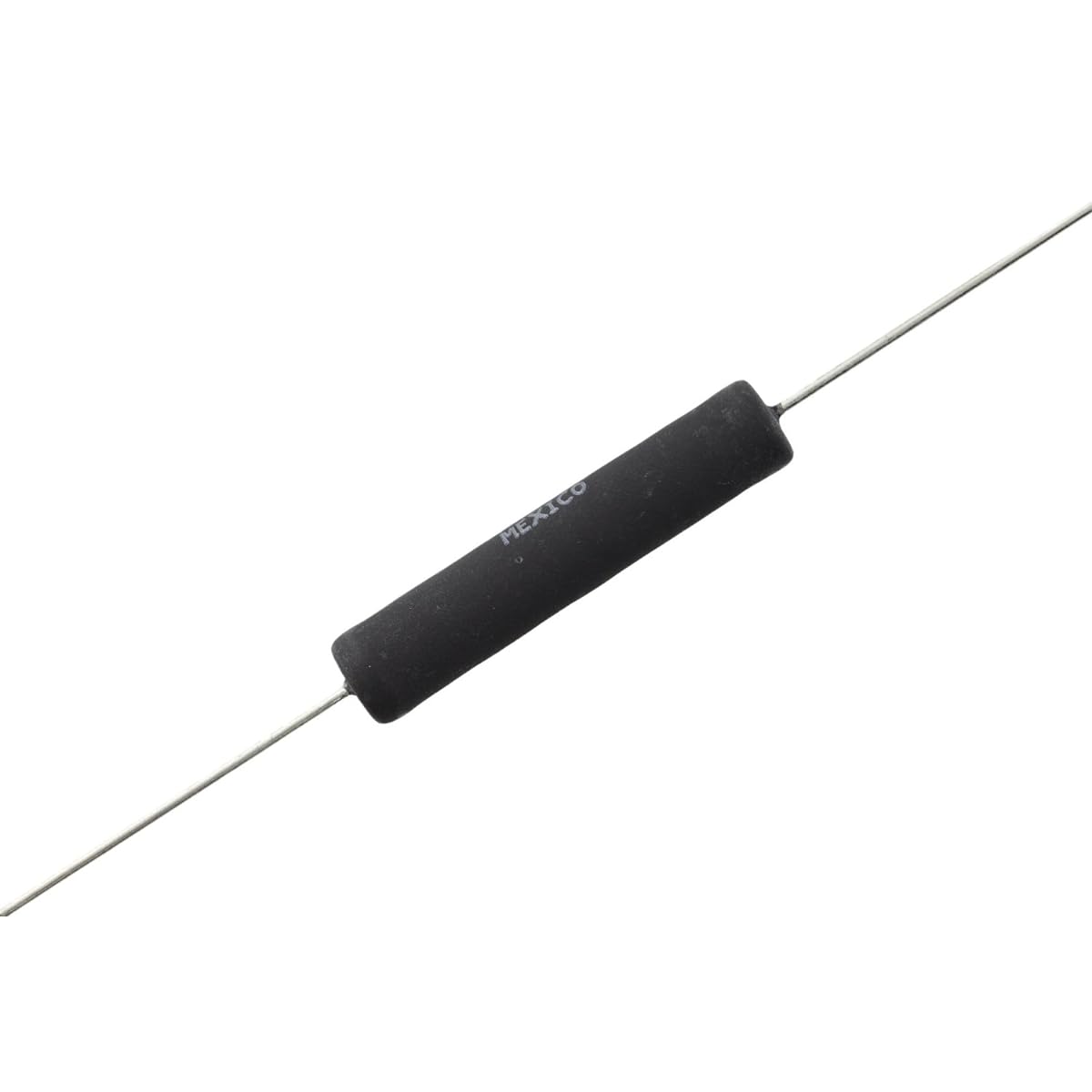

Wirewound Resistor

Condition: New
Brand: VISHAY
MPN: CW01020K00JE12
MPN Xref:CW01020K00JE12, CW01020K00JE12-ND, 70204815, 71-CW01020K00JE12

This wirewound resistor has a resistance of 20 kOhms and a power rating of 10W. It is moisture resistant and has a temperature coefficient of ±30 ppm/°C. Suitable for operating temperatures ranging from -65°C to 350°C.

Part Status	Active
Tolerance	0.05 %
Power (Watts)	13W
Composition	Wirewound
Features	Moisture Resistant
Temperature Coefficient	±30 ppm/°C
Operating Temperature	-65?C ~ 350?C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.375" Dia x 1.781" L (9.52mm x 45.24mm)
Height - Seated (Max)	-
Failure Rate	-
Number of Terminations	2
Resistance	20 Kiloohms
Element Material	Wirewound
Package Type	Silicone Coat
Packaging	Bulk
Power Rating	10 W
Resistance Range	1 to 99 Kiloohms
Series	CW Series
Termination	Axial Leads
