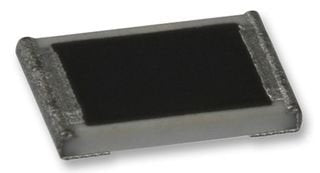

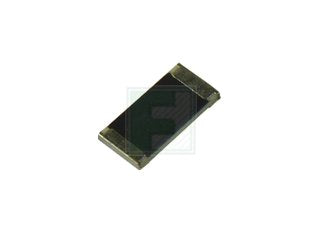

CRCW12 Series 22 Ohm Resistor

CRCW12 Series 22 Ohm Resistor

Regular price $0.03 USD
Regular price Sale price $0.03 USD
Sale Sold out
Shipping calculated at checkout.

200 in stock

Condition: New
MPN Xref:CRCW120622R0FKEA, 71-CRCW1206-22-E3, 24W4159, 541-22.0FTR-ND, 541-22.0FDKR-ND, 6791929, 53K2154, 2139280, 2123676

This resistor is part of the CRCW12 series and has a resistance of 22 ohms with a tolerance of ±1%. It has a power rating of 0.25W and is composed of thick film. The resistor is automotive AEC-Q200 compliant and has an operating temperature range of -55°C to 155°C. It is available in a 1206 package and is suitable for tape and reel packaging.
Category Resistors
Series CRCW12 Series
Package Tape & Reel (TR)
Part Status Active
Resistance 22 Ohms
Tolerance ±1 %
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ?100ppm/?C
Operating Temperature -55?C ~ 155?C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Failure Rate -
Base Product Number CRCW1206
Type Resistor
Type of resistor thick film
Mounting SMD
Case - inch 1206
Case - mm 3216
Power 0.25W
Max. operating voltage 200V
Operating temperature -55...125?C
Product Status Active
Alternate Package For Tape & Reel Packaging: See Allied #70204211
Dimensions 0.126" x 0.063" x 0.022" (3.2 x 1.6 x 0.55mm) L x W x H
Element Material Thick Film
Package Type 1206 (3216 mm)
Packaging Cut Tape
Power Rating 0.25 W
Resistance Range 0 to 99 Ohms
Termination SMD
