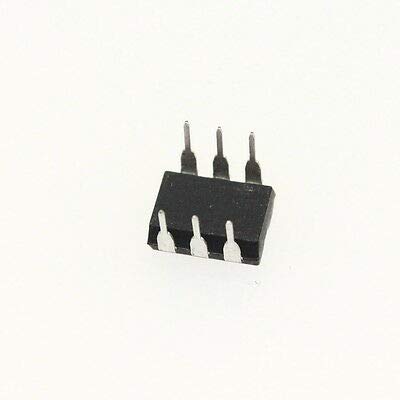

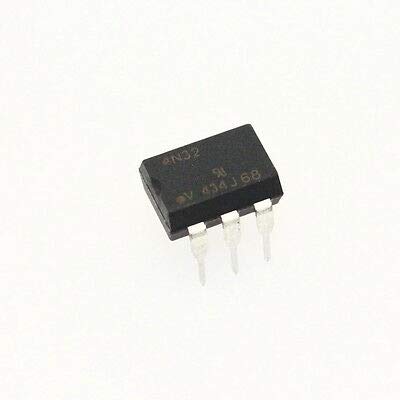

High Voltage Optocoupler with Transistor Output

Condition: New
Brand: Vishay Semiconductor Opto Division
MPN: 4N32
MPN Xref:4N32, 17535340, 4N32-X000-ND, 1852738, 1703509, 4N32EL-ND, 88K2145, 931809, 4N32-X000

This optocoupler is a 1-channel transistor output device with an insulation voltage of 5.3kV. It has a CTR@If of 500%@10mA and a turn-on time of 5?s. The optocoupler is suitable for applications requiring high voltage isolation and fast response times.

Item Number	4N32
Manufacturer Part Number	4N32
Manufacturer	VISHAY
Family Series	Vishay Infineon Technologies Miscellaneous
Net Weight	0.0624 lbs
Gross Weight	0.001 lbs
Type of optocoupler	optocoupler
Mounting	THT
Number of channels	1
Kind of output	transistor
Insulation voltage	5.3kV
CTR@If	500%@10mA
Collector-emitter voltage	30V
Case	DIP6
Turn-on time	5?s
Turn-off time	100?s
Manufacturer Product Number	4N32
Description	OPTOISO 5.3KV DARL W/BASE 6DIP
Manufacturer Standard Lead Time	6 Weeks
Detailed Description	Optoisolator Darlington with Base Output 5300Vrms 1 Channel 6-DIP
Category	Isolators
Series	-
Package	Tube
Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	500% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5?s, 100?s (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base
Voltage - Output (Max)	30V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	1V (Typ)
Operating Temperature	-55?C ~ 100?C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Base Product Number	4N32
Channel Type	N
Current Transfer Ratio	500
Forward Voltage, Diode	1.25 V (Typ.)
Operating and Storage Temperature	- 55 to + 100, - 55 to + 150 C
Package Type	6-Pin DIP
Power Dissipation	100 mW
Special Features	N-Channel
Turn Off Delay Time	100 μs (Typ.)
Turn On Delay Time	5.0 μs (Max.)
Type	Opto
EAN	5052406834067
CTR (%)	500
V(isol) Max. (V)	2.5k
Ic Max. (A)	100m
I(dark) Max. (A)	100n
If Max. (A)	100m
@If (test) (A)	10m
PD Max. (W)	200m
t(resp) (S)	5.0u
Vbr CEO	30
Vf Max.	1.5
@VCE (test)	10
Oper. Temp (?C) Min	-55
Oper. Temp (?C) Max.	100
@If (A)	10m
Number of Chan.	1
Pinout Equivalence Number	6-19
Surface Mounted Yes/No	NO
Part Status	-
