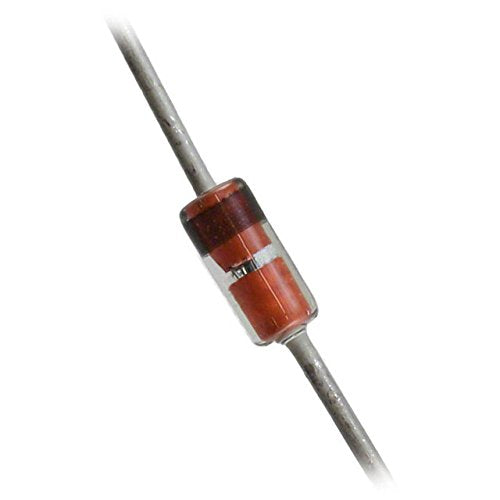

Small Signal Zener Diode - 18V

Small Signal Zener Diode - 18V

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

131 in stock

Condition: New
Brand: Vishay
MPN: 1N5248B-TR
MPN Xref:1N5248B-TR, 8116015, 55R1267, 1N5248BVSTR-ND, 70061646, 18M3557, 1N5248B-TR., 1N5248BVSCT-ND, VISH-0079638

This product is a small signal zener diode with a zener voltage of 18V and a power dissipation of 500mW. It has a forward voltage of 1.1V and a reverse current of 7mA.
Configuration Single
Diameter 1.7 mm
Dimensions 1.7 Dia. x 3.9 L mm
Forward Current 200 mA
Forward Voltage 1.1 V
Impedance 21 Ω
Junction to Ambient Thermal Resistance 300 K/W
Length 0.153 in
Maximum Junction Temperature 175 °C
Maximum Operating Temperature +175 °C
Mounting Type Through Hole
Number of Pins 2
Operating Temperature -
Package Type DO-35
Power Dissipation 500 mW
Primary Type Zener
Product Header Small Signal Zener Diode
Reverse Current 7 mA
Reverse Voltage 18 V
Series -
Switching Speed Standard
Temperature Operating Range Maximum of +175 °C
Test Current 7 μA
Type Small Signal
Typical Voltage Temperature Coefficient 0.085 %/K
Zener Current 7 mA
Zener Type Silicon Planar, Small Signal
Zener Voltage 18 V
Zener Voltage Tolerance +/-5 %
Category Discrete Semiconductor Products
Package Tape & Reel (TR)
Product Status Active
Voltage - Zener (Nom) (Vz) 18 V
Tolerance ?5%
Power - Max 500 mW
Impedance (Max) (Zzt) 21 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 200 mA
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35 (DO-204AH)
Base Product Number 1N5248
Part Status Active
