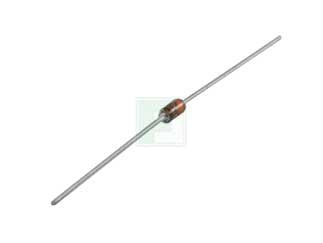

Rectifying Diode 600V 1A DO204AL

Rectifying Diode 600V 1A DO204AL

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

40 in stock

Condition: New
Brand: Vishay Semiconductor Diodes Division
MPN: 1N4937-E3/54
MPN Xref:1N4937-E3/54, 2011483, 70217687, VISH-0079615, 1687636, 1N4937E3/54, 1N4937-E3/54GITR-ND, 1N4937-E3/54**MULT1, B00DECX4OU

This is a rectifying diode with a maximum off-state voltage of 0.6kV and a load current of 1A. It has fast switching capabilities and a capacitance of 12pF. The diode is packaged in a reel and has a DO41 case. The manufacturer product number is 1N4937-E3/54.
Manufacturer VISHAY
Type of diode rectifying
Mounting THT
Max. off-state voltage 0.6kV
Load current 1A
Semiconductor structure single diode
Features of semiconductor devices fast switching
Capacitance 12pF
Kind of package reel,
Max. forward impulse current 30A
Case DO41
Max. forward voltage 1.2V
Reverse recovery time 200ns
Manufacturer Product Number 1N4937-E3/54
Description DIODE GEN PURP 600V 1A DO204AL
Manufacturer Standard Lead Time 10 Weeks
Detailed Description Diode 600 V 1A Through Hole DO-204AL (DO-41)
Category Discrete Semiconductor Products
Mfr Vishay General Semiconductor - Diodes Division
Series 1N4937 Series
Package Tape & Reel (TR)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 200 ns
Current - Reverse Leakage @ Vr 5 ?A @ 600 V
Capacitance @ Vr, F 12pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-204AL (DO-41)
Operating Temperature - Junction -50?C ~ 150?C
Base Product Number 1N4937
Configuration Single
Continuous Forward Current 1 A
Current Squared Time Rating 3.7 A sq. s
Diameter 2.7 mm
Dimensions 2.7 Dia. x 5.2 L mm
Diode Type Rectifier
Forward Voltage 1.2 V
Junction Capacitance 12 pF
Length 0.204 in
Maximum Junction Temperature +175 °C
Maximum Operating Temperature +150 °C
Minimum Operating Temperature -50 °C
Non Repetitive On State Peak Current 30 A
Number of Pins 2
Operating Temperature -50 to +150 °C
Package Type DO-204AL
Peak Current 5 μA
Primary Type Rectifier
Recovery Time 200 ns
Rectifier Type Switching
Repetitive Peak Voltage 600 V
Reverse Current 5 μA
Reverse Recovery Time 200 ns
Surge Current 30 A
Temperature Operating Range -50 to +150 °C
Product Header Fast Switching Plastic Rectifier
Standards UL-94V-0
Termination Matte Tin Plated Leads
