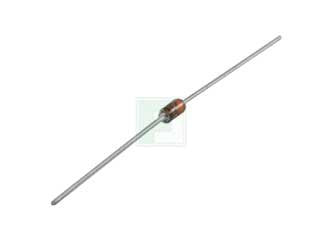

DIODE ZENER 47V 1.3W DO41

DIODE ZENER 47V 1.3W DO41

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

120 in stock

Condition: New
Brand: VISHAY
MPN: 1N4756A-TR
MPN Xref:1N4756A-TR, 4796421, 1N4756AVSTR-ND, VISH-0079598, 1N4756A-T/R, B00DEE1DDW, 78-1N4756A, 55R1245, 1N4756A-T/R**MULT1

DIODE ZENER 47V 1.3W DO41
Manufacturer Product Number 1N4756A-TR
Description DIODE ZENER 47V 1.3W DO41
Manufacturer Standard Lead Time 14 Weeks
Detailed Description Zener Diode 47 V 1.3 W ?5% Through Hole DO-204AL (DO-41)
Category Discrete Semiconductor Products
Series 1N4756 Series
Package Tape & Reel (TR)
Product Status Active
Voltage - Zener (Nom) (Vz) 47 V
Tolerance ?5%
Power - Max 1.3 W
Impedance (Max) (Zzt) 80 Ohms
Current - Reverse Leakage @ Vr 5 ?A @ 35.8 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Operating Temperature 175?C (TJ)
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-204AL (DO-41)
Base Product Number 1N4756
Part Status Active
Packaging Reel
Package/Case DO-41
Manufacturer Part No. 1N4756A-TR
Mounting Style Through Hole
Product Category Zener Diodes
Voltage Tolerance 5 %
Zener Current 5.5 mA
Maximum Reverse Leakage Current 5 uA
Configuration Single
Alternate Part No. 78-1N4756A
Zz - Zener Impedance 80 Ohms
Minimum Operating Temperature - 65 C
Pd - Power Dissipation 1.3 W
Vz - Zener Voltage 47 V
Maximum Operating Temperature +175 °C
Diameter 2.6 mm
Dimensions 2.6 Dia. x 4.1 L mm
Forward Current 200 mA
Forward Voltage 1.2 V
Impedance 80 Ω
Junction to Ambient Thermal Resistance 110 K/W
Length 0.161 in
Maximum Junction Temperature 175 °C
Number of Pins 2
Package Type DO-41
Power Dissipation 1300 mW
Primary Type Zener
Product Header Silicon Planar Power Zener Diode
Reverse Current 5.5 mA
Reverse Voltage 47 V
Surge Current 95 mA
Switching Speed Standard
Temperature Operating Range Maximum of +175 °C
Test Current 5.5 mA
Type Silicon
Zener Type Silicon Planar
Zener Voltage 47 V
Zener Voltage Tolerance +/-5 %
