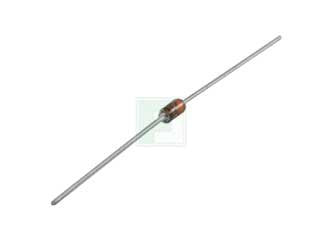

Silicon Planar Zener Diode 5.6V 1.3W DO-41

Silicon Planar Zener Diode 5.6V 1.3W DO-41

Regular price $0.07 USD
Regular price Sale price $0.07 USD
Sale Sold out
Shipping calculated at checkout.

155 in stock

Condition: New
MPN: 1N4734A-TR
MPN Xref:1N4734A-TR, 1469420, 33C2777, 1N4734AVSCT-ND, 1N4734AVSTR-ND, 78-1N4734A, 55R1225, 70061608

This is a general purpose silicon planar Zener diode with a nominal voltage of 5.6V and a maximum power dissipation of 1.3W. It has a maximum operating temperature of +175°C and a Zener voltage tolerance of 5%. The diode has a diode package type of DO-41 and a mounting type of through hole.
Manufacturer Product Number 1N4734A-TR
Description DIODE ZENER 5.6V 1.3W DO41
Manufacturer Standard Lead Time 14 Weeks
Detailed Description Zener Diode 5.6 V 1.3 W ?5% Through Hole DO-204AL (DO-41)
Category Discrete Semiconductor Products
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
Product Status Active
Voltage - Zener (Nom) (Vz) 5.6 V
Tolerance ?5%
Power - Max 1.3 W
Impedance (Max) (Zzt) 5 Ohms
Current - Reverse Leakage @ Vr 10 ?A @ 2 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Operating Temperature 175?C (TJ)
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-204AL (DO-41)
Base Product Number 1N4734
Package/Case DO-41
Product Categories Zener Diodes
RoHs Status Rohs
In-stock 25000
Maximum Reverse Leakage Current 10µA
Maximum Zener Impedance 5 Ohms
Maximum Operating Temperature +175 °C
Mounting Style Through Hole
Packaging Reel
Configuration Single
Minimum Operating Temperature - 65 C
Factory Pack Quantity 25000
Diode Configuration Single
Zener Type General Purpose
Zener Voltage Tolerance +/-5 %
Package Type DO-41
Maximum Power Dissipation 1.3 W
Test Current 45 mA
Diameter 2.6 mm
Height 4.1mm
Pin Count 2
Dimensions 2.6 (Dia.) x 4.1mm
Nominal Zener Voltage 5.6V
Stock Stock
Alternate Mfr Part Number 1N4734A-TR
Forward Current 200 mA
Forward Voltage 1.2 V
Impedance 5 Ω
Junction to Ambient Thermal Resistance 110 K/W
Length 0.161 in
Maximum Junction Temperature 175 °C
Number of Pins 2
Power Dissipation 1.3 W
Primary Type Zener
Product Header Silicon Planar Power Zener Diode
Reverse Current 45 mA
Reverse Voltage 5.6 V
Surge Current 810 mA
Switching Speed Standard
Temperature Operating Range Maximum of +175 °C
Type Silicon
Zener Current 45 mA
Zener Voltage 5.6 V
