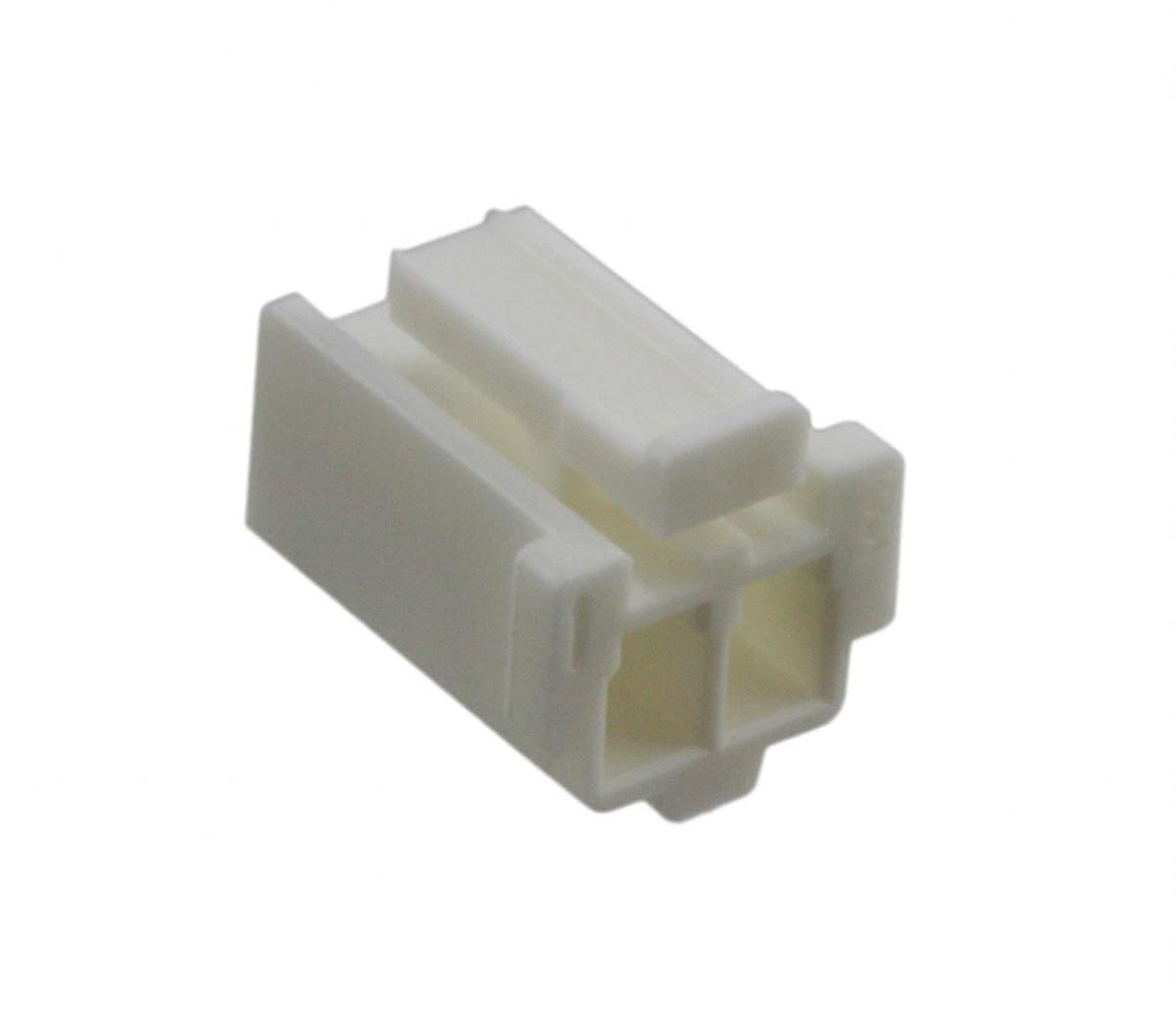

Square Connector Receptacle for Signal and Cable Connections
Square Connector Receptacle for Signal and Cable Connections
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Unit price
/
per
Shipping calculated at checkout.
50 in stock
Couldn't load pickup availability
Condition: New
Brand: MOLEX
MPN: 51103-0200
MPN Xref:51103-0200, 25H8708, MOLE-0103855, WM3335-ND, 2063765, 511030200, 05110-30200, 7976569P, 0511030200
This square connector shape is a signal, wire-to-board, and wire-to-wire cable connection. It is a receptacle type connector with a crimp termination style. The connector is made of polyester material and has a max temperature of 105°C. It has 2 contacts in one row and a hole center to center distance of 2.5 mm. The connector is a part of the Mini-Lock family and is not low-halogen. It is CSA certified and UL E29179 approved with a flammability rating of UL 94V-0. The package quantity is 1 and the alternate manufacturer part number is 51103-0200.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: MOLEX
MPN: 51103-0200
MPN Xref:51103-0200, 25H8708, MOLE-0103855, WM3335-ND, 2063765, 511030200, 05110-30200, 7976569P, 0511030200
This square connector shape is a signal, wire-to-board, and wire-to-wire cable connection. It is a receptacle type connector with a crimp termination style. The connector is made of polyester material and has a max temperature of 105°C. It has 2 contacts in one row and a hole center to center distance of 2.5 mm. The connector is a part of the Mini-Lock family and is not low-halogen. It is CSA certified and UL E29179 approved with a flammability rating of UL 94V-0. The package quantity is 1 and the alternate manufacturer part number is 51103-0200.
| Connector Shape | Square |
| Application | Signal, Wire-to-Board, Wire-to-Wire |
| Conforming terminal | 50351, 50752 |
| Alternate Mfr Part Number | 51103-0200 |
| Color | Natural |
| Family Name | Mini-Lock |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Pitch | 2.50 mm (0.098") |
| Primary Type | Cable Connector |
| Series | 51103 |
| Special Features | Not Low-Halogen |
| Termination | Crimp |
| Type | Receptacle Housing |
| Termination Style | Crimp |
| Contact Gender | Socket (Female) |
| Tradename | Mini-Lock |
| Product Category | Headers & Wire Housings |
| Mounting Style | Wire |
| Housing Material | Polyester |
| Number of Positions | 2 |
| Manufacturer Part No. | 51103-0200 |
| Alternate Part No. | 538-51103-0200 |
| Packaging | Bulk |
| Part # Aliases | 0511030200 |
| Product Type | Wire Housings |
| Standards | CSA Certified; UL E29179 |
| Material | Polyester |
| Connector Type | Receptacle |
| Max. Temp. | 105?C |
| Hole Center to Center | 2.5 mm |
| Sub-Category | Crimp Housings |
| Flammability Rating | UL 94V-0 |
| Package Quantity | 1 |
