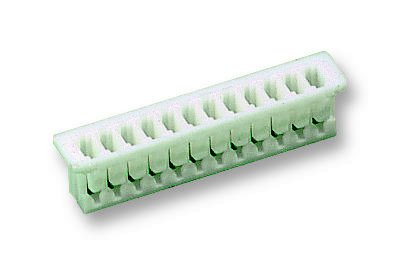

PicoBlade Cable Connector Square Socket Housing Natural Color

Condition: New
Brand: MOLEX
MPN: 51021-0700
MPN Xref:51021-0700, MOLE-0089699, 0510210700, 538-51021-0700, 3421696, MX-51021-0700, 510210700, MOL51021-0700, 57H2317

This cable connector is a natural color square-shaped socket housing that is UL / CSA representative standard approved. It has a straight right angle angle, a current rating of 0.8A, and a housing material of PBTP. The connector has 7 contacts in 1 row with a pin spacing of 0.049" and a pitch of 1.25mm (0.049"). It is suitable for cable connections and has a temperature range of -40 to +85 °C.

Color	Natural
Connector Shape	Square
Application	Cable connection
Representative Standard	UL / CSA
Mating partner	51047, 53047, 53048, 53261, 53398
Package Quantity	1
Agency Approvals	CSA ; UL
Alternate Mfr Part Number	51021-0700
Angle	Straight Right Angle
Current Rating	0.8 A
Family Name	PicoBlade
Gender	Receptacle
Housing Material	PBTP
Number of Contacts	7
Number of Rows	1
Operating Temperature	-40 to +85 °C
Overall Length	3.95 mm
Pin Spacing	0.049 "
Pitch	1.25 mm (0.049")
Primary Type	Cable Connector
Product Header	PicoBlade™ Wire-to-Wire & Wire-to-Board Socket Housing
Series	51021 Series
Special Features	Not Low-Halogen
Type	Socket
ASIN	B00MEL0JZY
Item model number	51021-0700
