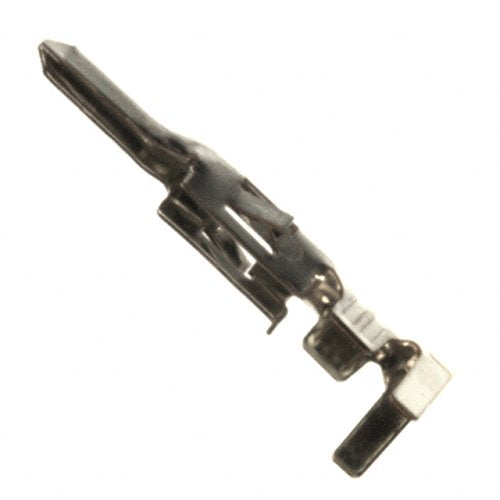

Male Pin Crimp Terminal Contact for Wire-Wire Connections - Mini-Fit Jr.
Male Pin Crimp Terminal Contact for Wire-Wire Connections - Mini-Fit Jr.
Regular price
$0.02 USD
Regular price
Sale price
$0.02 USD
Unit price
/
per
Shipping calculated at checkout.
103 in stock
Couldn't load pickup availability
Condition: New
Brand: Molex Incorporated
MPN: 39-00-0062
MPN Xref:39-00-0062, 56H7609, 70190715, 0039000062, WM1017-ND, 039000062, MOL39-00-0062, 6795745, MOLE-0049616
This male pin crimp terminal contact is made of phosphor bronze with tinned plating. It is designed for wire-wire connections and has a maximum current rating of 9A. The connector series is Mini-Fit Jr. and has a 4.2mm contact pitch. It is bulk packaged and crimped for cable installation. Suitable for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Molex Incorporated
MPN: 39-00-0062
MPN Xref:39-00-0062, 56H7609, 70190715, 0039000062, WM1017-ND, 039000062, MOL39-00-0062, 6795745, MOLE-0049616
This male pin crimp terminal contact is made of phosphor bronze with tinned plating. It is designed for wire-wire connections and has a maximum current rating of 9A. The connector series is Mini-Fit Jr. and has a 4.2mm contact pitch. It is bulk packaged and crimped for cable installation. Suitable for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Brand | Molex |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Termination Method | Crimp |
| Maximum Wire Size AWG | 18AWG |
| Maximum Wire Size mm² | 0.8mm² |
| Series | 5558 |
| Minimum Wire Size AWG | 24AWG |
| Minimum Wire Size mm² | 0.2mm² |
| Series Number | 5558 |
| Stock | |
| Manufacturer Part No. | 39-00-0062 |
| Part # Aliases | 0039000062 5558PBTL |
| Contact Gender | Pin (Male) |
| Tradename | Mini-Fit Jr. |
| Voltage Rating | 600 V |
| Termination Style | Crimp |
| Alternate Part No. | 538-39-00-0062 |
| Product Type | Contact, Mini-Fit, Jr. |
| Product Category | Headers & Wire Housings |
| Current Rating | 9 A |
| Wire Gauge | 24-18 |
| Packaging | Bulk |
| Manufacturer | MOLEX |
| Type of connector | wire-wire |
| Connector | contact |
| Kind of connector | male |
| Contact material | phosphor bronze |
| Contact plating | tinned |
| Wire size | 24AWG...18AWG |
| Connector series | Mini-Fit Jr. |
| Kind of package | bulk |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| Maximum current | 9A |
| Contacts pitch | 4.2mm |
| Engineering PN | 5558PBTL |
| Connector Type | Contact |
| Alternate Mfr Part Number | 5558PBTL |
| Contact Type | Pin |
| Family Name | Mini-Fit |
| Plating Material | Tin |
| Special Features | Low-Halogen |
| Wire Size | 24-18 |
