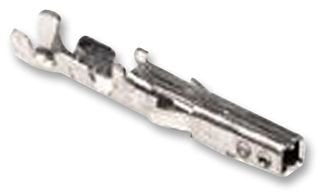

Contact Socket Crimp Terminal for 28-22 AWG Wire

Condition: New
Brand: MOLEX
MPN: 39-00-0047
MPN Xref:39-00-0047, COREC12865, 78068798310, 304872, 538-39-00-0047, 23M1568, 39000047, 56H7603, 6795735P

This contact socket crimp terminal is a female connector with a wire range of 28 to 22 AWG. It is made of brass and has a max voltage of 600V. It has a insulation diameter of 0.90-1.80mm and a current rating of 9A. The contact plating is tin over brass and it is part of the Mini-Fit series. This contact socket crimp terminal is low-halogen and is suitable for power, wire-to-board, and wire-to-wire applications. It comes in a package quantity of 1.

Connector Type	Socket Crimp Terminal
Wire Range	28 to 22 AWG
Connection Material	Brass
Connection Type	Female, Crimp or Compression
Max. Voltage	600V
Insulation Dia	0.90-1.80mm
Package Quantity	1
Alternate Mfr Part Number	5556T2L
Application	Power ; Wire-to-Board ; Wire-to-Wire
Contact Plating	Tin Over Brass
Contact Type	Socket
Current Rating	9 A
Family Name	Mini-Fit
Gender	Female
Plating Material	Tin
Primary Type	Crimp Terminal
Product Type	Contact, Mini-Fit, Jr.
Series	5556 Series
Special Features	Low-Halogen
UPC Code	800753727212
Wire Size	28-22 AWG
