Closed-End Twist Lock Splice Connector

Closed-End Twist Lock Splice Connector

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

586 in stock

Condition: New
Brand: MOLEX
MPN: 19160-0040
MPN Xref:19160-0040, 191600040, 0191600040, E2829546, WM23949-ND, 32H4722, MOL19160-0040, 538-19160-0040

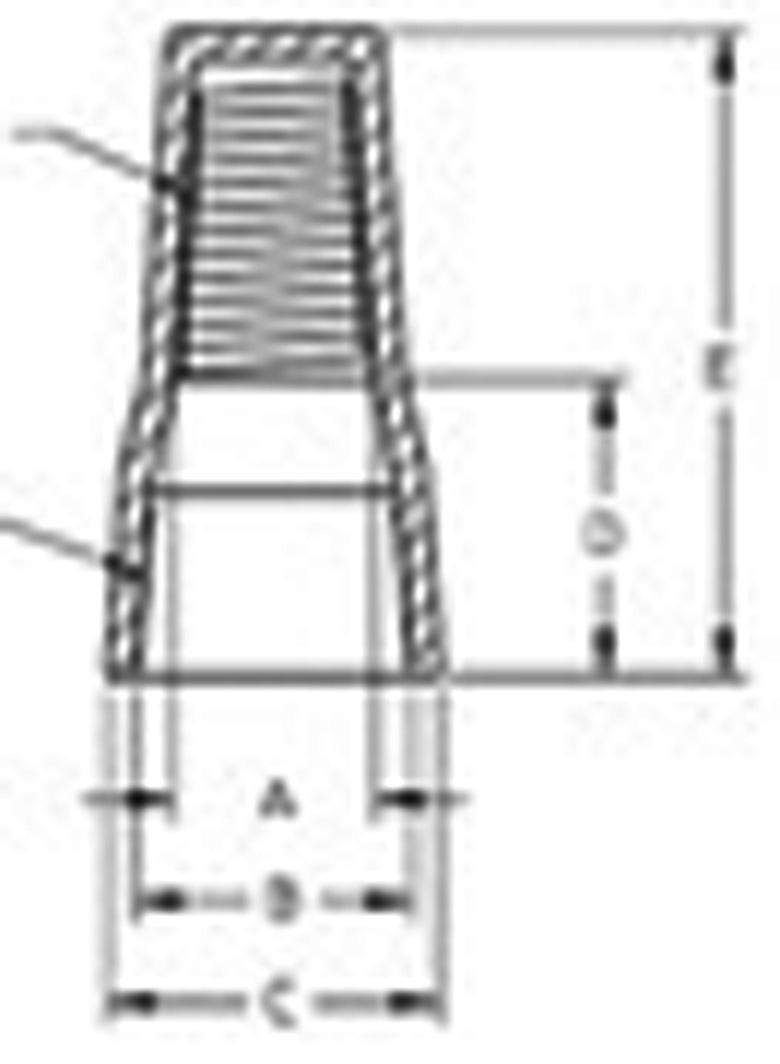

This closed-end twist lock splice connector features a tin-plated finish and is CSA certified. It is suitable for wire sizes 14-22 AWG with a maximum insulation diameter of 7.11mm. The connector has a maximum voltage of 300V and a maximum temperature of 105°C. It is made of copper with nylon insulation material.
Barrel Type Closed
Min. Single Wire Size 22 AWG
Max. Single Wire Size 14 AWG
Max. Insulation Dia. 7.11 mm
Color Blue
Max. Voltage 300V
Material Copper
Standards CSA Certified; UL E32244
Max. Temp. 105?C
Insulation Material Nylon
Terminal Finish Tin Plated
Flammability Rating UL 94V-2
Contact Finish Tin Plated
Package Quantity 1
Alternate Mfr Part Number TL-B
Family Name Closed-End Twist Lock
Plating Material Tin
Primary Type Splice
Series 19160 Series
Type Splicer
UPC Code 800753110441
Wire Size 14-22 AWG
Category Connectors, Interconnects
Package Box
Product Status Active
