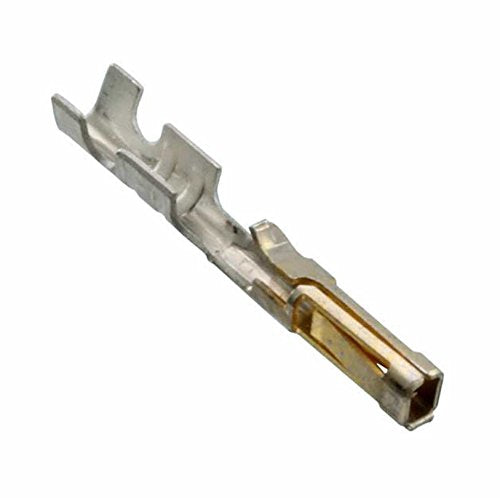

Rectangular Female Contact for 70066 and 70450 Housings

Condition: New
Brand: Molex
MPN: 16-02-0103
MPN Xref:16-02-0103, WM2512-ND, 741685, 55H2483, 021481, MOL16-02-0103, MOLE-0086377, 16020103, 0016020103

This contact is compatible with female (socket) connectors and is designed for use with housing models 70066 and 70450. The contact is part of the CyClone family and features gold plating. It is a rectangular contact with a wire size range of 24-22 AWG. The contact is made of phosphor bronze and has a low-halogen design.

Compatible Pin/Contact	Female (socket)
Applicable housing	70066, 70450
Alternate Mfr Part Number	70058-0224
Contact Type	Socket
Family Name	CyClone
Gender	Female
Plating Material	Gold
Primary Type	Rectangular
Series	70058 Series
Special Features	Low-Halogen
Type	Contact
Wire Size	24-22
Wire Range	24 to 22 AWG
Connection Material	Phosphor Bronze
Connection Type	Female, Crimp or Compression
Insulation Dia	1.63mm max.
Package Quantity	1
