Standard .093 in Nylon Wire Housing Plug

Standard .093 in Nylon Wire Housing Plug

Regular price $0.04 USD
Regular price Sale price $0.04 USD
Sale Sold out
Shipping calculated at checkout.

30 in stock

Condition: New
Brand: Molex
MPN: 03-09-2022
MPN Xref:03-09-2022, 97B2624, 03092022, 000114, MOLE-0006902, MOL03-09-2022, 9620, WM1324-ND, MOLE-0103827

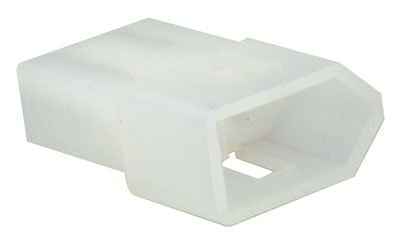

This is a standard .093 inch nylon wire housing plug with a pitch of 6.3mm or 5.03mm. It is a pin and socket connector with a current rating of 14A and 2 positions. The housing gender is male and it is suitable for use with pin and socket connectors. It has a flammability rating of UL 94 V-2 and is available in natural color. The overall length is 0.64 inches and the operating temperature range is -40 to +105 degrees Celsius.
Housing Material Nylon
Packaging Bulk
Tradename Standard .093 in
Pitch 5.03mm
Product Type Wire Housings
Alternate Part No. 538-03-09-2022
Contact Type Pin, Socket
Current Rating 14 A
Number of Positions 2
Housing Gender Plug
Product Category Pin & Socket Connectors
Part # Aliases 0003092022 1545-P1 3092022
Flammability Rating UL 94 V-2
Number of Rows 1
Series 1545
Manufacturer Part No. 03-09-2022
Country of Origin (subject to change) Unknown
Agency Approvals CSA ; UL
Alternate Mfr Part Number 3092022
Angle Straight
Color Natural
Number of Circuits 1 to 15
Number of Contacts 2
Operating Temperature -40 to +105 °C
Overall Length 0.64 "
Pin Spacing 0.198 in
Primary Type Soft Shell
Product Header 1545 Series Plug Type Housing
Special Features Low-Halogen
Type Plug
