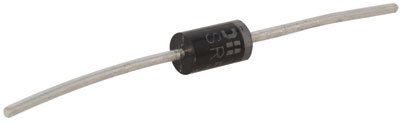

Obsolete Schottky Diode - 60V, 5A

Obsolete Schottky Diode - 60V, 5A

Regular price $0.17 USD
Regular price Sale price $0.17 USD
Sale Sold out
Shipping calculated at checkout.

804 in stock

Condition: New
MPN: SR506-T
MPN Xref:SR506-T, SR506DICT-ND, B00B886RT6, SR506DITR-ND, 2126011

This Schottky diode is obsolete and has a maximum reverse voltage of 60V and an average rectified current of 5A. It has a forward voltage of 670mV at 5A and a fast recovery speed. It is mounted through hole and has a DO-201AD package.
Category Discrete Semiconductor Products
Mfr Diodes Incorporated
Series -
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 670 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 60 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -65?C ~ 150?C
Base Product Number SR506
