N-MOSFET Transistor - 60V, 0.14A

Condition: New
Brand: DIODES INC.
MPN: 2N7002DW-7-F
MPN Xref:2N7002DW-7-F, 2N7002DW7F, 66W0959, 25R5680, 2N7002DW-7-F**MULT1, TMOSS5921, 66W0958, 2306462, 1713824

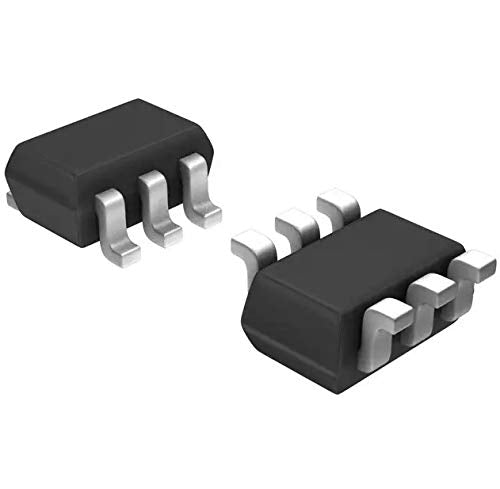

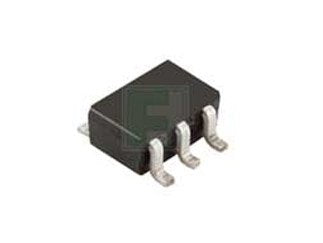

This N-MOSFET transistor has a drain-source voltage of 60V and a drain current of 0.14A. It is a surface mount device with a package of SOT363.

Category	Discrete Semiconductor Products
Mfr	Diodes Incorporated
Series	-
Package	Tape & Reel (TR)
Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25?C	230mA
Rds On (Max) @ Id, Vgs	7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id	2V @ 250?A
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
Power - Max	310mW
Operating Temperature	-55?C ~ 150?C (TJ)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
Base Product Number	2N7002
Part Status	Active
Package/Case	SOT-363
Product Categories	MOSFET
RoHs Status	Rohs
In-stock	1461253
Resistance Drain Source RDS (on)	4.4 Ohms
Configuration	Dual
Maximum Operating Temperature	+ 150 C
Mounting Style	SMD/SMT
Packaging	Reel
Forward Transconductance gFS (Max / Min)	0.08 S
Minimum Operating Temperature	- 55 C
Power Dissipation	0.2 W
Factory Pack Quantity	3000
Typical Turn Off Delay Time	11 ns
Manufacturer	DIODES INCORPORATED
Type of transistor	N-MOSFET x2
Polarisation	unipolar
Drain-source voltage	60V
Drain current	0.14A
Power dissipation	0.12W
Case	SOT363
Gate-source voltage	?20V
On-state resistance	13.5?
Mounting	SMD
Kind of package	reel,
Kind of channel	enhanced
