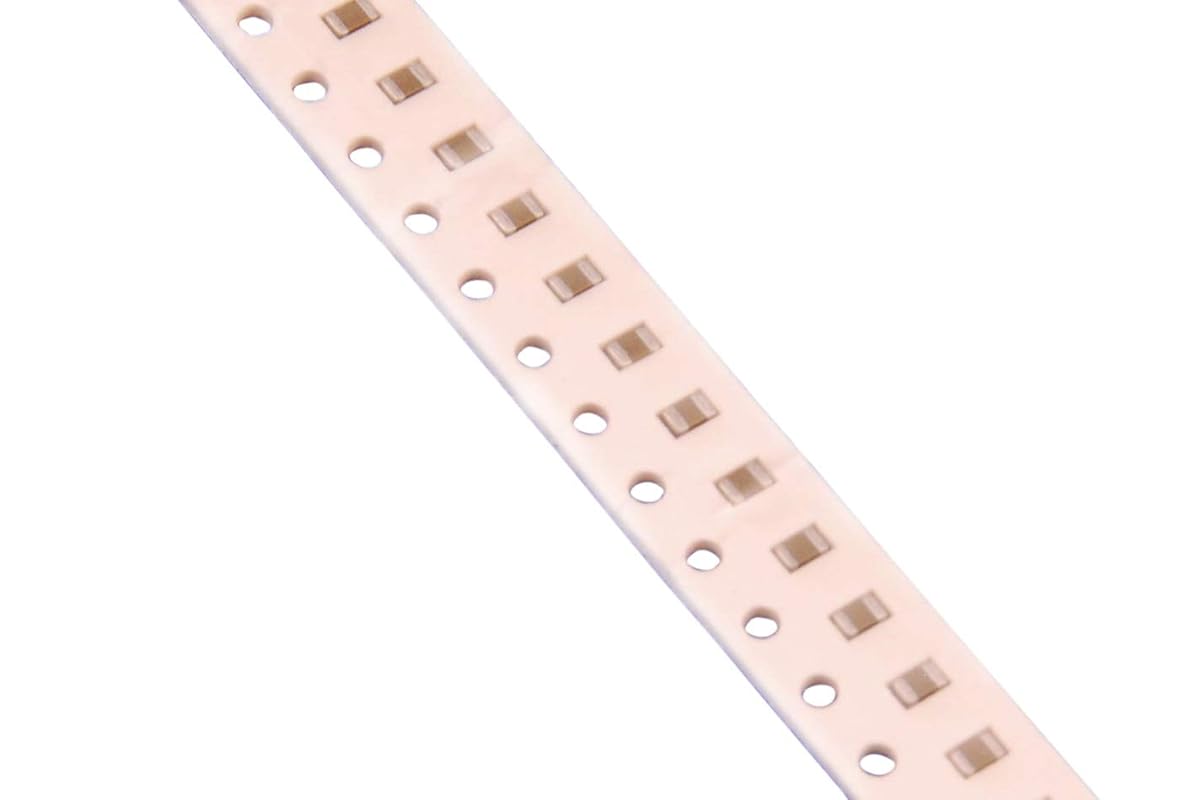

0603ZD105KAT2A Ceramic MLCC Capacitor 1uF 10V

0603ZD105KAT2A Ceramic MLCC Capacitor 1uF 10V

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

244 in stock

Condition: New
Brand: AVX
MPN: 0603ZD105KAT2A
MPN Xref:0603ZD105KAT2A, 2280916, 70001029, KKK15998, 478-1251-1-ND, 84K8388, 1327684, 0603ZD105KAT2A., 391040

This ceramic MLCC capacitor has a capacitance of 1uF, a voltage rating of 10V, and is part of the 0603 Series. It is surface mountable and has a tolerance of 10%. Ideal for general purpose applications.
Type of capacitor ceramic
Kind of capacitor MLCC
Capacitance 1 ?F
Operating voltage 10V
Dielectric X5R
Tolerance 10% %
Mounting SMD
Case - inch 0603
Case - mm 1608
Operating temperature -55...85?C
Case Size 0603 ; 1608
Dimensions 0.063 L x 0.031 W ; 1.6 L x 0.8 W in ; mm
Element Material Ceramic
Packaging Cut Tape
Series -
Termination SMD
Capacitance Range 1 to 99 uF
Dissipation Factor 5 %
Insulation Resistance 100000 MegaOhms
Length 0.063 in
Maximum Operating Temperature 85 C
Minimum Operating Temperature -55 C
Mounting Type Surface Mount, MLCC
Package Type 7" Reel (Paper)
Temperature Coefficient 0 +/-30 ppm/°C
Test Condition Dissipation Factor (Max.)
Thickness 0.034 in.
Voltage Rating 10 VDC
Width 0.032 in
Type SemiConductor
Category Capacitors
Package Tape & Reel (TR)
Part Status Active
Voltage - Rated 10V
Operating Temperature -55?C ~ 85?C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Package / Case 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.81mm)
Height - Seated (Max) -
Thickness (Max) 0.035" (0.90mm)
Lead Spacing -
Lead Style -
Item model number 0603ZD105KAT2A
National Stock Number 5910-01-534-0472
ASIN B00OVEB0XW
