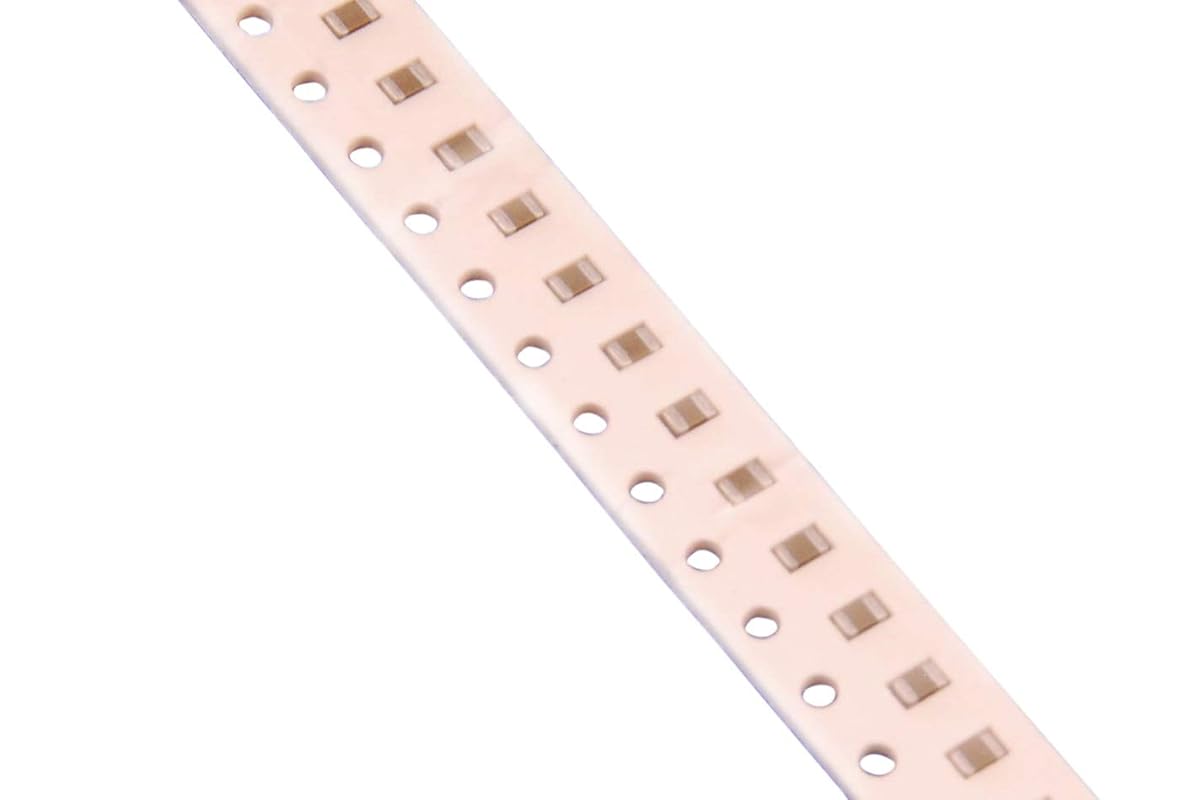

0603 Series Ceramic Capacitor 150pF 50V

Condition: New
Brand: AVX
MPN: 06035A151JAT2A
MPN Xref:06035A151JAT2A, 06035A151JAT2A/BKN, 478-1177-6-ND, KKK2951, 2280858, 478-1177-1-ND, 70002203, 1612181RL, 70002465

This ceramic capacitor is part of the 0603 Series and has a capacitance of 150pF and a voltage rating of 50V. It is surface mountable and has a package size of 0.063" L x 0.032" W (1.60mm x 0.81mm). It is suitable for general purpose applications and has an operating temperature range of -55°C to 125°C.

capacitance	150 pf
voltage	50 v
tolerance	j
temperature	npo
lead type	-
lead style	-
package	bulk
item per pack	4000
Type of capacitor	ceramic
Kind of capacitor	MLCC
Capacitance	150 pF
Operating voltage	50V
Dielectric	C0G (NP0)
Tolerance	5% %
Mounting	SMD
Case - inch	0603
Case - mm	1608
Operating temperature	-55...125?C
Case Size	0603 ; 1608
Dimensions	0.063 L x 0.031 W ; 1.6 L x 0.8 W in ; mm
Element Material	Ceramic
Series	-
Termination	SMD
Capacitance Range	100 to 999 pF
Insulation Resistance	100000 MegaOhms
Length	0.063 in
Maximum Operating Temperature	125 C
Minimum Operating Temperature	-55 C
Mounting Type	Surface Mount, MLCC
Package Type	7" Reel (Paper)
Temperature Coefficient	0 +/-30 ppm/°C
Thickness	0.034 in.
Voltage Rating	50 VDC
Width	0.032 in
Category	Capacitors
Package	Tape & Reel (TR)
Part Status	Active
Voltage - Rated	50V
Operating Temperature	-55?C ~ 125?C
Features	-
Ratings	-
Applications	General Purpose
Failure Rate	-
Package / Case	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.032" W (1.60mm x 0.81mm)
Height - Seated (Max)	-
Thickness (Max)	0.035" (0.90mm)
Lead Spacing	-
Lead Style	-
