AVX Corporation Capacitor 0402 Series - 1000 pF, 50V

AVX Corporation Capacitor 0402 Series - 1000 pF, 50V

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

400 in stock

Condition: New
Brand: KYOCERA AVX
MPN: 04025C102KAT2A
MPN Xref:04025C102KAT2A, KKK13491, AVX1-0583593, 478-1101-1-ND, 581-04025C102K, 478-1101-2-ND, 04025C102KAT2A/BKN, 1327646RL, 04025C102KAT2A**MULT1

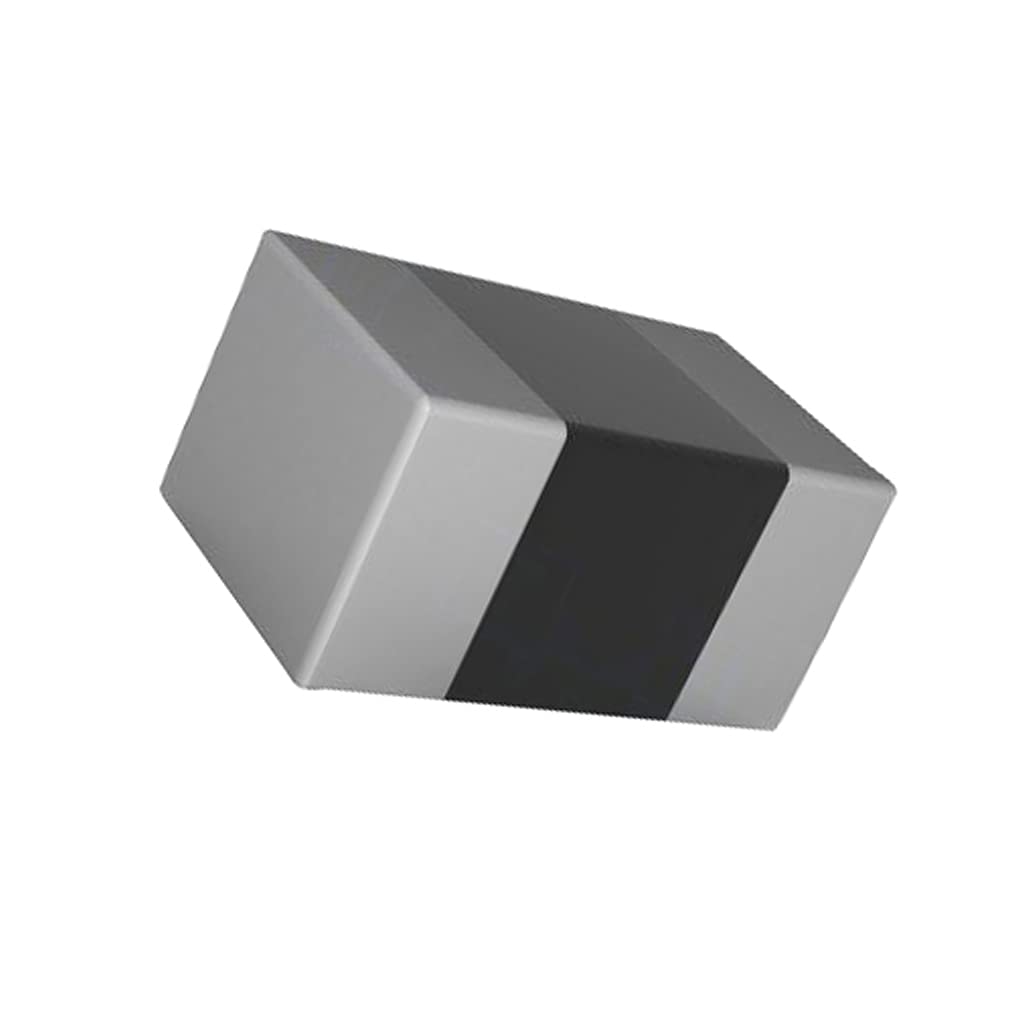

This commercial surface mount chip capacitor is part of the AVX Corporation's 0402 series. It has a capacitance of 1000 pF and a voltage rating of 50V, making it ideal for general purpose applications. The capacitor is surface mountable and operates within a temperature range of -55°C to 125°C. It features a X7R temperature coefficient and comes in a 0402 (1005 metric) package.
Category Capacitors
Mfr AVX Corporation
Series -

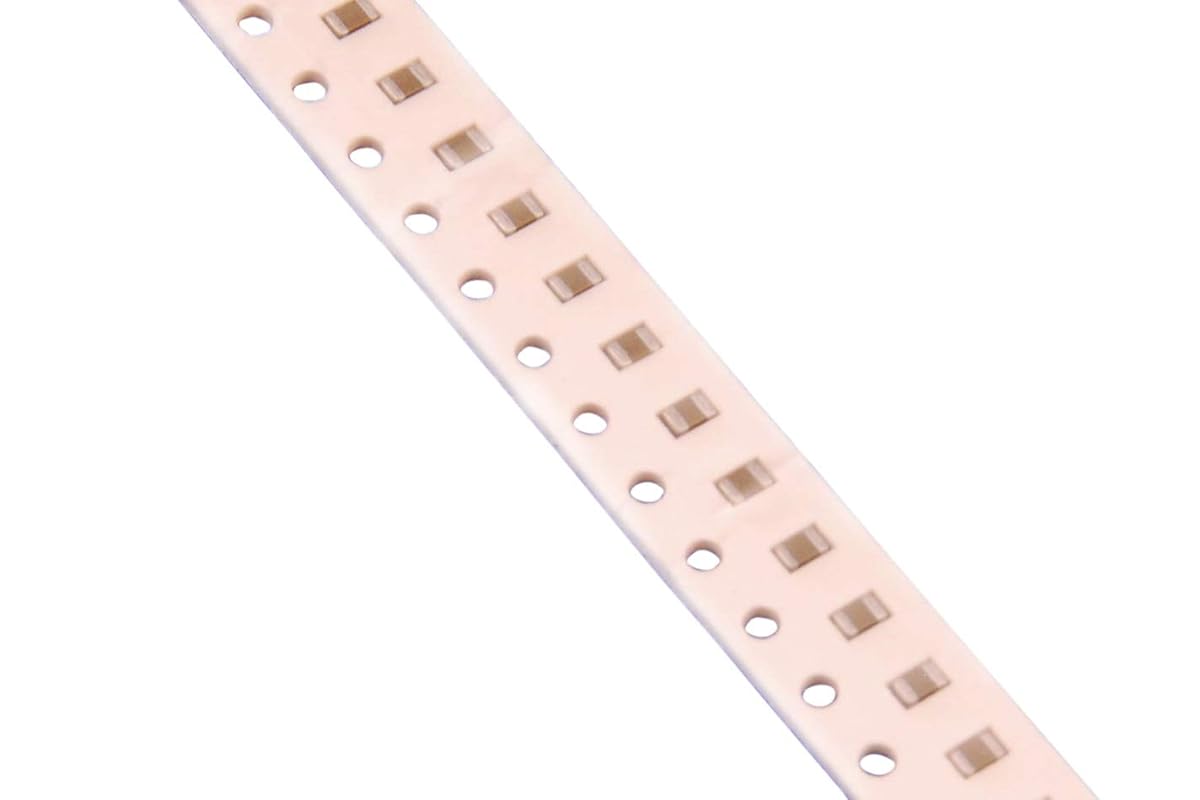

Package Tape & Reel (TR)
Part Status Active
Tolerance 10% %
Voltage - Rated 50V
Temperature Coefficient X7R
Operating Temperature -55?C ~ 125?C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) -
Thickness (Max) 0.022" (0.56mm)
Lead Spacing -
Lead Style -
Capacitance 1000 pF
Termination Style SMD/SMT
Packaging Reel
Type Commercial Surface Mount Chip
Minimum Operating Temperature -55 C
Product Category Multilayer Ceramic Capacitors MLCC - SMD/SMT
Temperature Coefficient/Code +/- 15 %
Case Code - mm 1005
Alternate Part No. 581-04025C102K
Manufacturer AVX
Manufacturer Part No. 04025C102KAT2A
Package/Case 0402 (1005 metric)
Brand AVX
Case Code - in 0402
Case Height 0.5 mm
Voltage Rating DC 50 V
Maximum Operating Temperature + 125 C
Operating Temperature Range - 55 C to + 125 C
Dielectric X7R
Product General Type MLCCs
Case Width 0.5 mm
Case Length 1 mm
Type of capacitor ceramic
Kind of capacitor MLCC
Operating voltage 50V
Mounting SMD
Case - inch 0402
Case - mm 1005
Operating temperature -55...125?C
Capacitance Range 1000 to 9999 pF
Case Size 0402 ; 1005
Dielectric Strength No breakdown or visual defects
Dimensions 0.039 L x 0.02 W ; 1 L x 0.5 W in ; mm
Dissipation Factor 2.5 %
Element Material Ceramic
Insulation Resistance 100000 MegaOhms
Length 0.04 in
Termination SMD
Test Condition Dissipation Factor (Max.)
Thickness 0.022 in.
Voltage Rating 50 VDC
Width 0.02 in
