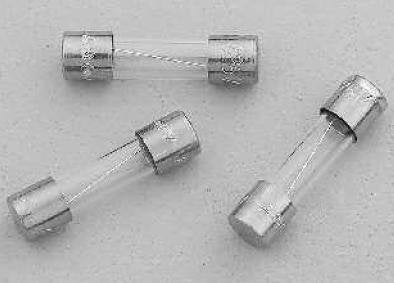

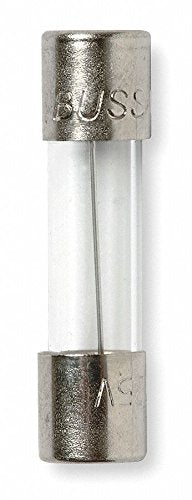

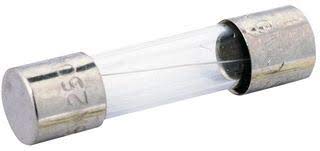

Glass Body Fuse - 1.25 Amps, 250VAC
Glass Body Fuse - 1.25 Amps, 250VAC
Regular price
$0.26 USD
Regular price
Sale price
$0.26 USD
Unit price
/
per
Shipping calculated at checkout.
18 in stock
Couldn't load pickup availability
Condition: New
Brand: EATON BUSSMANN
MPN: GMC-1.25-R
MPN Xref:GMC-1.25-R, 1501624, 2ABN8, GMC-1.25-R-ND, 504-BK/GMC-1.25-R, 48K9575, BKGMC125R, 1375502, 283-2895-ND
This fuse is a medium blow, time delay fuse with a current rating of 1.25 Amps and a voltage rating of 250 VAC. It is a glass cartridge fuse with a size of 5mm x 20mm, and it has a breaking capacity of 100A. The fuse is approved by CSA, UL, KC-MARK, and MITI.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: EATON BUSSMANN
MPN: GMC-1.25-R
MPN Xref:GMC-1.25-R, 1501624, 2ABN8, GMC-1.25-R-ND, 504-BK/GMC-1.25-R, 48K9575, BKGMC125R, 1375502, 283-2895-ND
This fuse is a medium blow, time delay fuse with a current rating of 1.25 Amps and a voltage rating of 250 VAC. It is a glass cartridge fuse with a size of 5mm x 20mm, and it has a breaking capacity of 100A. The fuse is approved by CSA, UL, KC-MARK, and MITI.
| Fuse Size | 20mm L x 5mm dia |
| Length | 20 mm |
| Diameter | 5 mm |
| Length (Straight Wireway) | 20 mm |
| Item | Fuse |
| Amps | 1-1/4A |
| Speed | Time Delay |
| Series | GMC |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 100A at 250V AC, 10kA at 125V AC |
| Visual Indication | Glass Fuse |
| Body Style | Cylindrical |
| Fits Fuse Block Style | Nonrejection |
| Body Material | Glass |
| Element | Single |
| Standards | CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX |
| Equivalent Brand and Series | Bussmann GMC, Littelfuse 239, Mersen GSC |
| Equivalent Series | 239, GMC, GSC |
| Compatible Fuse Block Series | HTB |
| Functionally Equal To | Littelfuse 239, Mersen/Ferraz Shawmut GSC |
| Indicating / Nonindicating | Indicating |
| Rejection / Nonrejection | Nonrejection |
| Fuse Voltage Rating | 250VAC |
| Type | Fuse, Electronic, Time Delay |
| SKU | ZO-G3294742 |
| Current Stock | 18 |
| Mpn | GMC-1.25-R |
| UPC | 051712642781 |
| SubCategory | Electrical |
| International Shipping | No |
| Material | Glass |
| Catalog Number | GMC-1.25-R |
| Country of Origin | CN |
| Made in USA | No |
| Alternate Mfr Part Number | GMC-1-25-R |
| Manufacturer | Cooper Bussmann |
| Category | Glass Body Fuses |
| UNSPSC | 39121607 |
| Mfr | Eaton - Electronics Division |
| Part Status | Active |
| Mounting Type | Holder |
| Fuse Type | Cartridge, Glass |
| Response Time | Medium Blow |
| Package / Case | 5mm x 20mm |
| Breaking Capacity @ Rated Voltage | 100A |
| Approval Agency | CSA, KC-MARK, MITI, UL |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Melting I?t | 3.4 |
| Current Rating (Amps) | 1.25 A |
| Voltage Rating - AC | 250 V |
| DC Cold Resistance | 0.098 Ohms |
