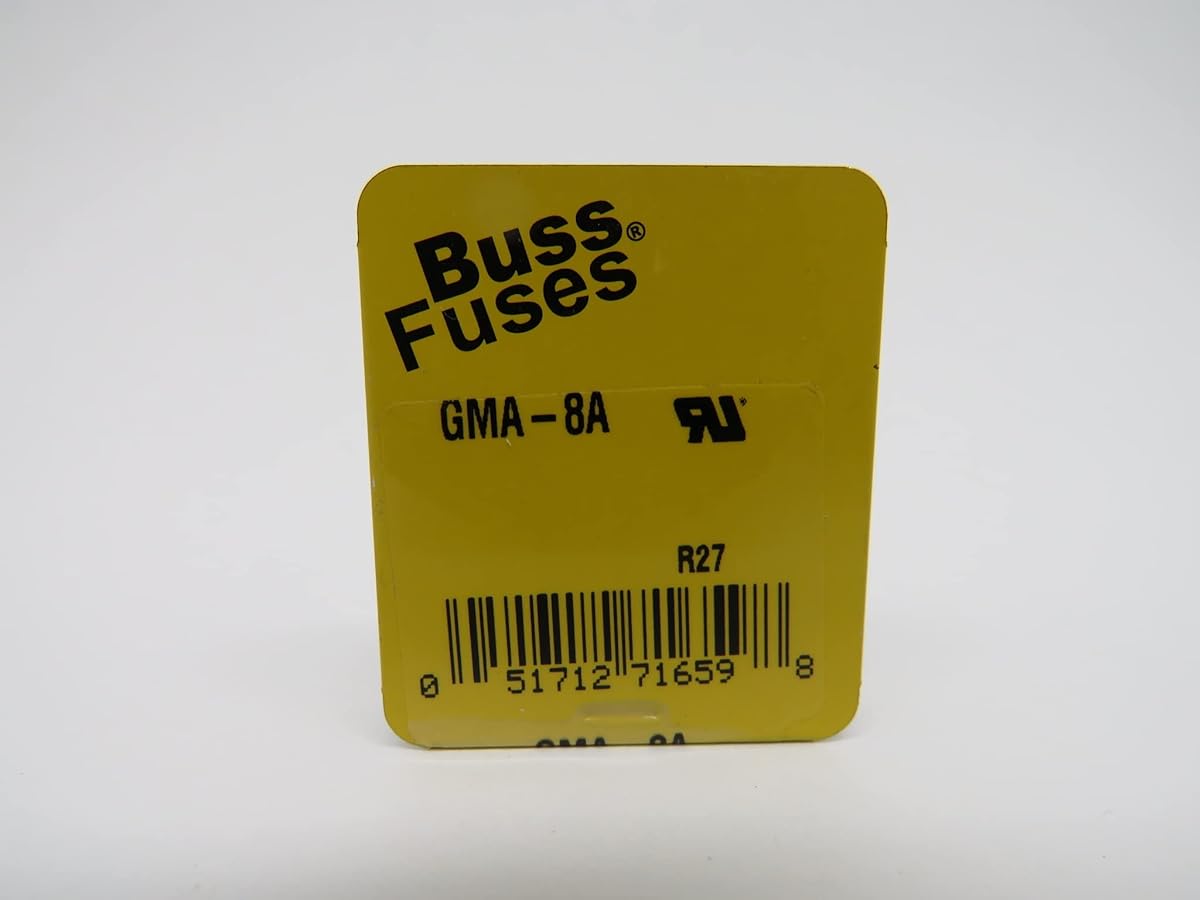

GMA-8A Electronic Circuit Fuse - 125V AC, 8A, Glass Cartridge

GMA-8A Electronic Circuit Fuse - 125V AC, 8A, Glass Cartridge

Regular price $0.13 USD
Regular price Sale price $0.13 USD
Sale Sold out
Shipping calculated at checkout.

194 in stock

Condition: New
Brand: Bussmann
MPN Xref:GMA-8A, BK/GMA-8-R, 05171264741, GMA-8ABC-R, BK1/GMA-8-R, 284074, BK/GMA-8BC-R, 48K9545, BKGMA8R

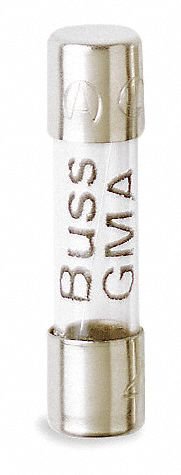

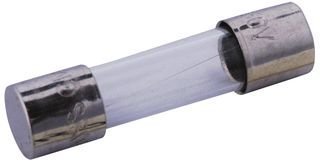

This electronic circuit fuse is a GMA fast acting fuse with a voltage rating of 125V AC and a current rating of 8A. It is a glass cartridge fuse with a size of 5mm diameter x 20mm length. It has a low breaking capacity and an interrupt rating of 200A at 125V AC. The fuse has a response time of 60 minutes maximum at 135% and 2 minutes maximum at 200%. It is UL 248-14, CSA, and CE approved.
Weight (lbs) (0.0025)
Case Style Glass Cartridge
Voltage (V) 125
Type Louvre
Current 8
Category Circuit Protection
UPC 051712716598
UNSPSC 39121607
Country of Origin CN
Catalog Number GMA-8A
Made in USA No
Amperage Rating 8
Application Electronic Circuits
Connection Ferrule End X Ferrule End
Response Time Fast Blow
Special Features Low Breaking Capacity, Interrupt Rating 200 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap
Standard UL 248-14, CSA, CE
Item Type Electronic, Fast Acting
Size 5 mm Diameter X 20 mm Length
Voltage Rating 125 Vac
Height 4 3/4 in
Color -
Width 4 1/2 in
Material Steel
Country of Origin (subject to change) China
Manufacturer Part Number GMA-8A
Item Number GMA-8A
Product Series GMA
Current Rating 8
Voltage (AC) 125
Characteristic Fast Acting
Package Type Cartridge
Interrupt Rating 200A @ 125V
Trip Indicator No
Alarm Contact No
Length (mm) 20.32 MilliMeters
Diameter (mm) 5 MilliMeters
Diameter (in) 0.2 Inches
Length (In) 0.8 Inches
Net Weight 0.005 lbs
Gross Weight 0.002 lbs
Mfr Eaton - Electronics Division
Series GMA
Package -
Product Status Obsolete
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 8 A
Voltage Rating - AC 125 V
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 200A
Melting I?t 280
Approval Agency PSE, UR
Operating Temperature -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.009 Ohms
Item Number: GMA-8A
UPC: 051712716598
Item Category: Fuses
Subcategory: Miniature
Series: GMA
Amps: 8
Volts AC: 125
Characteristic: Fast Acting
Package Type: Cartridge
Material: Glass
Length (mm): 20.32 MilliMeters
Length (in): 0.8 Inches
Interrupt Rating: 200A @ 125V
Trip Indicator: No
Alarm Contact: No
RoHS: No
Diameter (mm): 5 MilliMeters
Diameter (in): 0.2 Inches
Part Number GMA-8A
Item Package Quantity 1
Batteries Required? No
