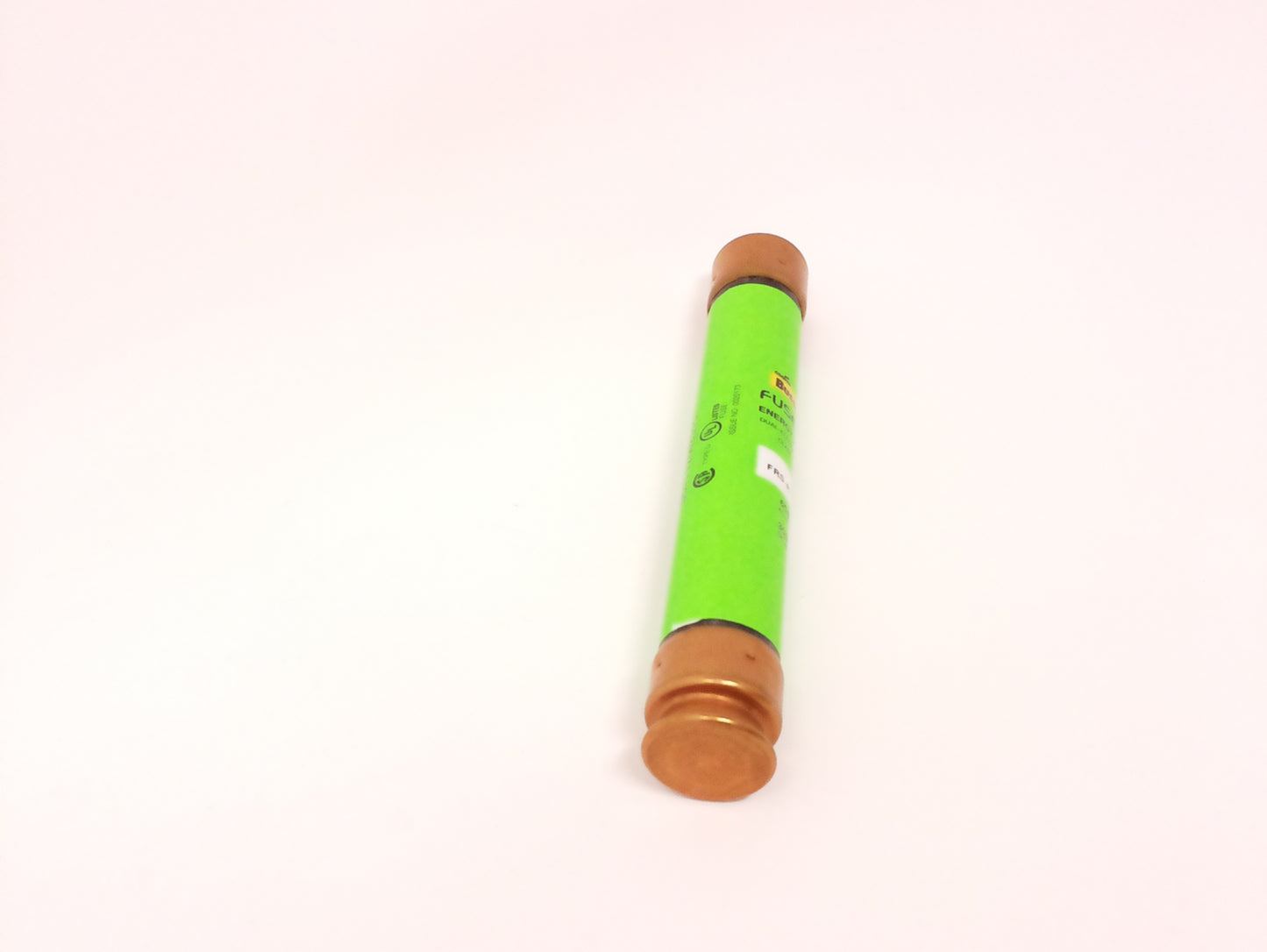

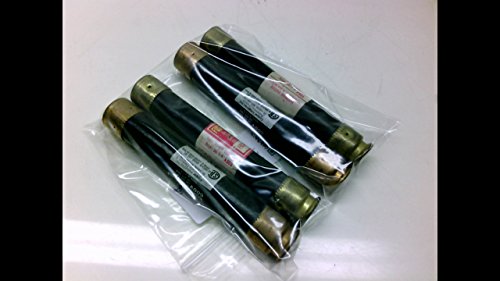

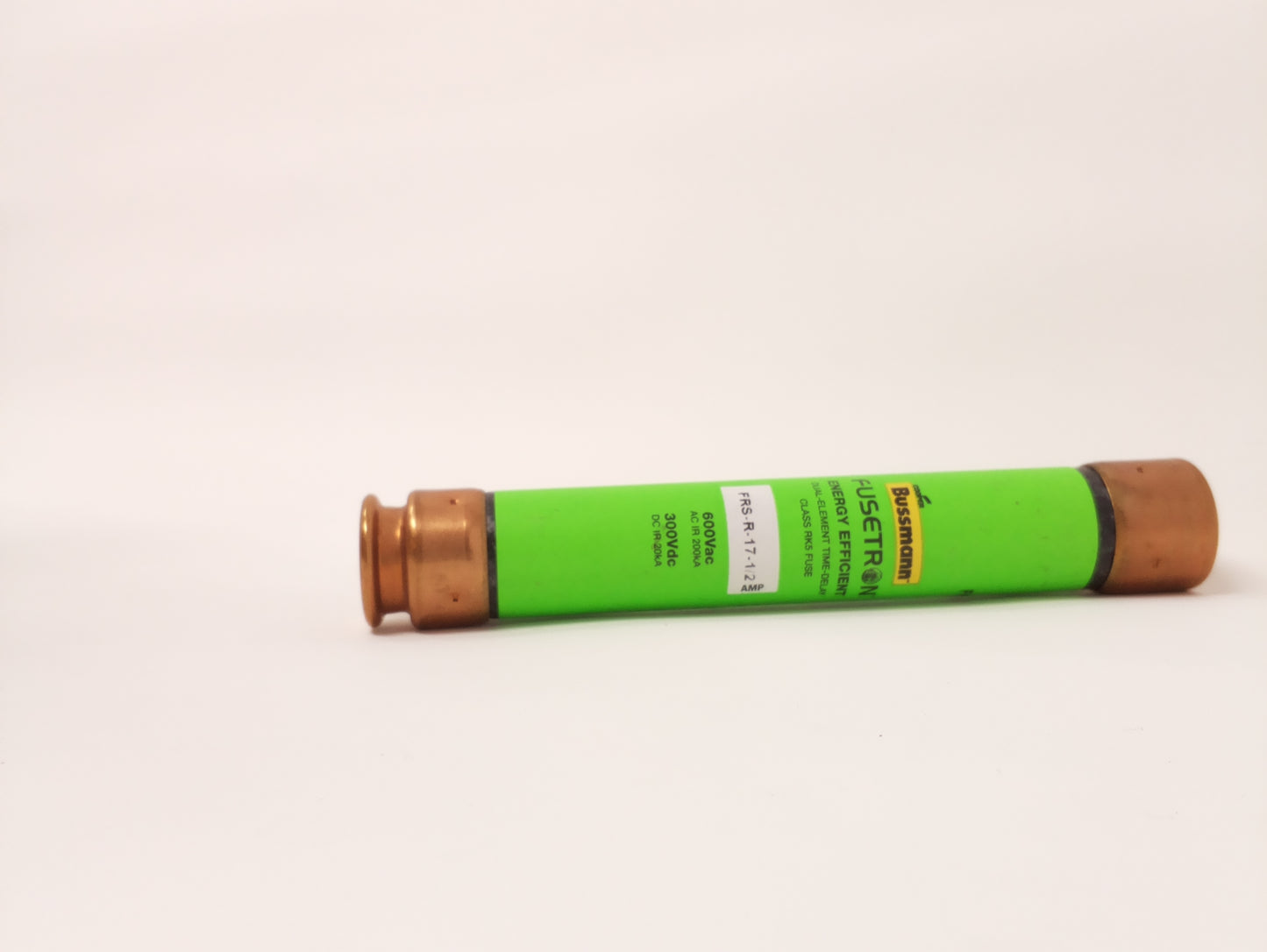

17-1/2A 600V TD Class RK5 Dual Element Fuse-Fusetron

Condition: New
Brand: Cooper Bussmann
MPN: FRS-R-17-1/2
MPN Xref:FRS-R-17-1/2

17-1/2A 600V TD CLASS RK5 DUAL ELEM FUSE-FUSETRON

ECCN	EAR99
Country of Origin	MX - Mexico
UNSPSC	39121606
Application	Ind Facilities & Factories - Facility: Safety and Security Systems
Class	RK5
Fuse Interrupt Rating	200 kAIC at 600 Vac|20 kAIC at 300 Vdc
Rated Voltage	600V ac/300V dc
Response Time	10 sec at 500%
Shape	Rectangular
Fuse Amps	17-1/2A
Length	5"
Height	0.81 in.
Width	0.81 in.
Description	17-1/2A 600V TD CLASS RK5 DUAL ELEM FUSE-FUSETRON
Classification	Fuses & Fuse Accessories
amperage rating	17.5
interrupt rating	200 kAIC at 600 Vac20 kAIC at 300 Vdc
Voltage Rating	600//300
connection	Ferrule End X Ferrule End
Size	0.81 In Diameter X 5.00 In Length
Product Type	Fusetron Dual Element Fuse Class RK5
Features	Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).
extra long description	BUSS FRS-R-17-1/2 FUSETRON DUAL ELE
Long Description	Eaton Bussmann series FRS-R fuse, 17.5 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc
Special Features	Renewable
media	Yes
dimensions	5.0000 IN X 0.8100 IN X 0.8100 IN
element	Dual
class	RK-5
Brand	Eaton
Manufacturers Part Number	FRS-R-17-1/2
sub brand	Bussmann series
GTIN	00051712508315
UPC	051712508315
Category Description	Fuses & Fuse Accessories
Type	FUSE
Weight per each	0.16
Carton	10
standard	CE Marked
Fuse Size	5" L x 13/16" dia
Diameter	13/16"
Length (Straight Wireway)	5 in
Item	Fuse
Amps	17-1/2A
Speed	Time Delay
Series	FRS-R
AC Voltage Rating	600V AC
DC Voltage Rating	300V DC
Interrupt Rating	200 kA
Visual Indication	Nonindicating
Body Style	Cylindrical
Fits Fuse Block Style	Rejection
Body Material	Fiberglass
Element	Dual
Standards	CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
Equivalent Brand and Series	Bussmann FRS-R, Edison ECSR, Littelfuse FLSR, Mersen TRS-R
Equivalent Series	ECSR, FLSR, FRS-R, TRS-R
Compatible Fuse Block Series	1BR, R600
Functionally Equal To	Littelfuse FLSR, Mersen/Ferraz Shawmut TRS-R
Fuse Holder Code	P
Indicating / Nonindicating	Nonindicating
SKU	ZO-G2675477
Current Stock	42
Mpn	FRS-R-17-1/2
SubCategory	Electrical
International Shipping	No
Opening	Time-Delay, Slow-Blow
Volts AC	600
Volts DC	300
Mounting	Cartridge
Family / Style	FRS
Interrupt Rating DC	20 kA
Interrupt Rating AC	200 kA
Product Categories	Fuse
RoHs Status	Lead free/RoHS Compliant
In-stock	8523
Voltage Rating AC	600 V
Mounting Style	Holder
Termination Style	Clip
Fuse Type	Time Delay / Slow Blow
Fuse Size / Group	Class RK5
Indicator Style	Without Indicator
Dimensions	5 in L x 0.81 in D
Case Diameter	0.81 in
Case Length	5 in
Packaging	Bulk
Product	Industrial Power Fuses
Part # Aliases	FRS-R-17-1-2
Current Rating	17.5 A
UPC Code	051712508315
