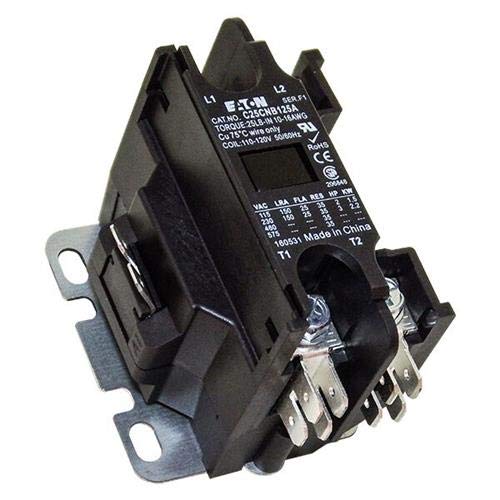

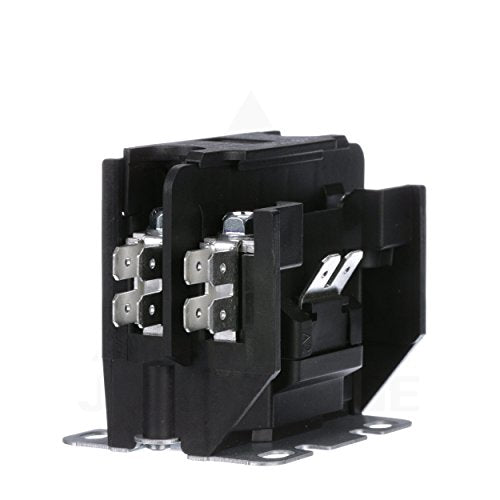

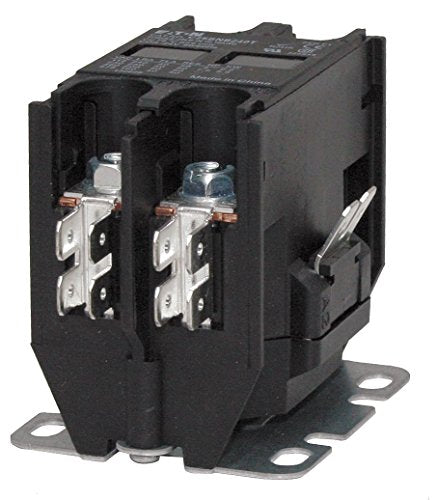

Compact Definite Purpose Magnetic Contactor - C25CNB125A

Condition: New
Brand: EATON CUTLER HAMMER
MPN: C25CNB125A
MPN Xref:C25CNB125A

This is a compact definite purpose magnetic contactor with a non-reversing action. It has a height of 3.19 inches, a width of 1.97 inches, and a depth of 2.32 inches. The contactor has a full load amps of 25A for inductive loads and 30A for resistive loads. It has 1 or 1+N poles and a coil voltage of 120V AC. The contactor is open with a metal mounting plate enclosure type and is suitable for use in electrical assemblies, panels, and EOEMs.

Height	3.19 in
Width	0 in
Depth	0.079 in
Full Load Amps-Inductive	25 A
Item	Definite Purpose Magnetic Contactor
Action	Non-Reversing
Full Load Amps-Resistive	30 A
Number of Poles	1
Coil Volts	120V AC
Reversing	No
HP @ 1 Phase - 120V	2 hp
HP @ 1 Phase - 230V	3
HP @ 1 Phase - 240V	3 hp
Enclosure NEMA Rating	No Enclosure
Enclosure Type	Open with metal mounting plate
Standards	CE, CSA, UL
Series	Compact
Hz	50/60
Includes	Binding Head Screw with Quick Connect Terminals, Metal Mounting Plate, Shunt
Product Type	Definite Purpose Magnetic Contactor
Weight	.5 Pound
Package Quantity	1
Part Number	C25CNB125A
Manufacturers	Cutler Hammer
Sub-Category	Contactor
Family	C25 Series
Type	C25
Phase	1
Poles	1
Voltage	600
Amperage	25
Coil Voltage Min	120
Coil Voltage Max	120
Poles (Closed)	1
Amps	25
Certification Listings	CSA, UL Recognized
Alternate Mfr Part Number	F1C25CNB125A
Approvals	UL Recognized ; CSA Certified
Coil Power	110-120 Vac, 50/60 Hz
Connection	Quick
Contact Current Rating	25 A
Control Voltage	120 V
Dimensions	50 x 59 x 81 mm
Enclosure Rating	Open with metal mounting plate
Horsepower Rating	3 HP
Horsepower, Motor, Max at 115 V	2
Horsepower, Motor, Max at 230 V	3
Length	3.19 in
Maximum Operating Temperature	70 C
Minimum Operating Temperature	-25 C
Mounting Type	DIN Rail Mount
Power Rating	1.5 kW
Primary Type	IEC Contactor
Special Features	Auxiliary Contacts
Temperature Operating Range	-25 to 70 C
Terminal Type	Box Lugs, Quick Connect
Terminals	Binding head screw and quick connect terminals (side-by-side)
Termination	Screw
UPC Code	786685116181
Catalog Number	C25CNB125A
Manufacturer	Eaton
Brand	Eaton
Country of Origin	China
Made in USA	No
Application	Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Standard	CSA Certified,UL Recognized,RoHS Compliant
UPC	786685116181
Item Type	Definite purpose contactor
