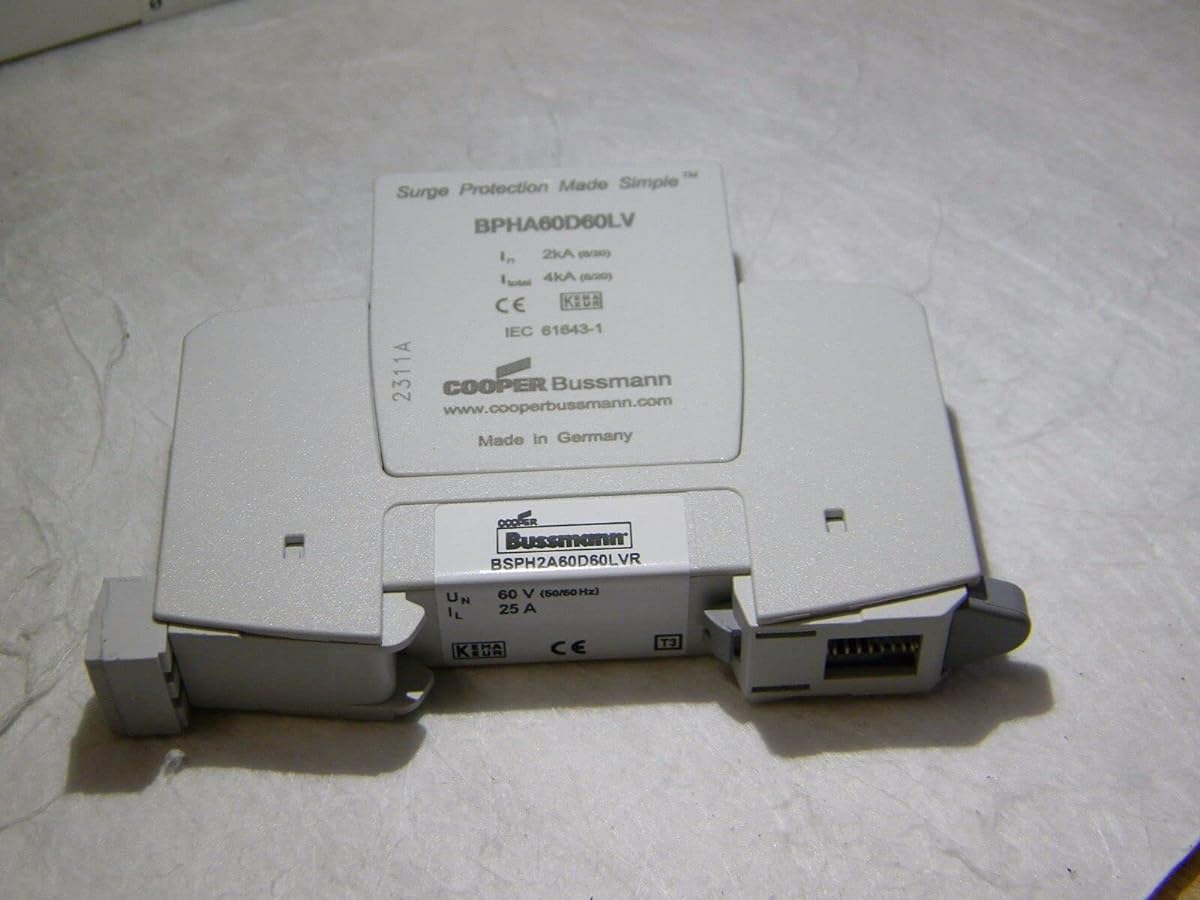

Surge Protection Device - BSPH2A60D60LVR
Surge Protection Device - BSPH2A60D60LVR
Regular price
$38.58 USD
Regular price
Sale price
$38.58 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Condition: New
Brand: Eaton/Bussmann Series
MPN: BSPH2A60D60LVR
MPN Xref:BSPH2A60D60LVR
This surge protection device is designed to protect against power surges and provide reliable surge suppression. It has a maximum surge capacity of 4 K Amps and a nominal discharge current of 2 K Amps. It is UL Type 3 rated and can be mounted on a DIN rail. The device also features a replaceable element and an auxiliary contact.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Eaton/Bussmann Series
MPN: BSPH2A60D60LVR
MPN Xref:BSPH2A60D60LVR
This surge protection device is designed to protect against power surges and provide reliable surge suppression. It has a maximum surge capacity of 4 K Amps and a nominal discharge current of 2 K Amps. It is UL Type 3 rated and can be mounted on a DIN rail. The device also features a replaceable element and an auxiliary contact.
| Item Number: | BSPH2A60D60LVR |
| UPC: | 051712358460 |
| Brand: | Bussmann |
| Item Category: | Surge Protective Devices (SPDs) |
| Series: | BSP LV Power 2-Pole |
| Line Voltage: | 60 VAC 1P |
| Surge Capacity: | 4 K Amps |
| Nom. Discharge Current: | 2 K Amps |
| UL Type: | 3 |
| Mounting: | DIN Rail |
| Replaceable Element: | Yes |
| Auxiliary Contact: | Yes |
| End of Life Indicator: | Yes |
| IP Rating: | IP20 |
| Approvals: | UR;cUR;CSA;CE |
| RoHS: | Yes |
| Item | Surge Protection Device |
| Phase | 1 |
| Voltage | 60VAC/DC |
| Max. Continuing Operating Voltage | 75 V AC/DC |
| Voltage Protection Rating | 400V (L-N), 730V (L-G) |
| Nominal Discharge Current | 2kA |
| Modes of Protection | L-N, N-G |
| Filtering / Nonfiltering | Nonfiltering |
| Modular / Nonmodular | Modular |
| IP Rating | 20 |
| Number of Poles | 2 kA |
| Mounting Style | DIN Rail |
| Standards | UL 1449 3rd Edition, IEC 61643-1, cUL, CSA, KEMA |
| Max. Surge Current Per Phase | 2kA |
| Depth | 2.56" |
| Max. Surge Current Per Mode | 4kA |
| Enclosure Material | Thermoplastic |
| Wire Gauge | 18 to 12 AWG |
| Width | 0.71" |
| Number of Wires | 6 |
| Length | 3.93" |
| Max. Surge Current per Phase | 2kA |
| Max. Surge Current per Mode | 4kA |
| Filtering | No |
| Modular | Yes |
| Country of Origin (subject to change) | Germany |
| Category | Circuit Protection |
| Mfr | Eaton - Bussmann Electrical Division |
| Series | Bulk |
| Package | Active |
| Part Status | Type 3 |
| Type | Base + Module |
| Form | 75VAC |
| Voltage - Continuous Operating (Max) (MCOV) | -40?C ~ 80?C |
| Operating Temperature | Remote Signaling Contacts |
| Features | DIN Rail |
| Mounting Type | CE, KEMA-KEUR |
| Approval Agency | 2 |
| Current - Discharge (Nom) (8/20?S) | 4 kA |
| Current - Discharge (Max) (8/20?S) | 6 kA |
| Current - Short Circuit Rating (SCRR) | 730 V |
