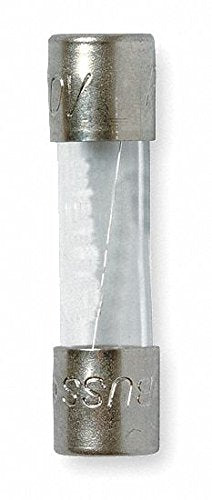

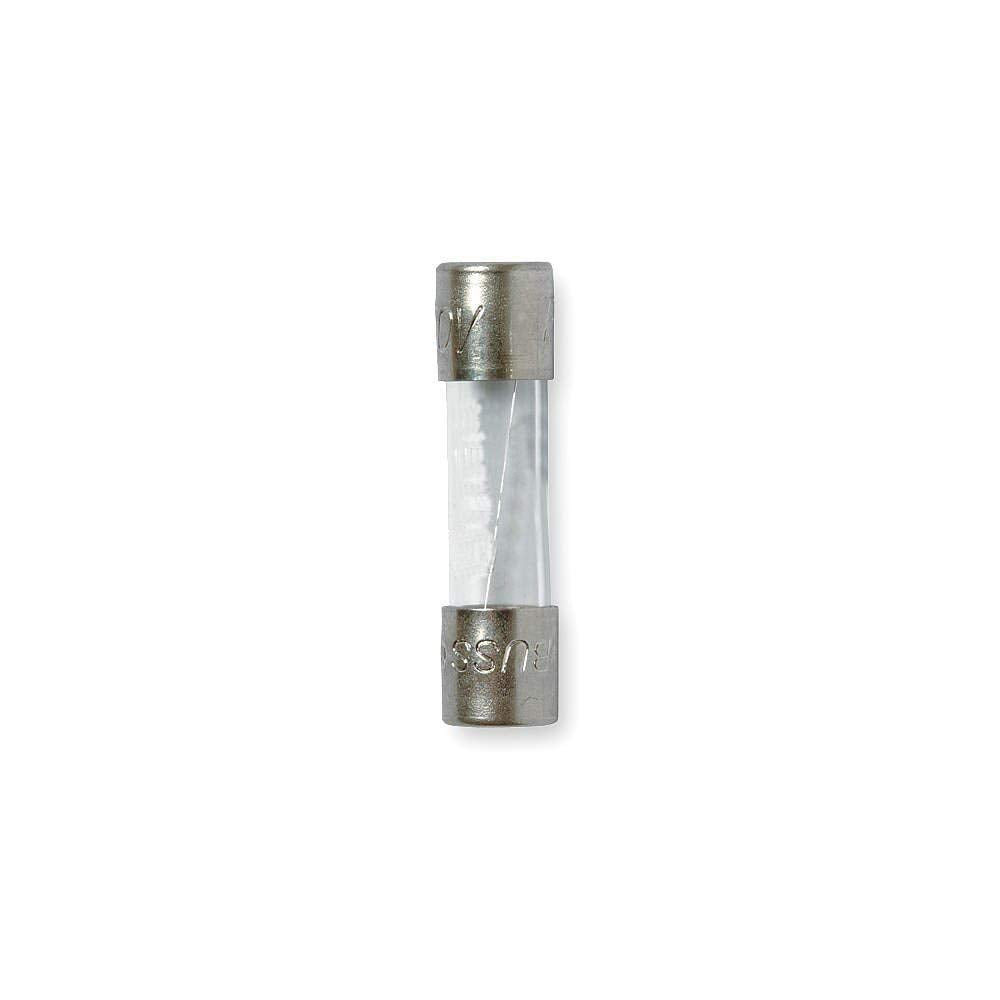

This quick blow fuse has a breaking capacity of 40A and a current rating of 4A. It is a cylindrical fuse with a size of 5x20mm and breaking characteristics of 1.5I. The contact material is brass and it is part of the S500 series by the manufacturer. It has an energy I2t of 22A and a resistance of 21m?. The fuse comes in a bag package and has nickel plated contact plating with a voltage drop of 130mV.
Type of fuse
fuse
Fuse characteristics
quick blow
Breaking capacity
40A
Current rating
4A
Rated voltage
250V AC
Kind of fuse
cylindrical,
Fuse size
5x20mm
Breaking characteristics
1.5I
Contact material
brass
Manufacturer series
S500
Energy I2t
22A
Resistance
21m?
Kind of package
bag
Contact plating
nickel plated
Voltage drop
130mV
